Arrowed Lines

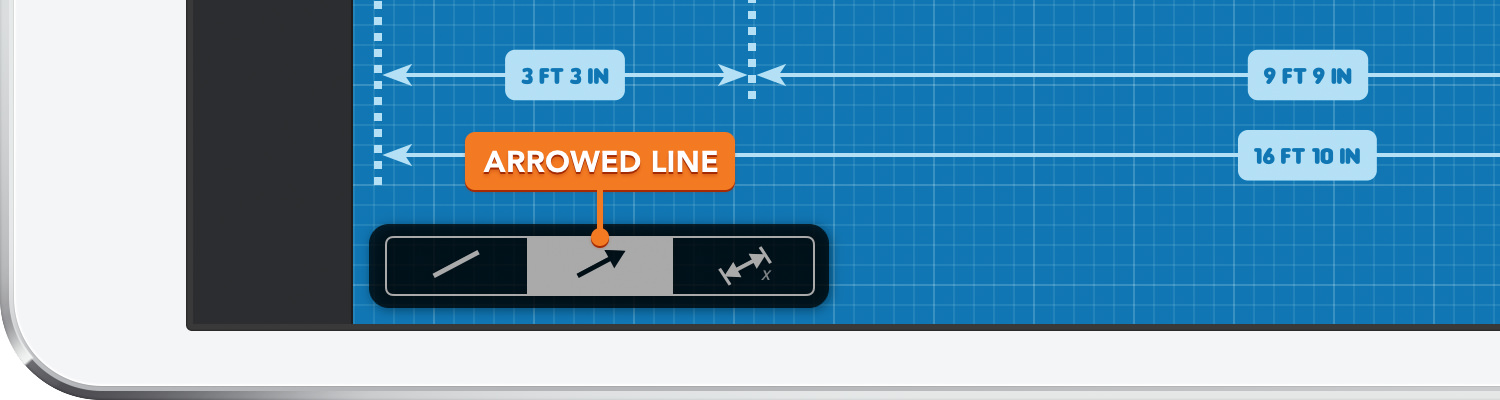

Arrowed lines can be created using the Arrowed Line mode of the Line tool. Tap and drag to create an arrowed line segment.

Tap and drag to begin drawing an arrowed line, and then tap and hold with a second finger to easily create horizontal, vertical or 45° arrowed lines.

The line endings and the line dash styles for created lines can be customized using the Stroke pane from the Appearance panel. When creating lines with the Arrowed Line mode, the previously selected line endings will be used.
