Stylizing Labels

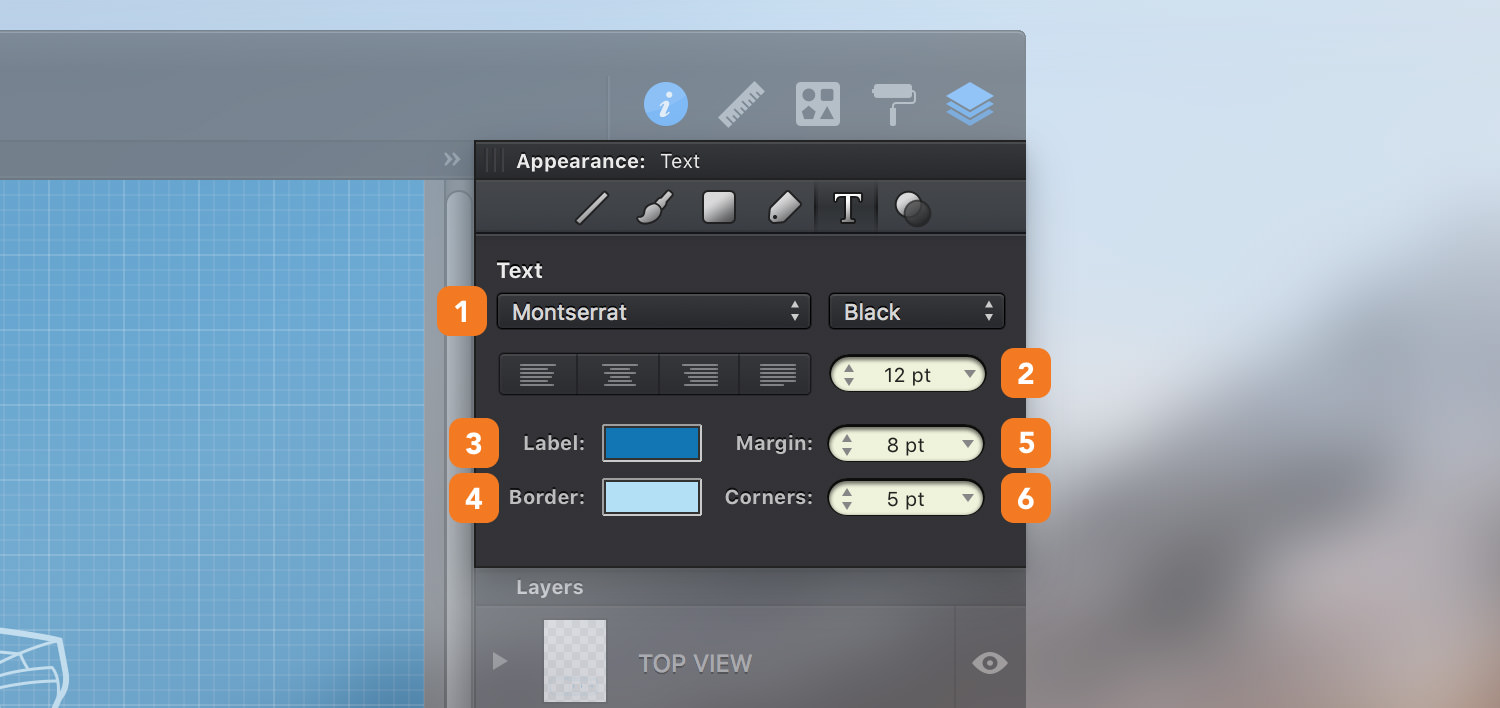

A label’s text font, size and style can be changed using the Text pane from the Appearance panel.

1. Font - Choose the font to be used for your label. Also, pick a style if the font allows it.

2. Font Size - Set the font size to be used for the label.



3. Label - Choose the text color.

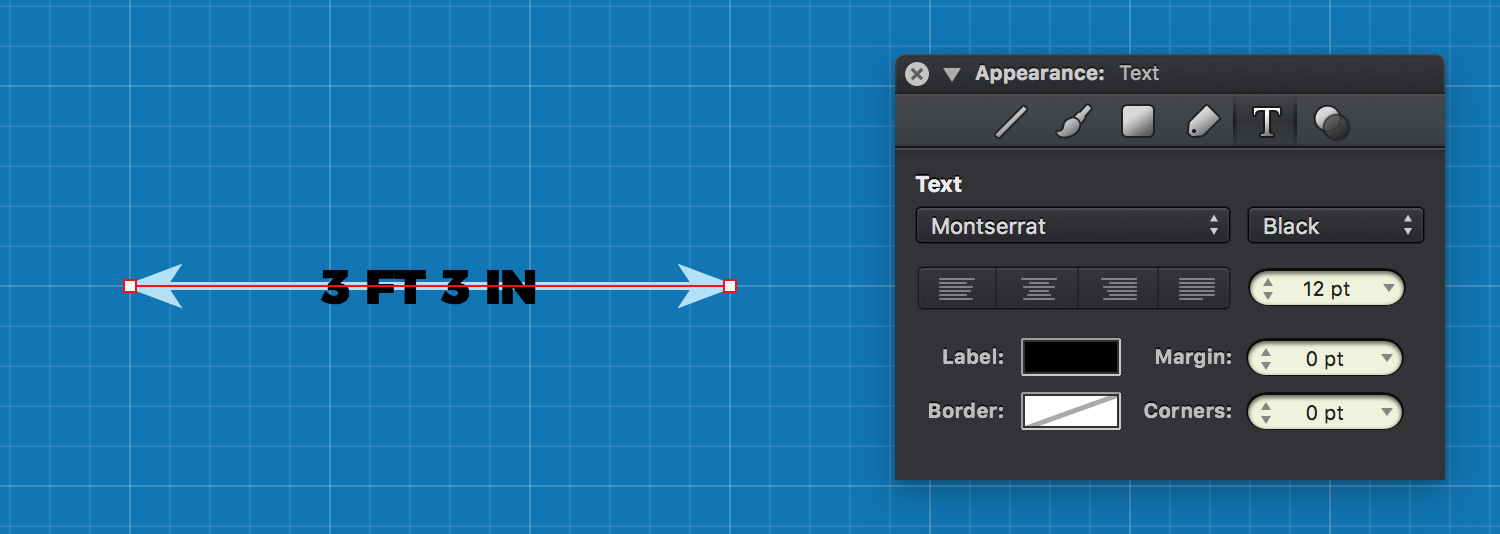

4. Border - Set the color for the background. Set the color to none to make it invisible.

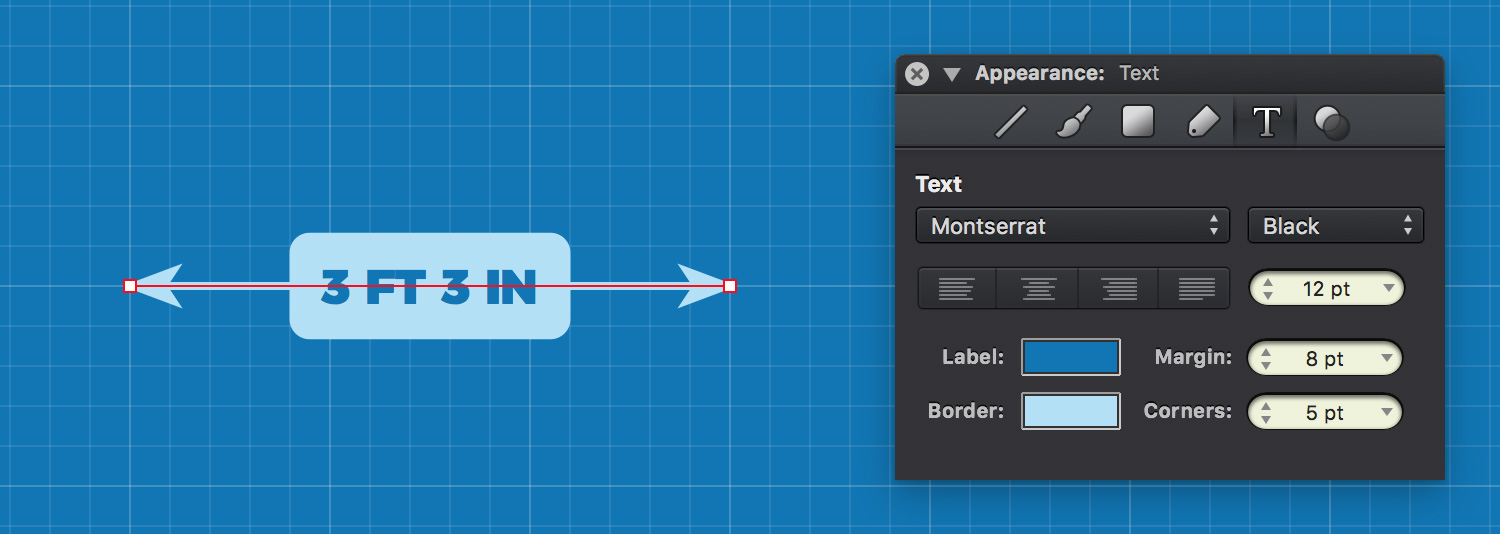

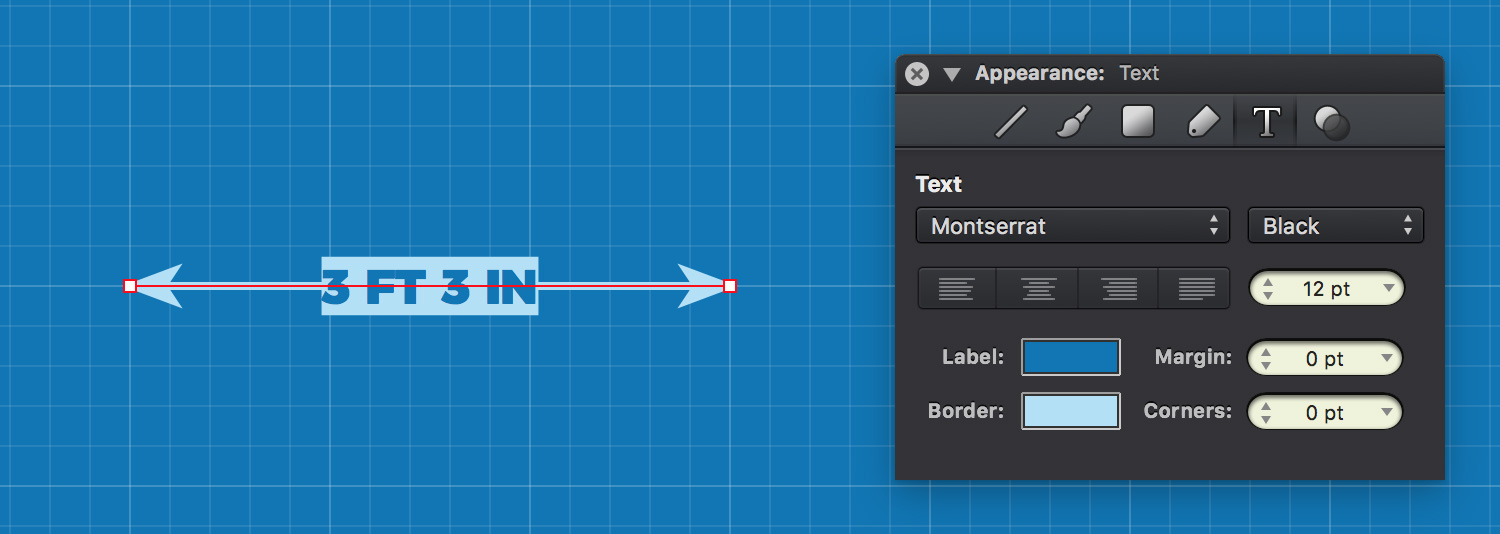

5. Margin - The margin setting adjusts the size of the box bordering the text, adding space between the text and edges.

6. Corners - Determines the roundness of the text box. Set this to 0 pt if you wish to turn the background into a simple rectangle.
