Custom Labels

A few special variables can be used to create custom text labels that include dimension values. For example, if you wish to show both the width and height of a rectangle in one label, use the string: %width% x %height%.

Use the following four variables in custom text labels to show dimension values for your object: %length%, %width%, %height% or %area%.

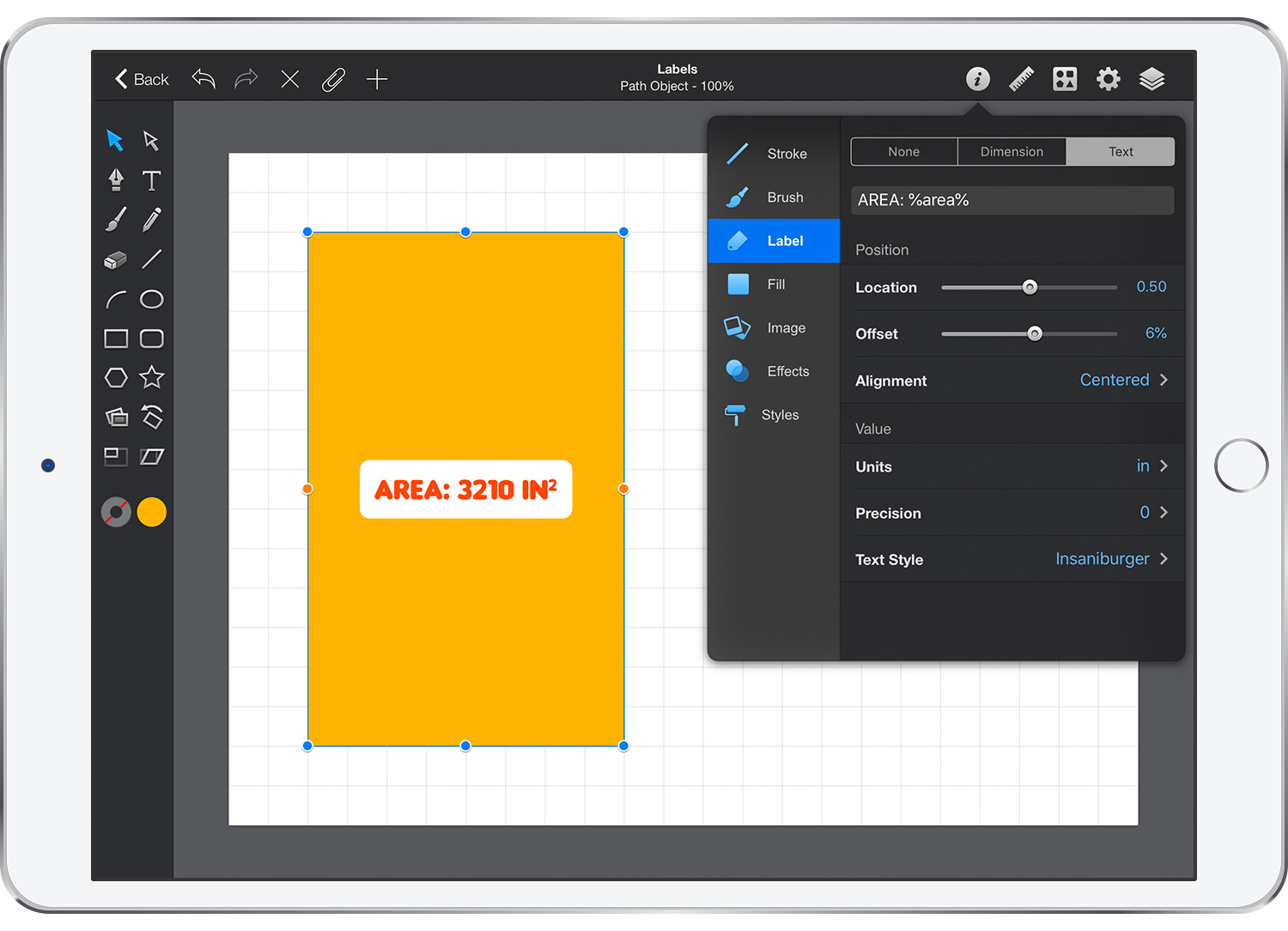

Tip: Variables can be combined with simple text: AREA: %area%.
