Color Picker

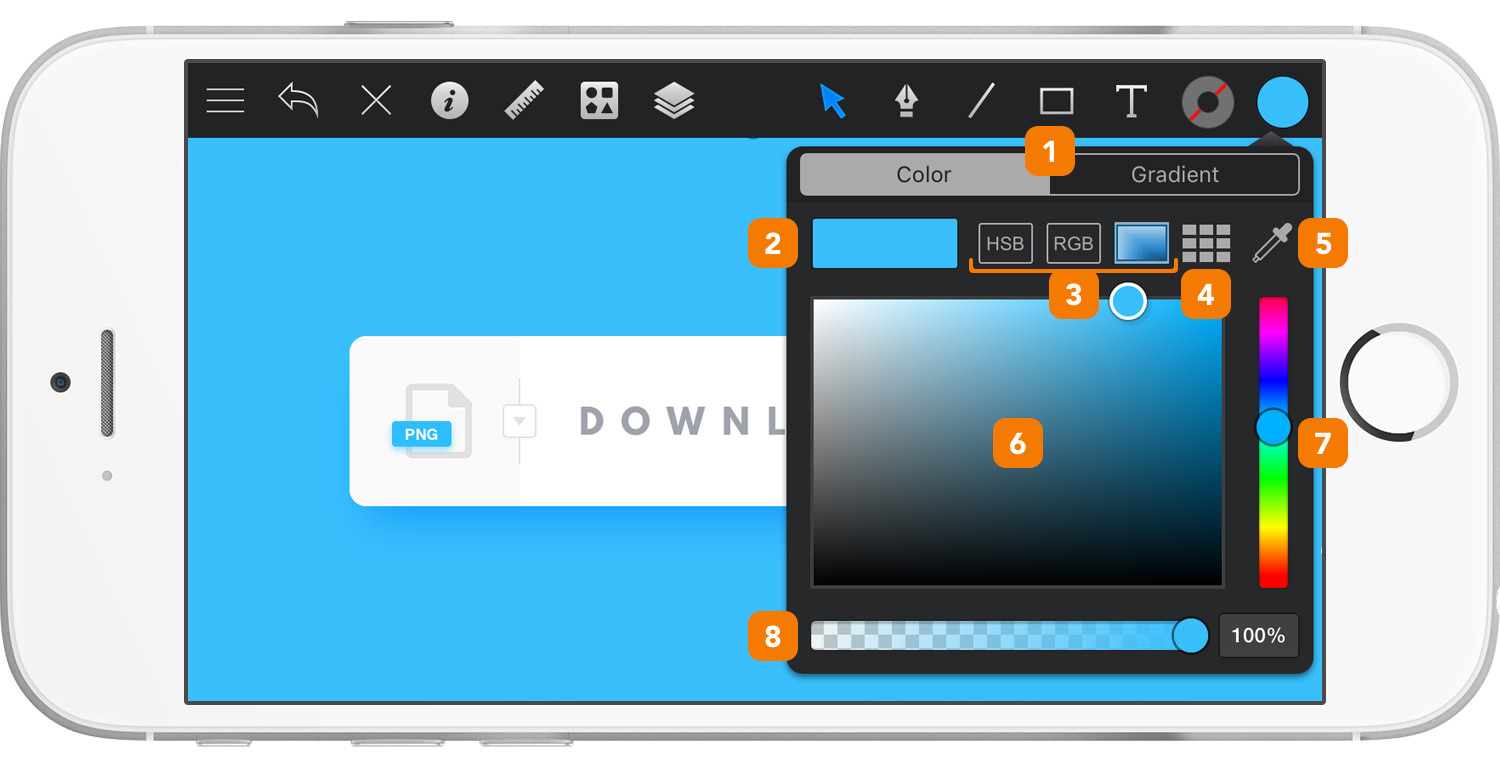

Tap the Fill color well from your Toolbar to open the Color panel. Use the Color picker to select a custom color. Colors can be selected using three different color picker interfaces: HSB sliders, RGB sliders and Color Spectrum.

  1. Tab Menu - Easily navigate between the Color and Gradient panels.
    It only shows up when you tap the Fill color well, as gradients can't be applied on a Stroke.

  2. Color - A simple thumbnail showing the current color.

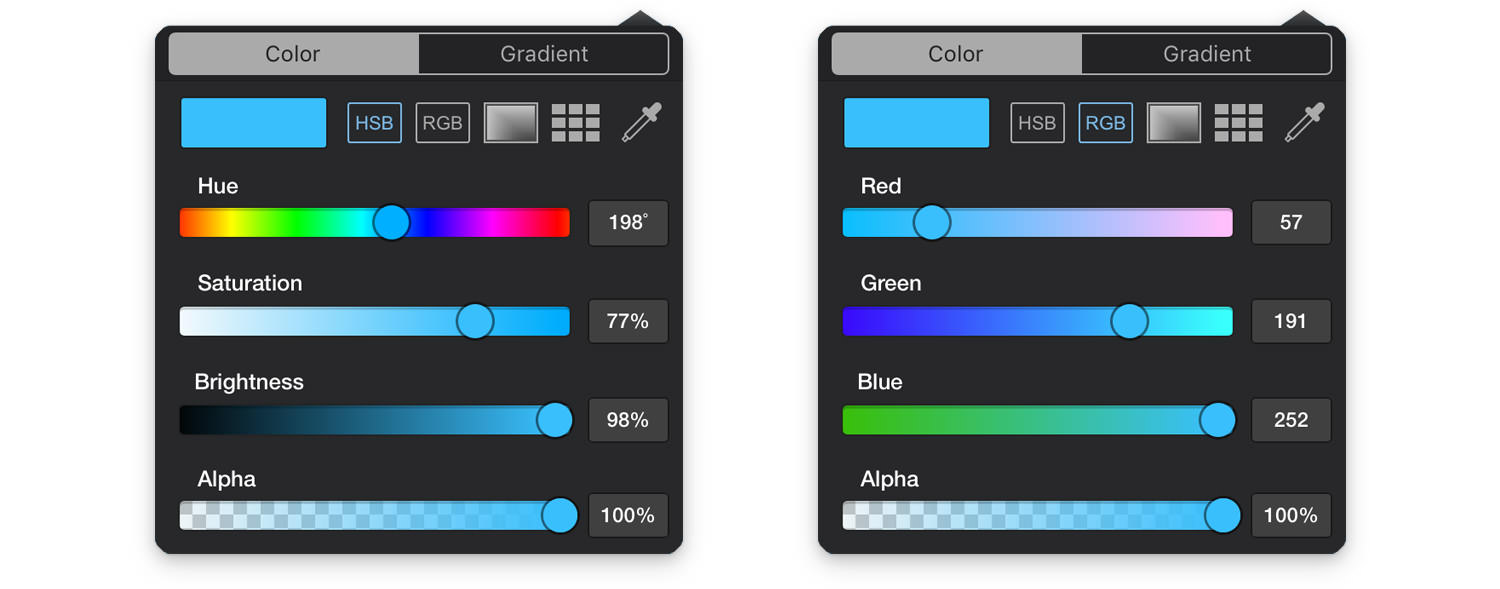

  3. Interfaces - Toggle between the three color picker interfaces: HSB sliders, RGB sliders and Color Spectrum. The HSB and RGB sliders give you the possibility to choose a new color using their specific color codes.

  4. Color Palette - Switch from one of the Color picker interfaces to the Color palette.

  5. Eyedropper Tool - Use it to select a color by picking the color of any pixel on the screen. Tap it and you’ll get a cross icon surrounded by a circle where you can see the currently selected color which will allow you to easily pick the desired color.

  6. Color Field - Drag the circle inside the Color Field to select the desired shade of the color.

  7. Color Bar - Drag the slider or simply tap on the Color Bar to select a hue.

  8. Alpha - Drag the slider or use the input field to set the transparency of the color. Setting Alpha to 0% will make the color invisible.
