Create a Login Widget

In the following tutorial you will learn how to create a login widget in Graphic for iPhone.

For starters you will learn how to setup a simple grid and how to create two, tiny icons using basic vector shape building techniques along with the Snap to Grid feature. Moving on, you will learn to create the main shapes and how to stylize them using the Effects pane.

Finally, you will learn how to add some simple text and how to stylize it.

Step 1

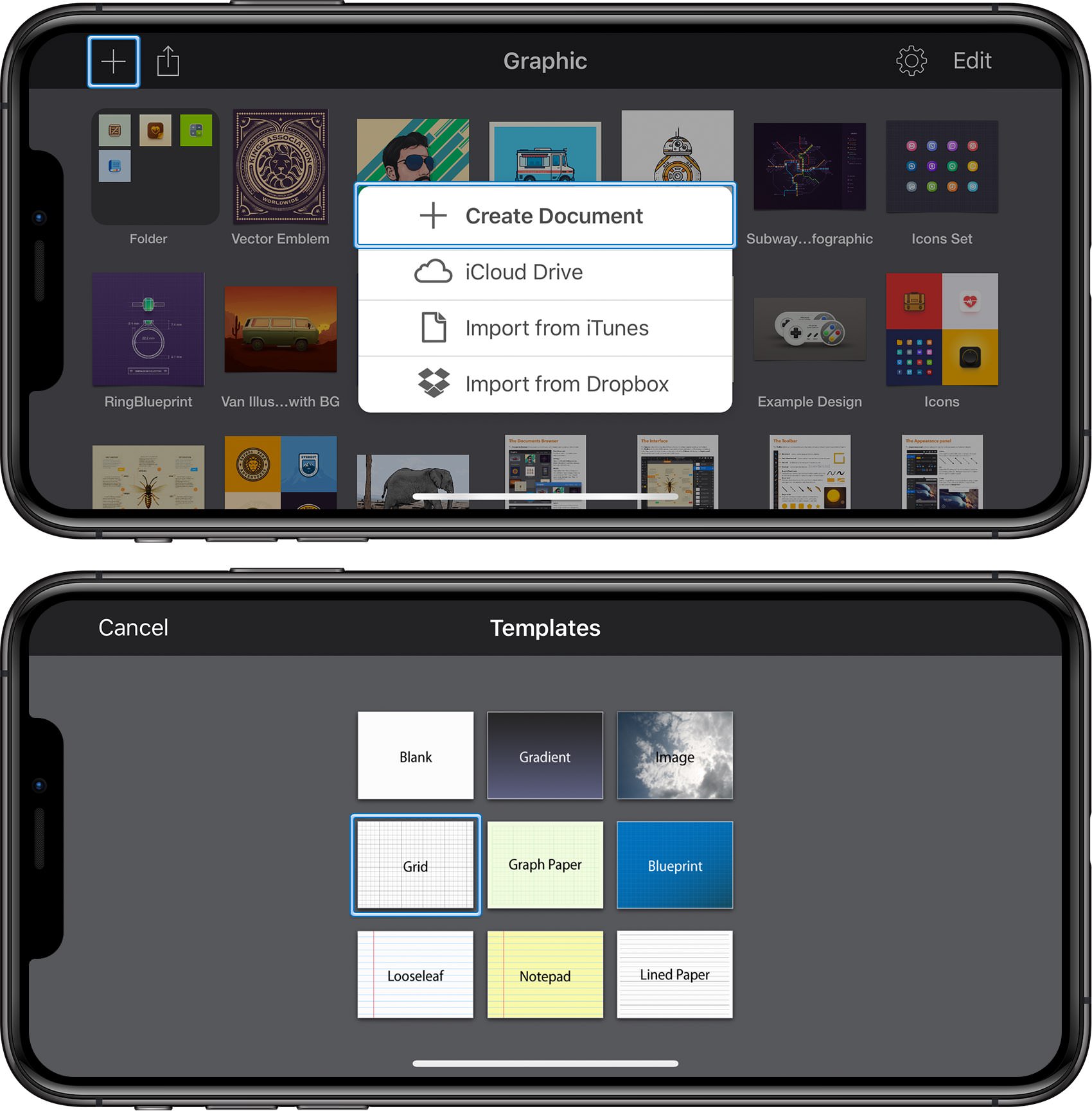

Start by tapping the plus button from the top-left corner of your screen to create a new document. Tap the Create Document button and then choose the Grid document style.

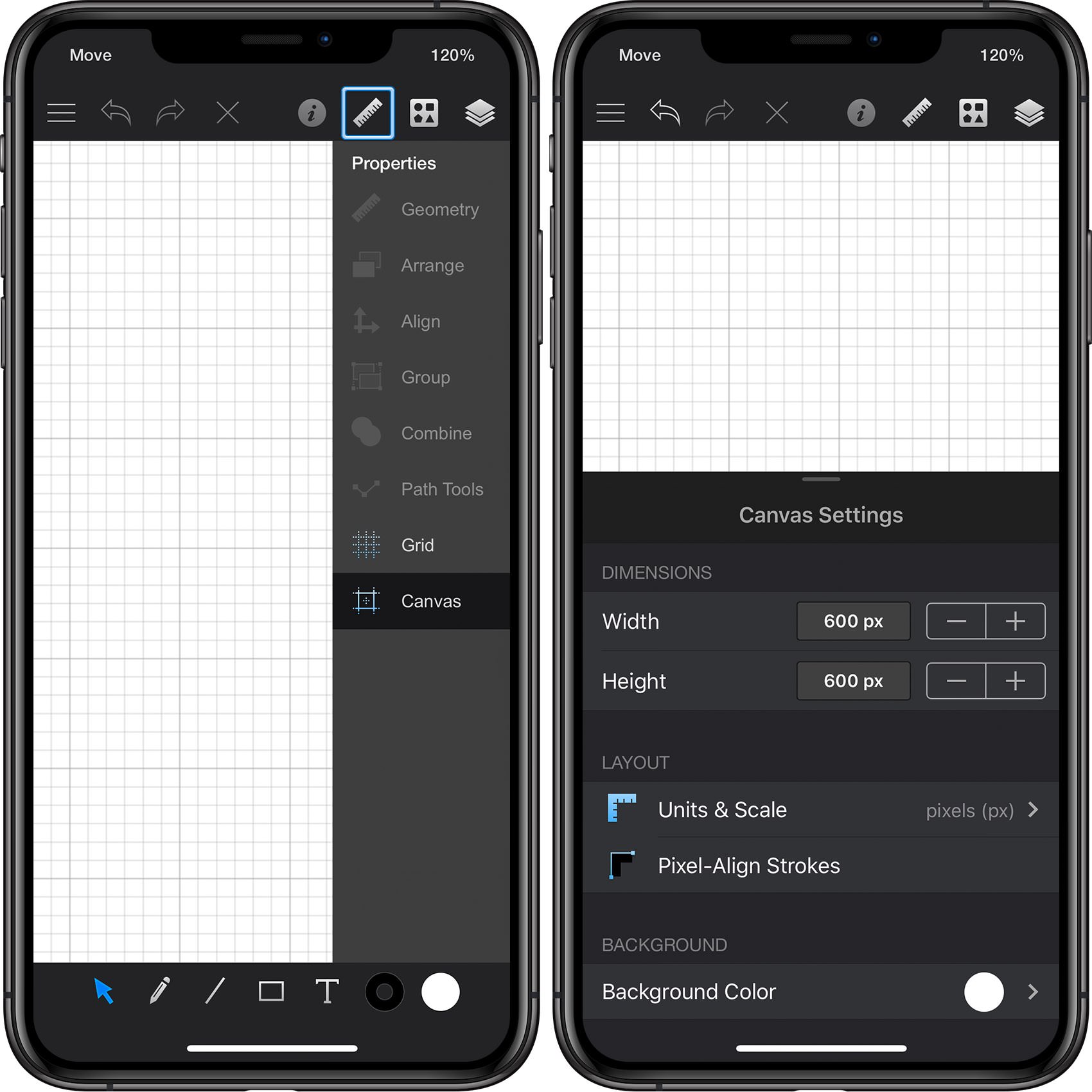

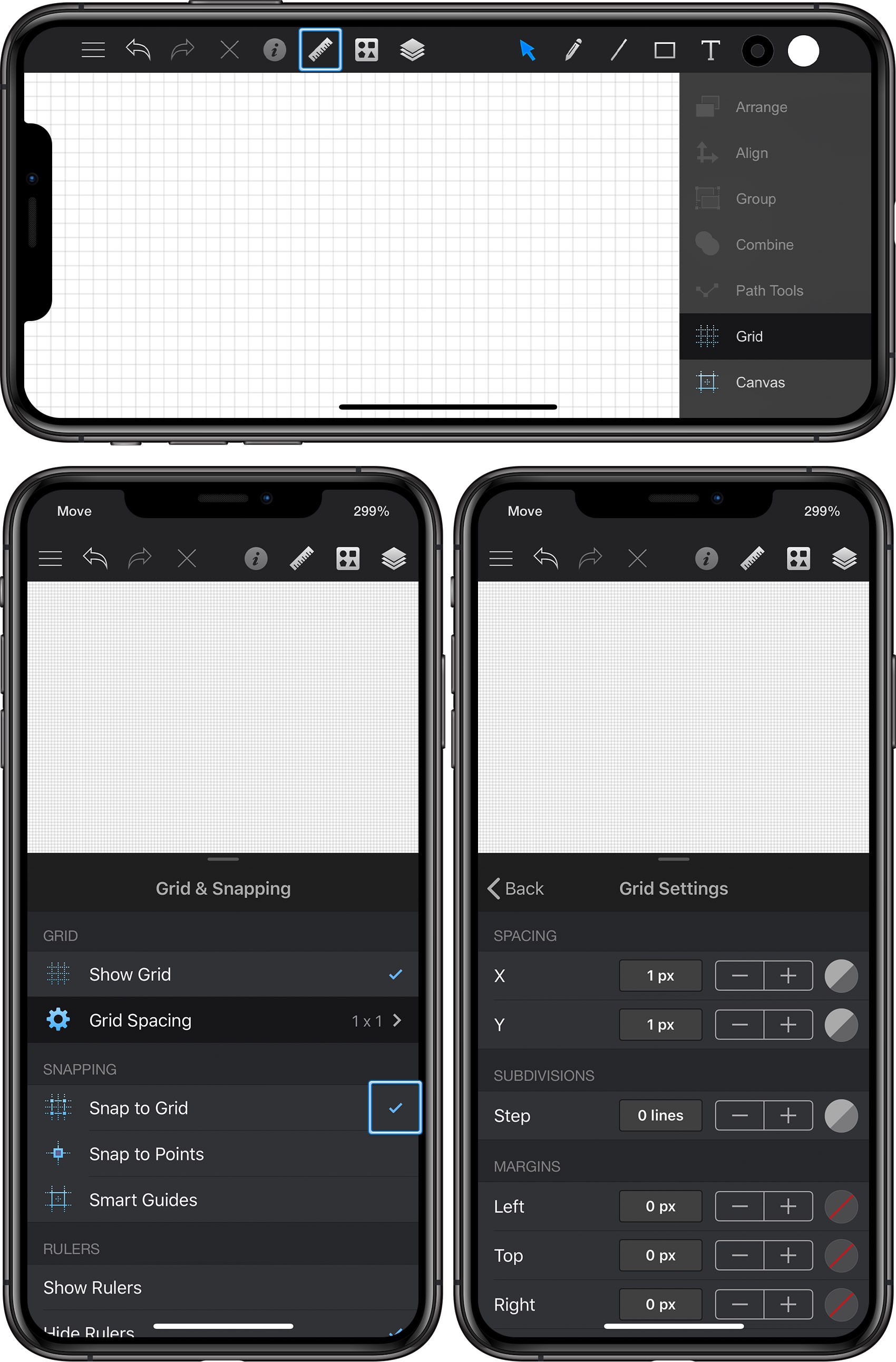

Focus on the right side of the Titlebar, tap that ruler icon to open the Properties panel and then tap the Canvas pane. Set both Width and Height to 600 px, select Pixels for the base unit, and be sure that the Pixel-Align Strokes feature is disabled. When this setting is enabled, stroked objects are offset slightly to ensure that the stroke is drawn aligned to the pixel grid which guarantees a crisp look.

Re-open the Properties panel and this time tap the Grid pane. Make sure that the Snap to Grid feature is enabled and keep in mind that this is where you should come whenever you wish to enable or disable the grid or the Snap to Grid. Finally, open the Grid Settings pane, enter 1 px in both Spacing boxes and 0 lines in the Subdivisions box.

Step 2

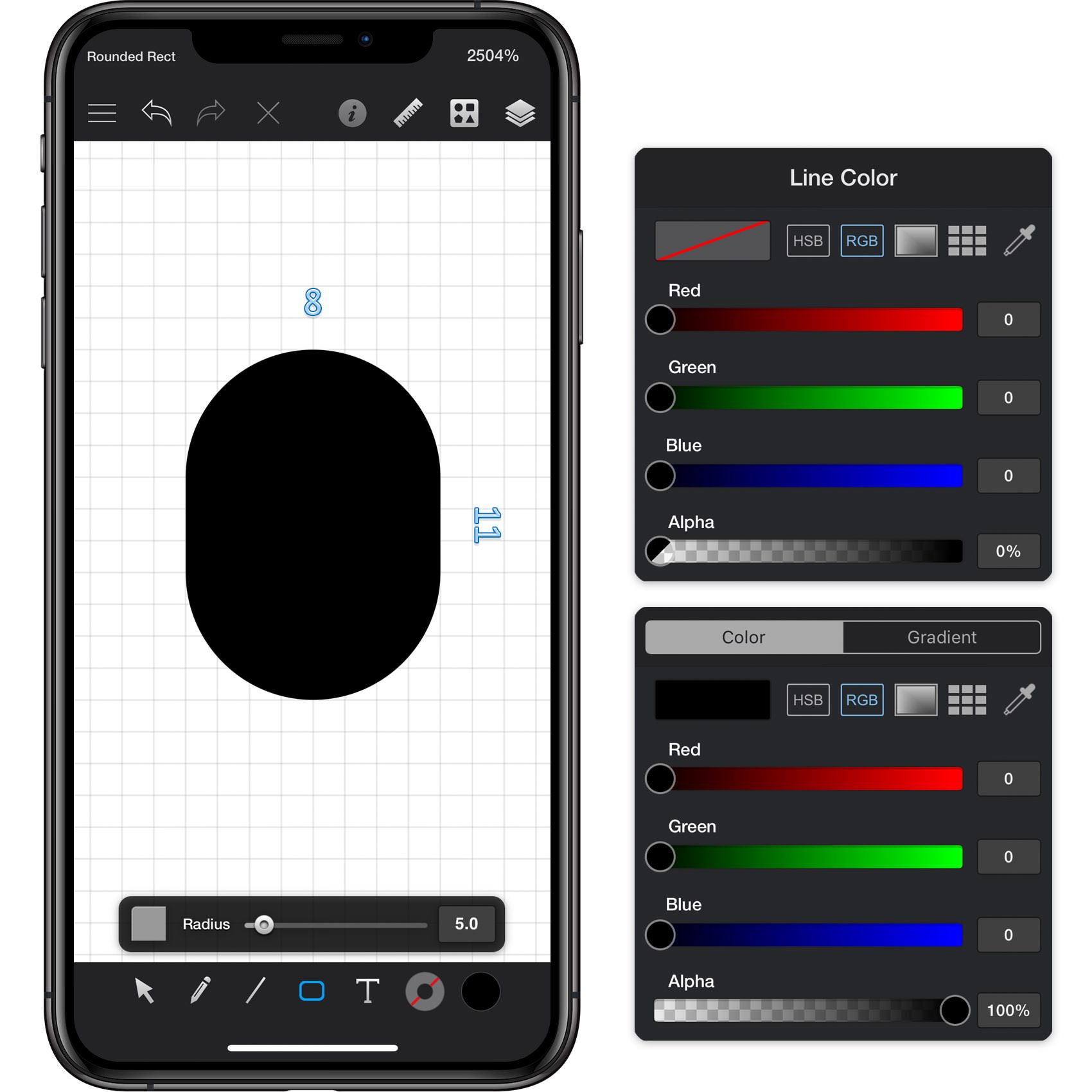

Focus on the Toolbar and notice that by default the Fill color is set to white while the Line color is set to black. Tap the Fill color well and set its color to black (R=0 G=0 B=0) and then tap the Line color well. Drag the Alpha slider to 0% and this will simply make your line invisible.

Pick the Rounded Rectangle Tool, focus on the newly opened tool pane and drag the Radius slider to 5. Move to yor canvas and simply create an 8 x 11 px shape - the grid and the Snap to Grid feature will ease your work.

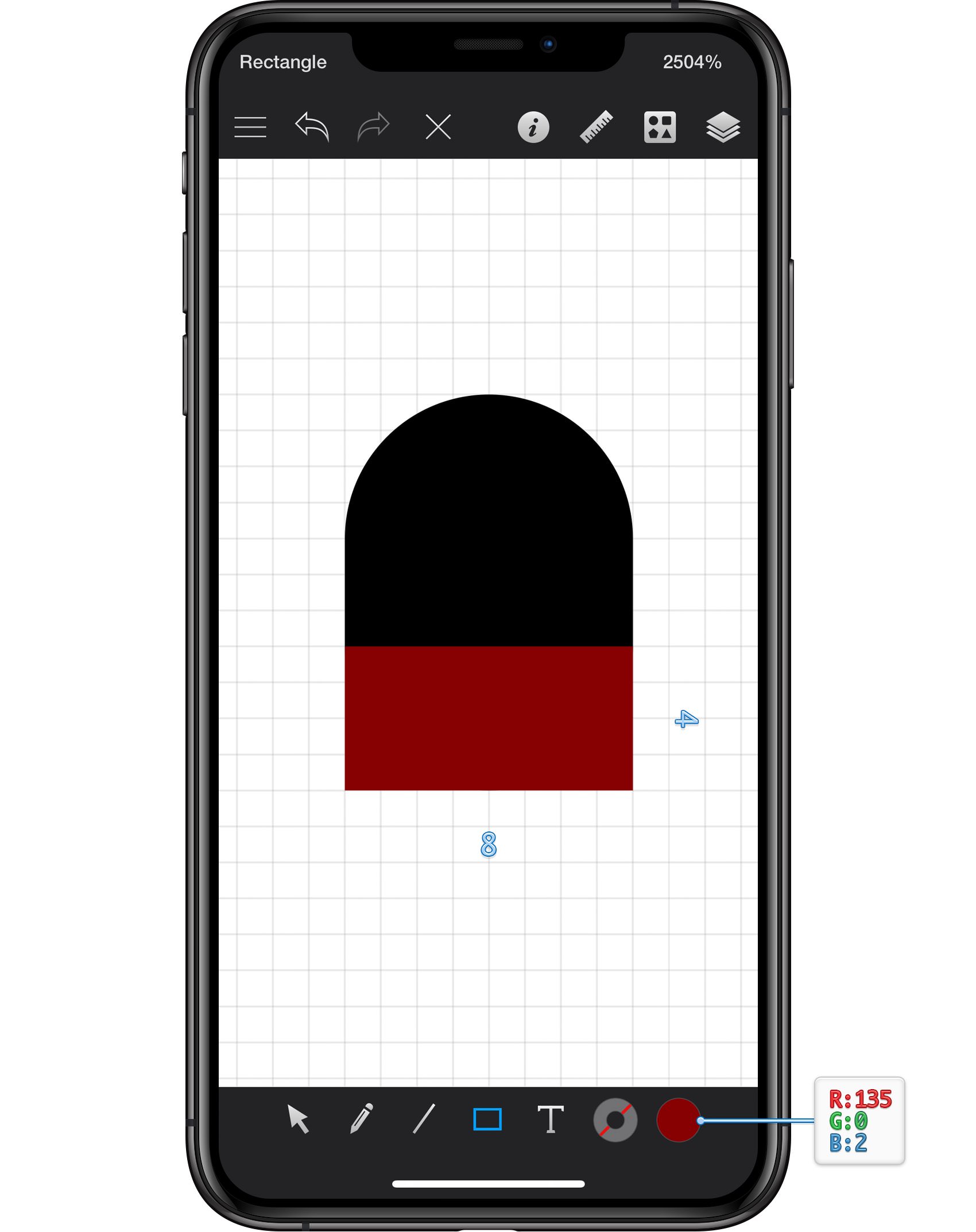

Return to your Toolbar and replace the existing Fill color with R=135 G=0 B=2. Pick the Rectangle Tool, create an 8 x 4 px shape and place it exactly as shown in the following image.

Step 3

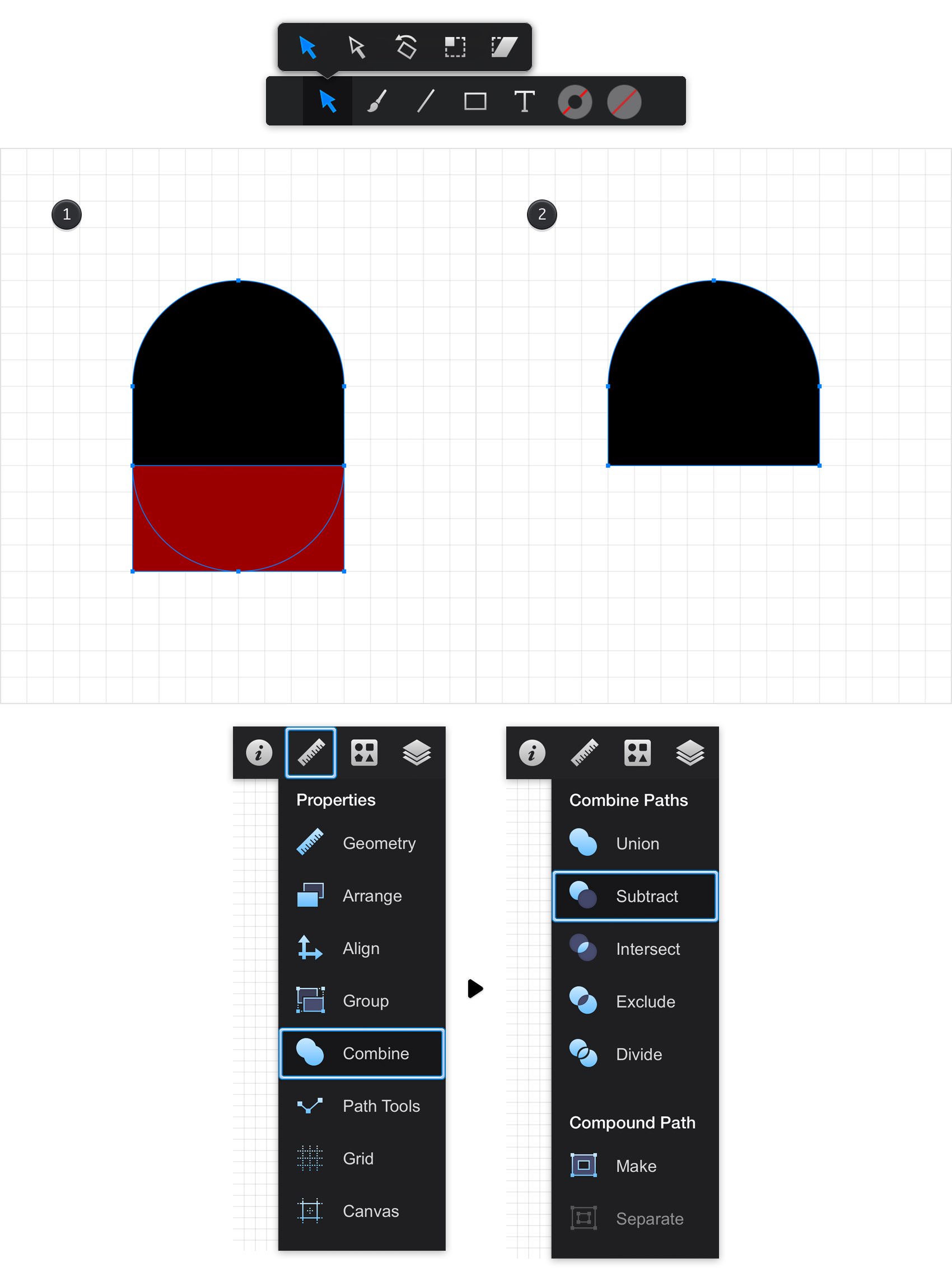

Using the Move Tool, selct both shapes made so far, open the Combine pane from the Properties panel and tap that Subtract button.

Step 4

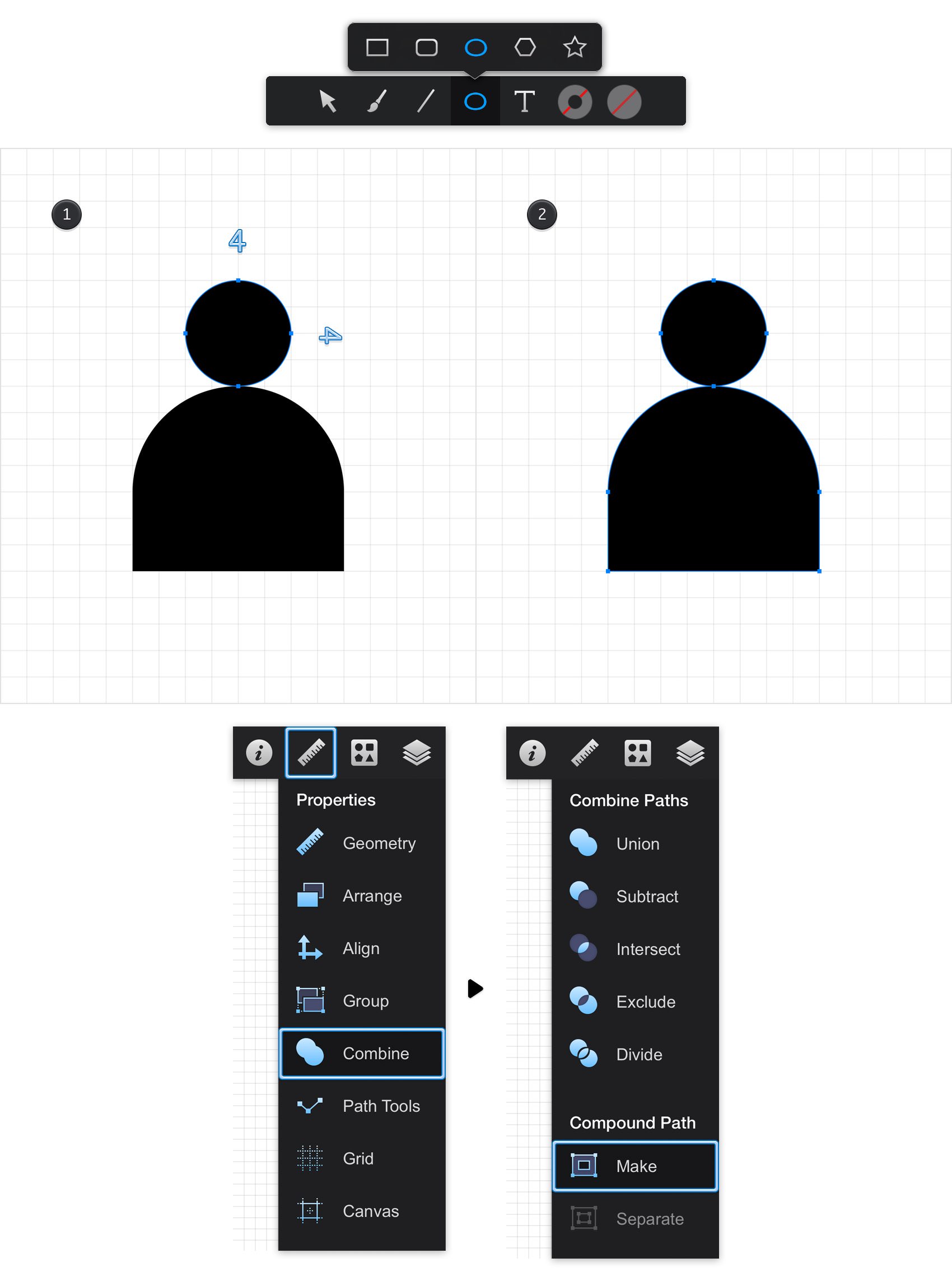

Return to your Toolbar, set the Fill color to black and pick the Ellipse Tool. Create a 4 px circle and place it as shown in the first image.

Select both shapes made so far, return to the Combine pane and tap the Make button.

Step 5

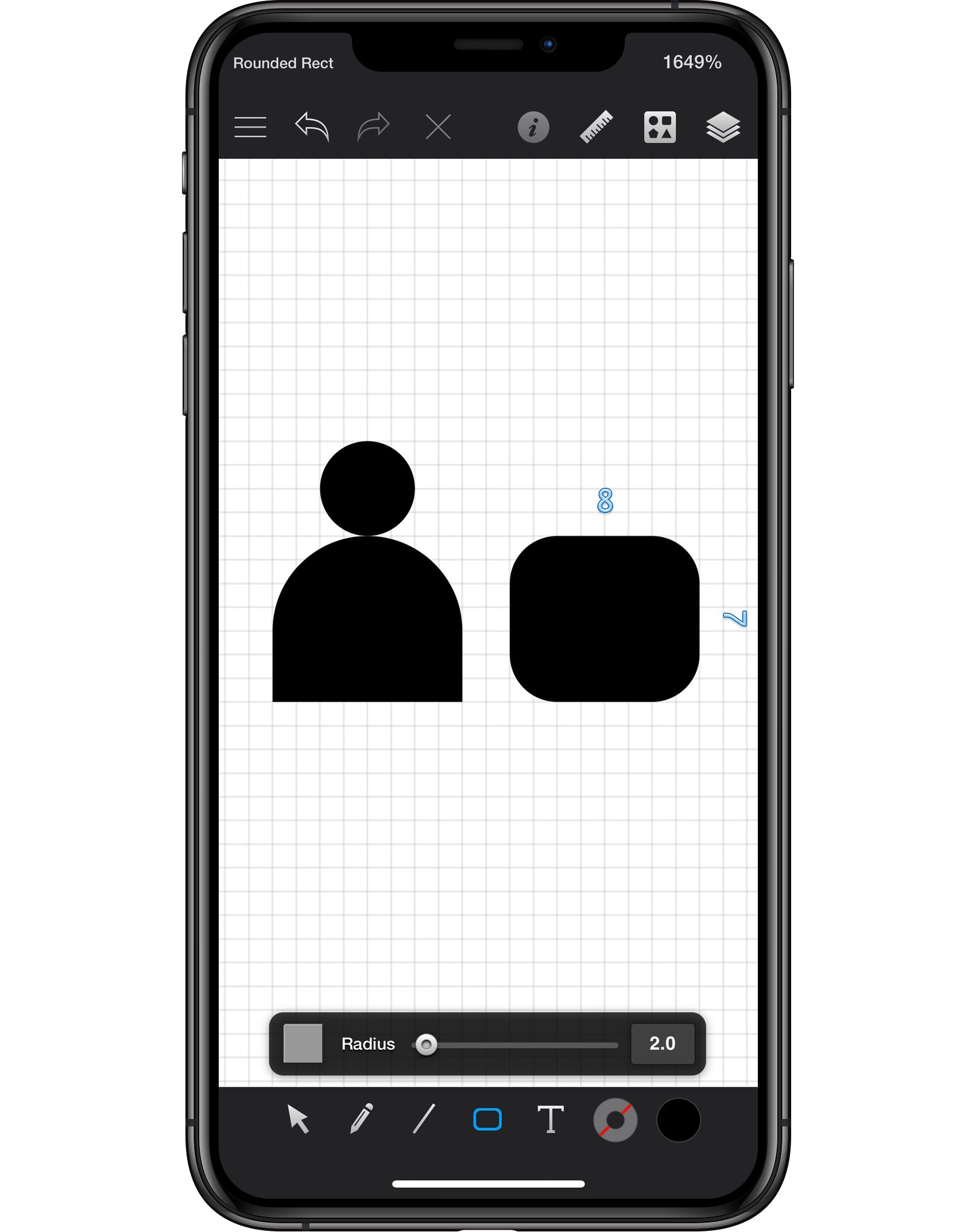

Pick the Rounded Rectangle Tool, set the Radius to 2 and create an 8 x 7 px shape.

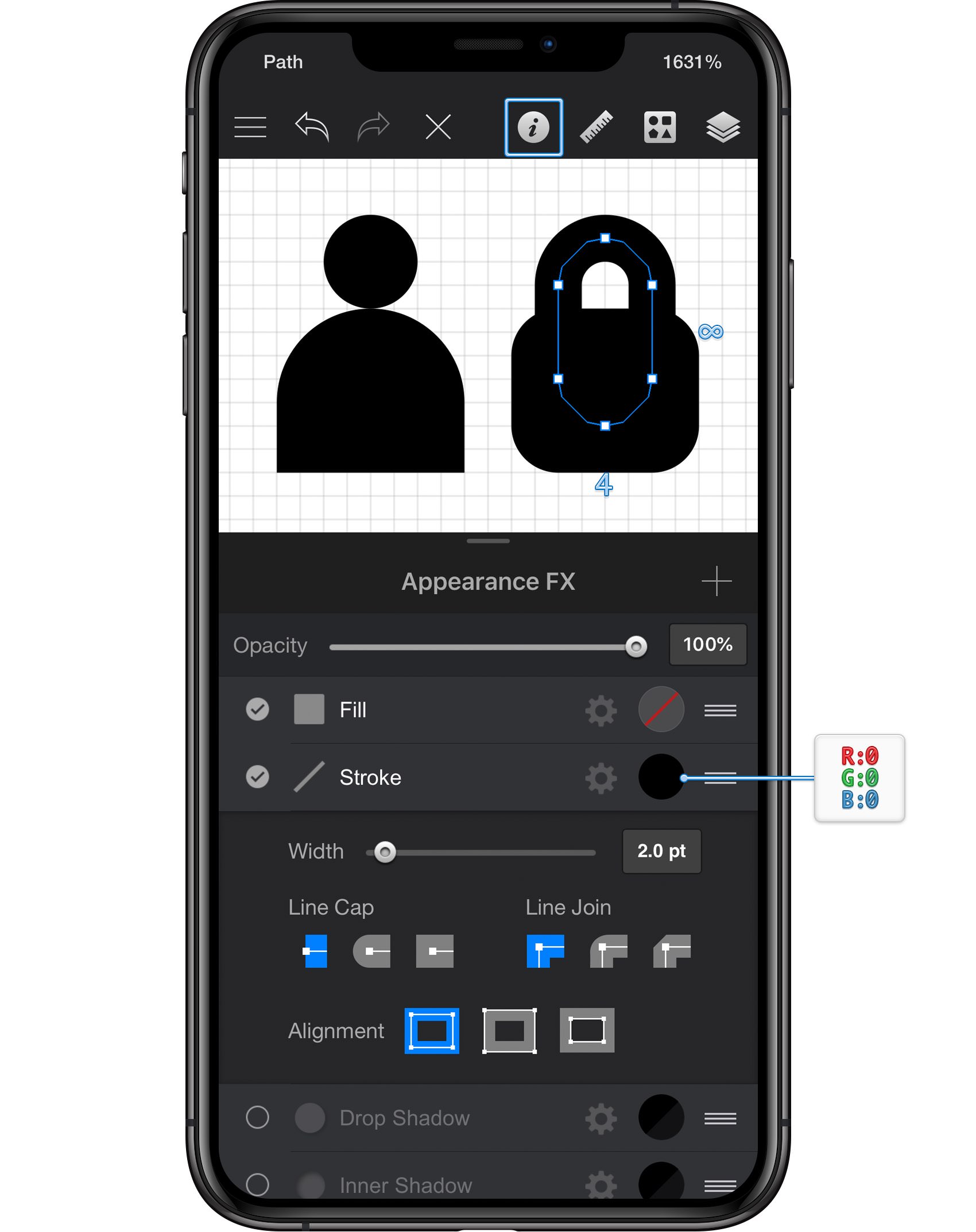

Using the same tool, create a 4 x 8 px shape and place it as shown in the following image. Make sure that this new rounded rectangle stays selected, focus on the right side of your Titlebar and tap the leftmost icon to open the Appearance panel.

Go to the Effects pane, tap the Fill color well and drag them Alpha slider to 0%. Move to the Stroke, drag that Width slider to 2 pt and then tap the color well that stands for your Stroke. Make sure that the color is set to black and drag the Alpha slider to 100%.

Step 6

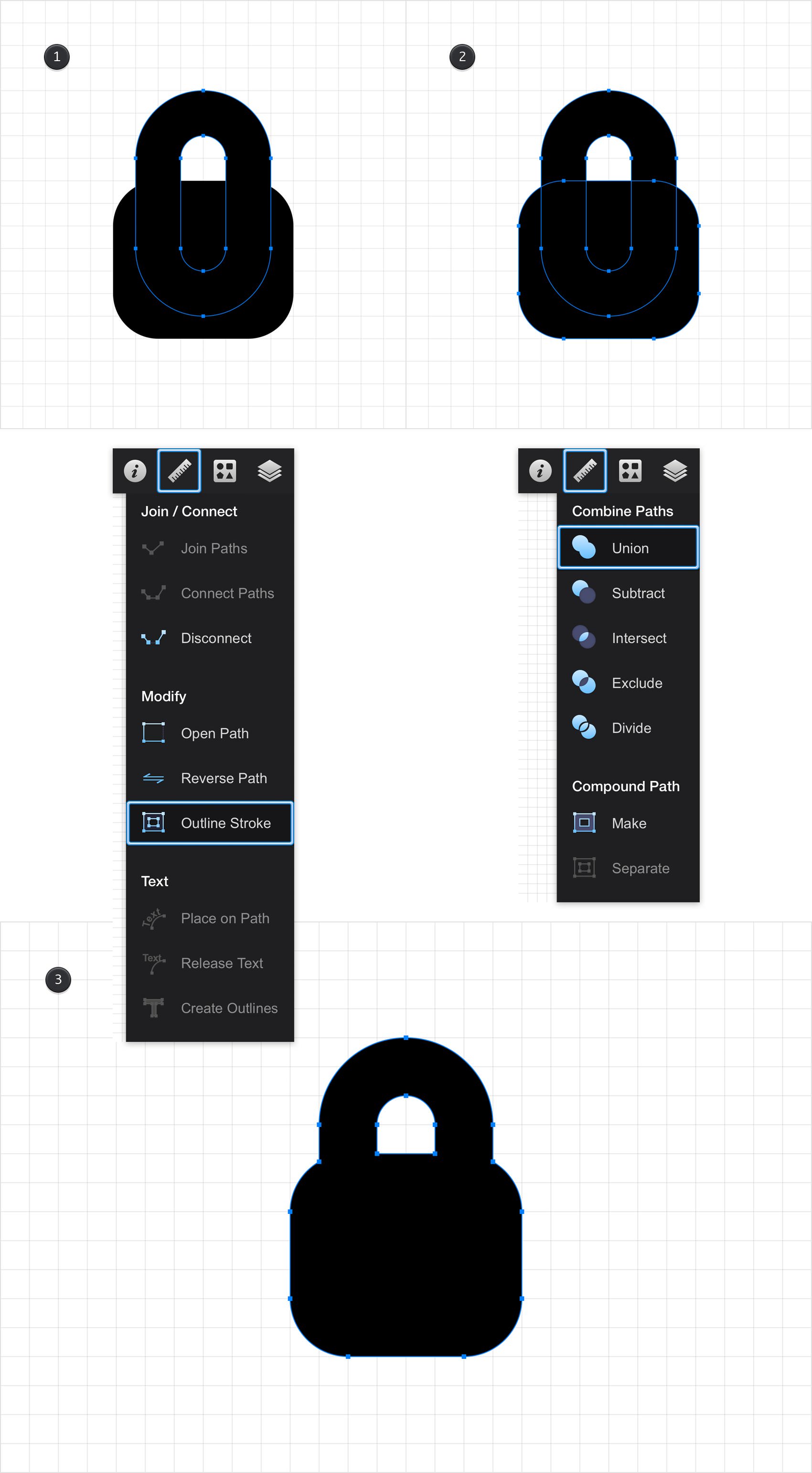

Reselect the rounded rectangle with the stroke and open the Properties panel. Go to the Path Tools pane and tap the Outline Stroke command.

Select the resulting shape along with the rounded rectangle that lies behind it and tap the Union button from the Combine pane.

Step 7

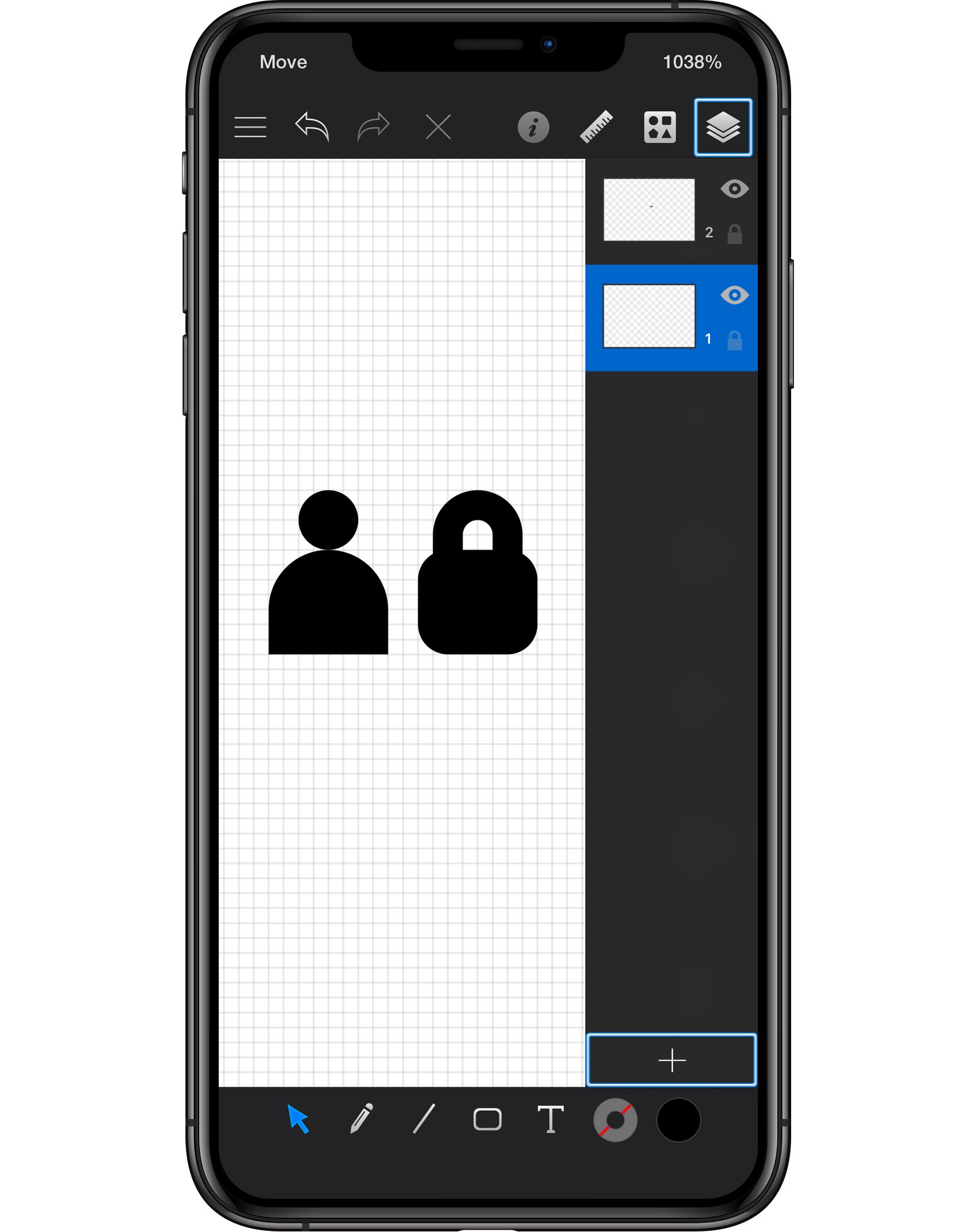

Focus on the right side of your titlebar and simply tap the rightmost icon to open the Layers pane. First, tap the eye icon that stands for the existing layer to make it invisible. Next, tap that plus button from the bottom of the panel to add a new layer. Select it and drag it below your invisible layer.

Make sure that your new layer stays selected and close the Layers pane. For the following steps you will need a grid every 1 px. This simply means that you need to return to the Grid pane from the Properties panel, open that Grid Settings pane and enter 10 px in both Spacing boxes.

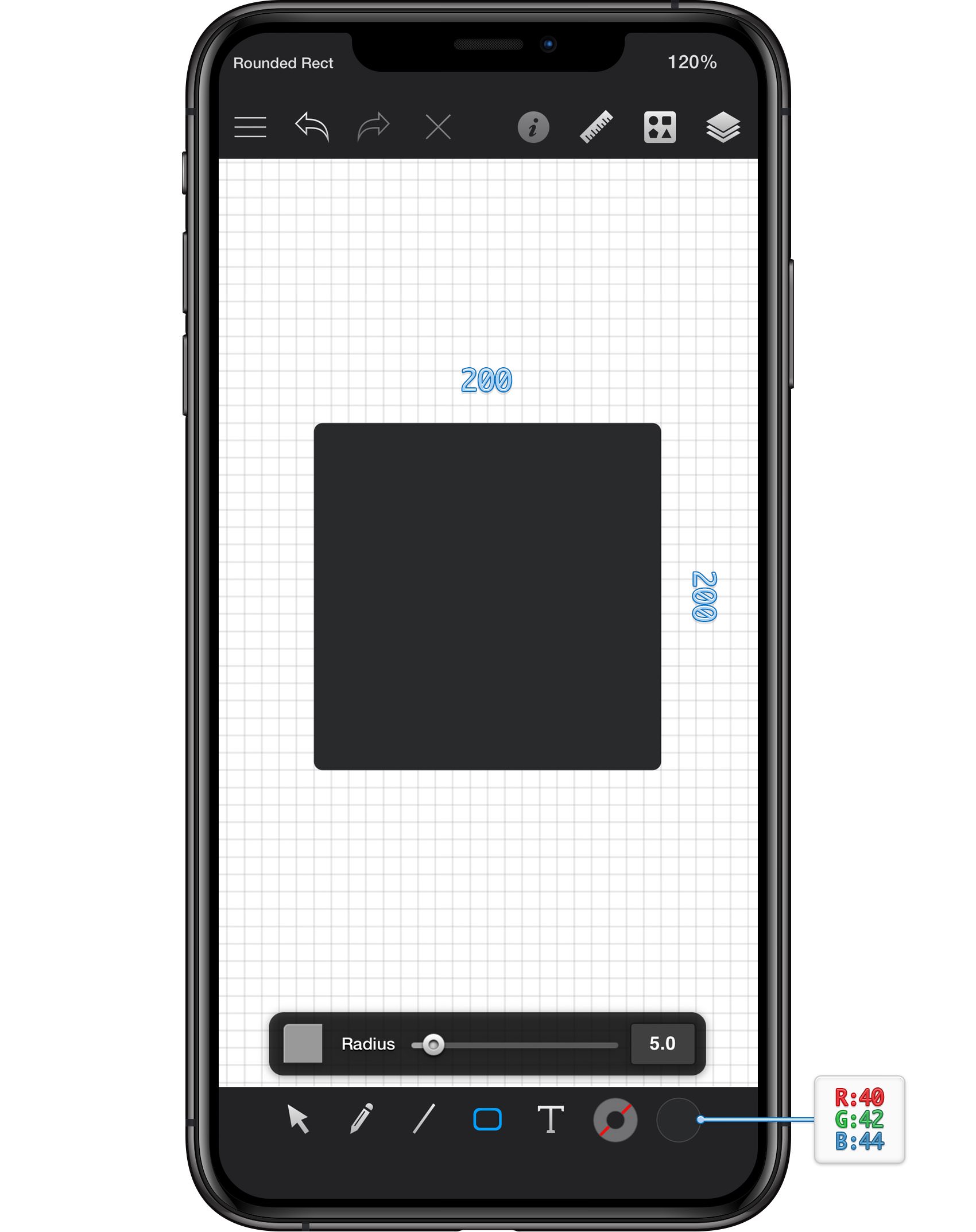

Set the Fill color to R=40 G=42 B=44 and pick the Rounded Rectangle Tool. Set the Radius to 5 and then create a 200 px rounded square.

Step 8

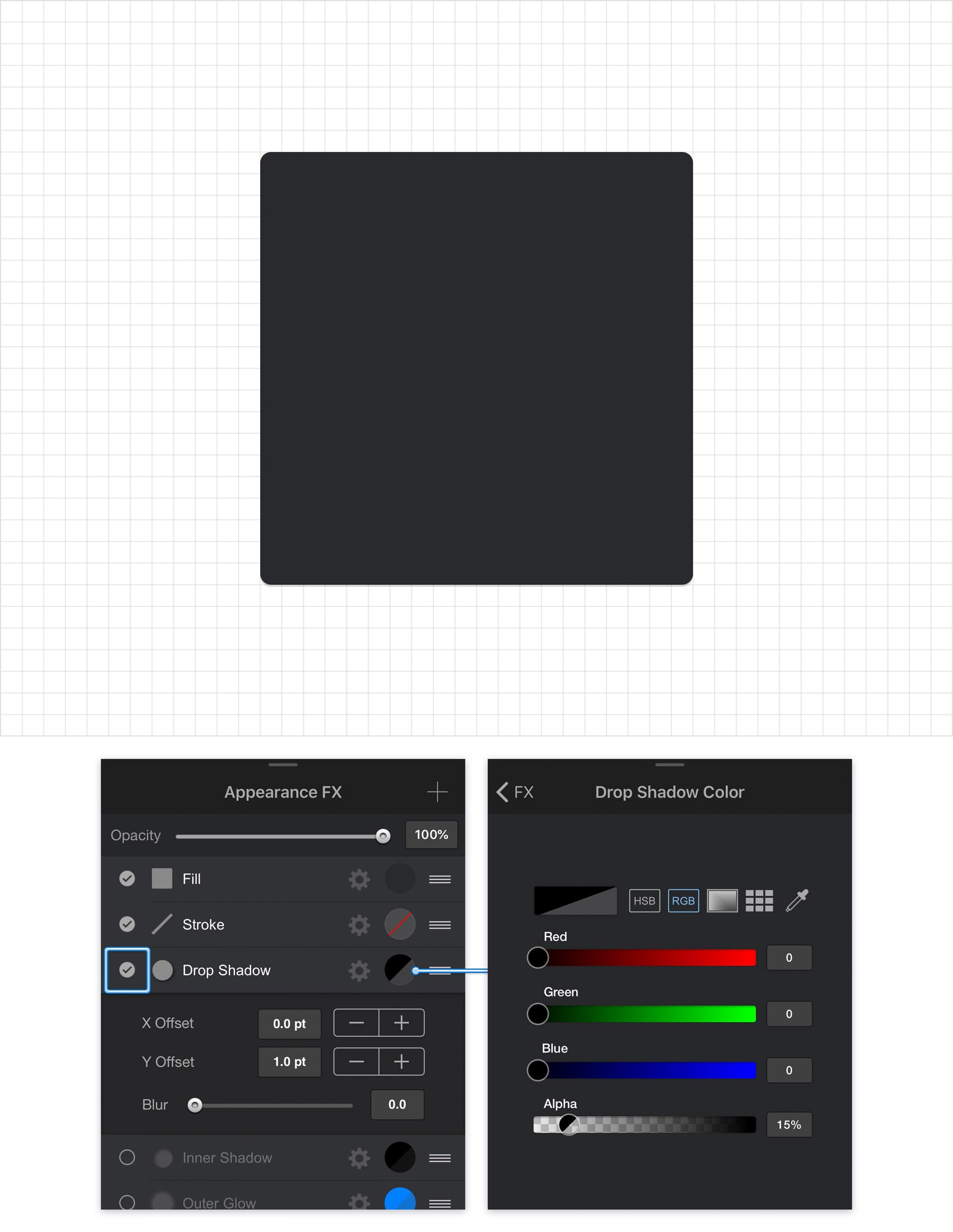

Make sure that your rounded square stays selected and open the Effects pane from the Appearance panel. Simply check the box that stands for the existing Drop Shadow to activate it.

Enter 1 in the Y box and 0 in the other two boxes and then tap the color well that stands for this effect. Set the color to R=0 G=0 B=0 and drag the Alpha slider to 15%.

Step 9

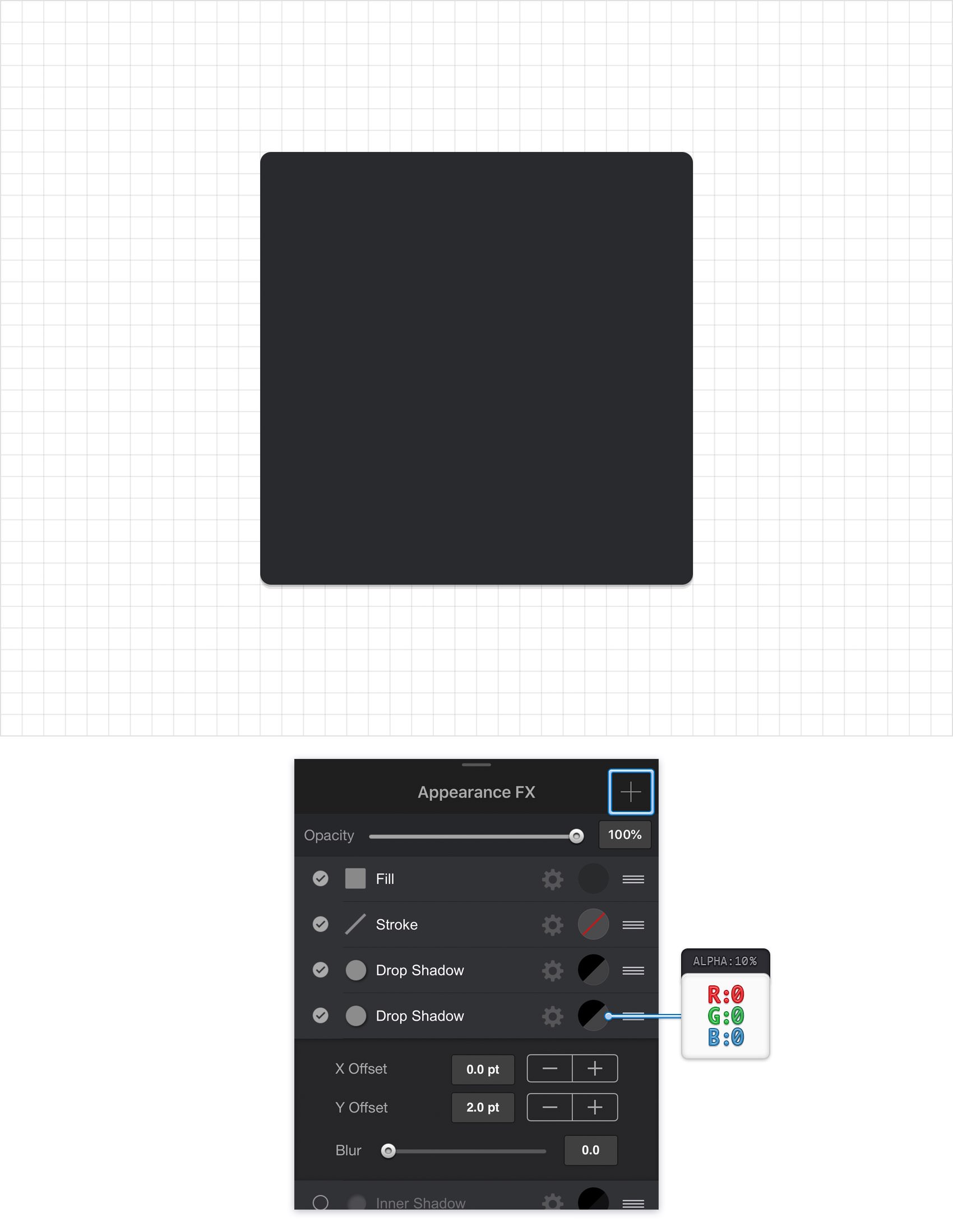

Make sure that your rounded square stays selected, keep focusing on the Effects pane and add a second Drop Shadow using the plus button that lies in the top, right corner of the pane. Select this new effect and enter the attributes shown in the following image.

Step 10

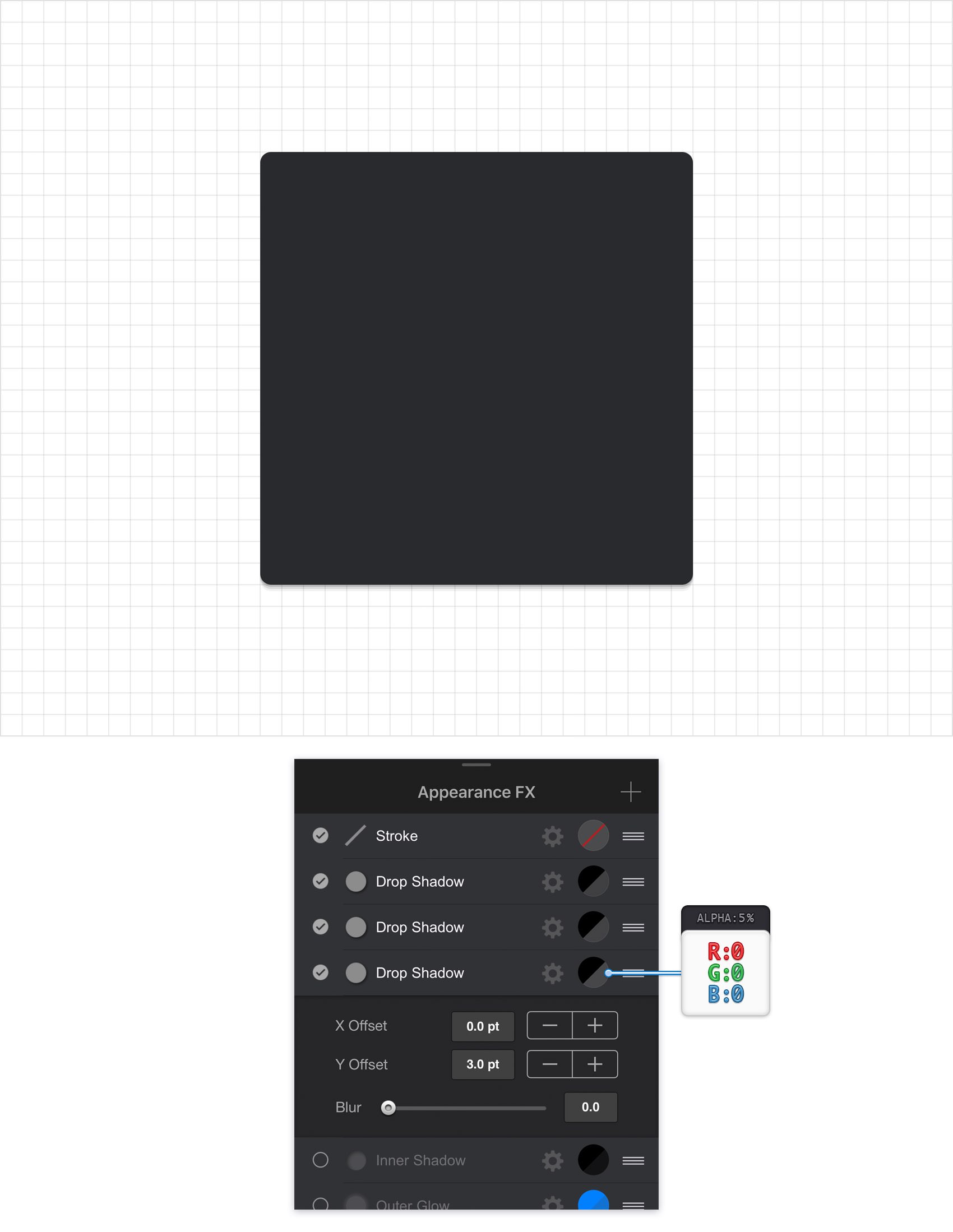

Make sure that your rounded square stays selected, keep focusing on the Effects pane and add a third Drop Shadow using that same plus button. Select this new effect and enter the attributes shown in the following image.

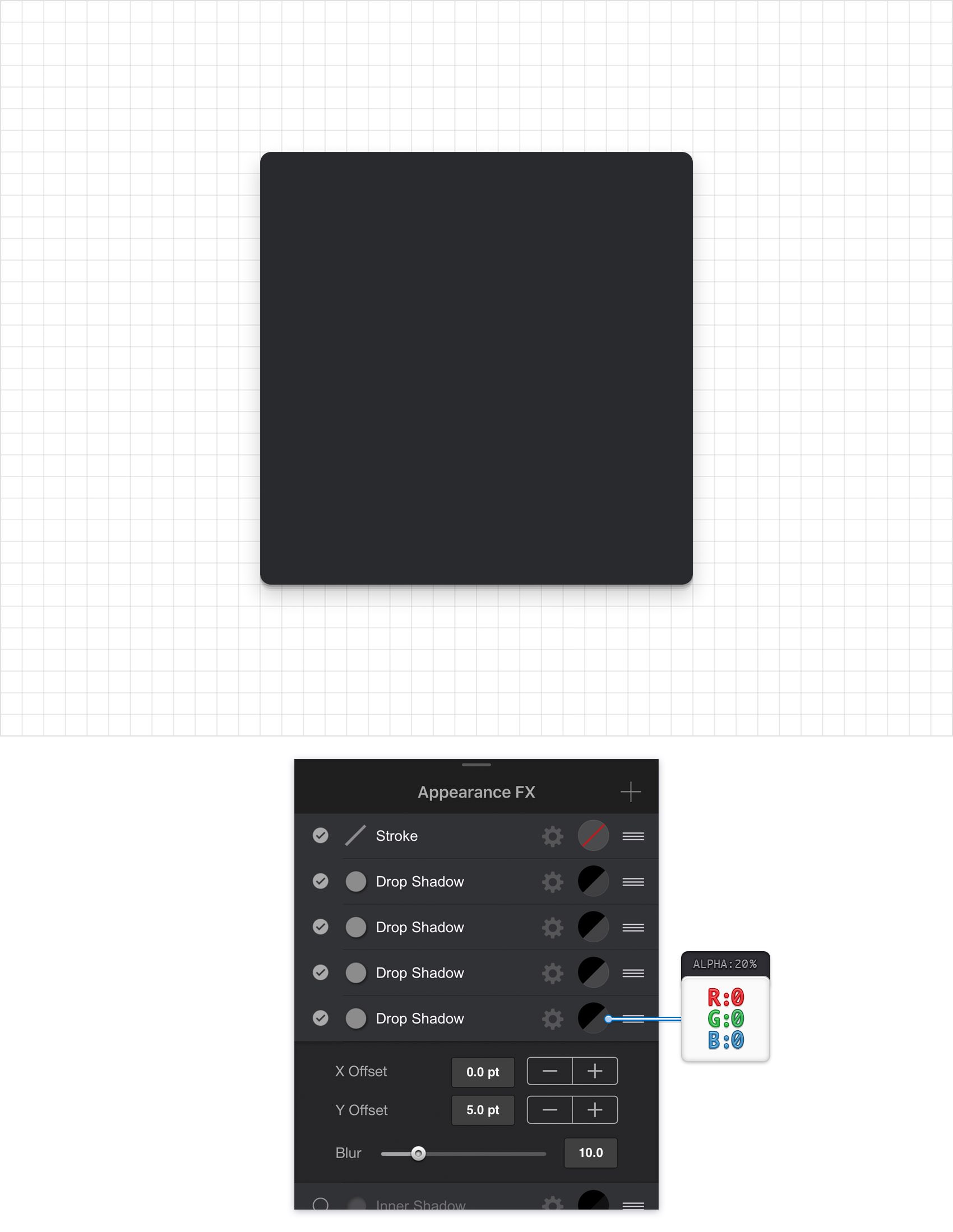

Step 11

Make sure that your rounded square stays selected, keep focusing on the Effects pane and add a fourth Drop Shadow. Select this new effect and then enter the attributes shown in the following image.

Step 12

Make sure that your rounded square stays selected and keep focusing on the Effects pane.

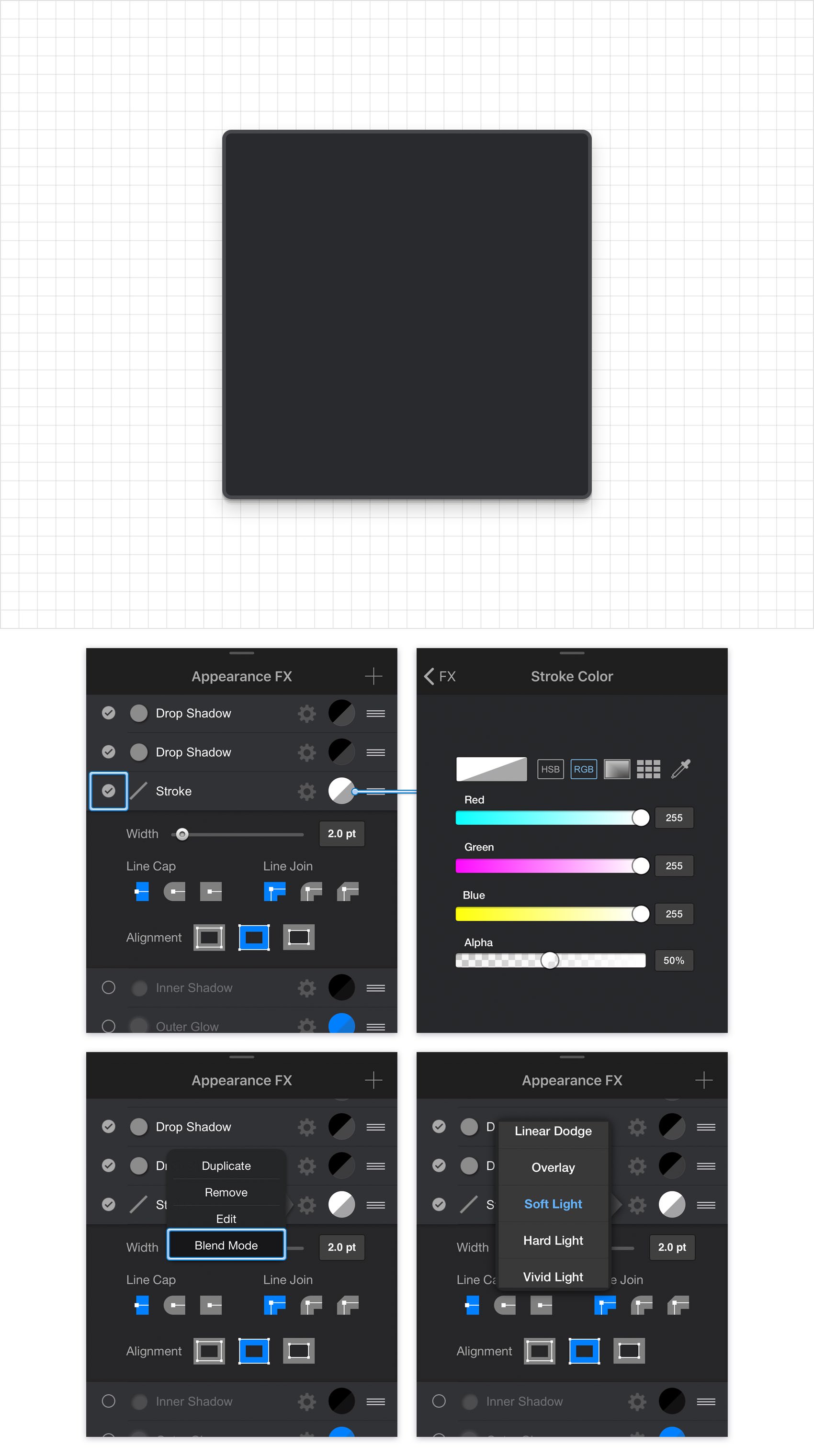

Select the existing Stroke and drag it below the active effects. Drag the Width slide to 2 pt, tap the Inside Alignment button and then tap the color well that stands for your Stroke. Replace the existing color with white and drag the Alpha slider to 50%. Return to the Effects pane and tap the cogwheel icon that stands for this Stroke. Tap Blend Mode from the newly opened context menu and select Soft Light from that list. Changing this blend mode will simply lower the contrast between your stroke and that fill.

Step 13

Make sure that your rounded square stays selected, keep focusing on the Effects pane and add a second Stroke using that same plus button. Drag it below the existing Stroke and then enter the attributes shown in the following image.

Step 14

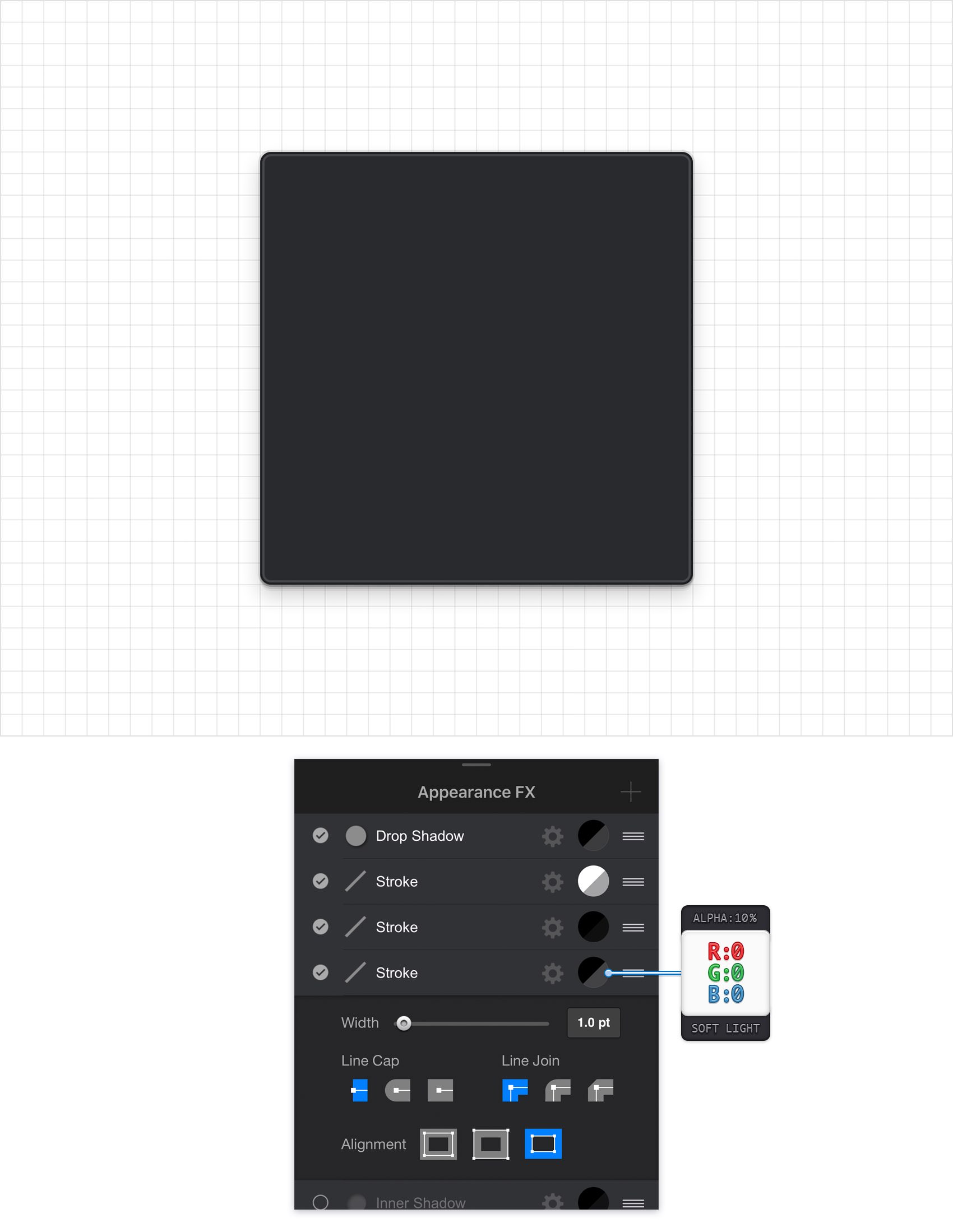

Make sure that your rounded square stays selected, keep focusing on the Effects pane and add a third Stroke using that same plus button. Drag it below the existing Strokes and then enter the attributes shown in the following image.

Step 15

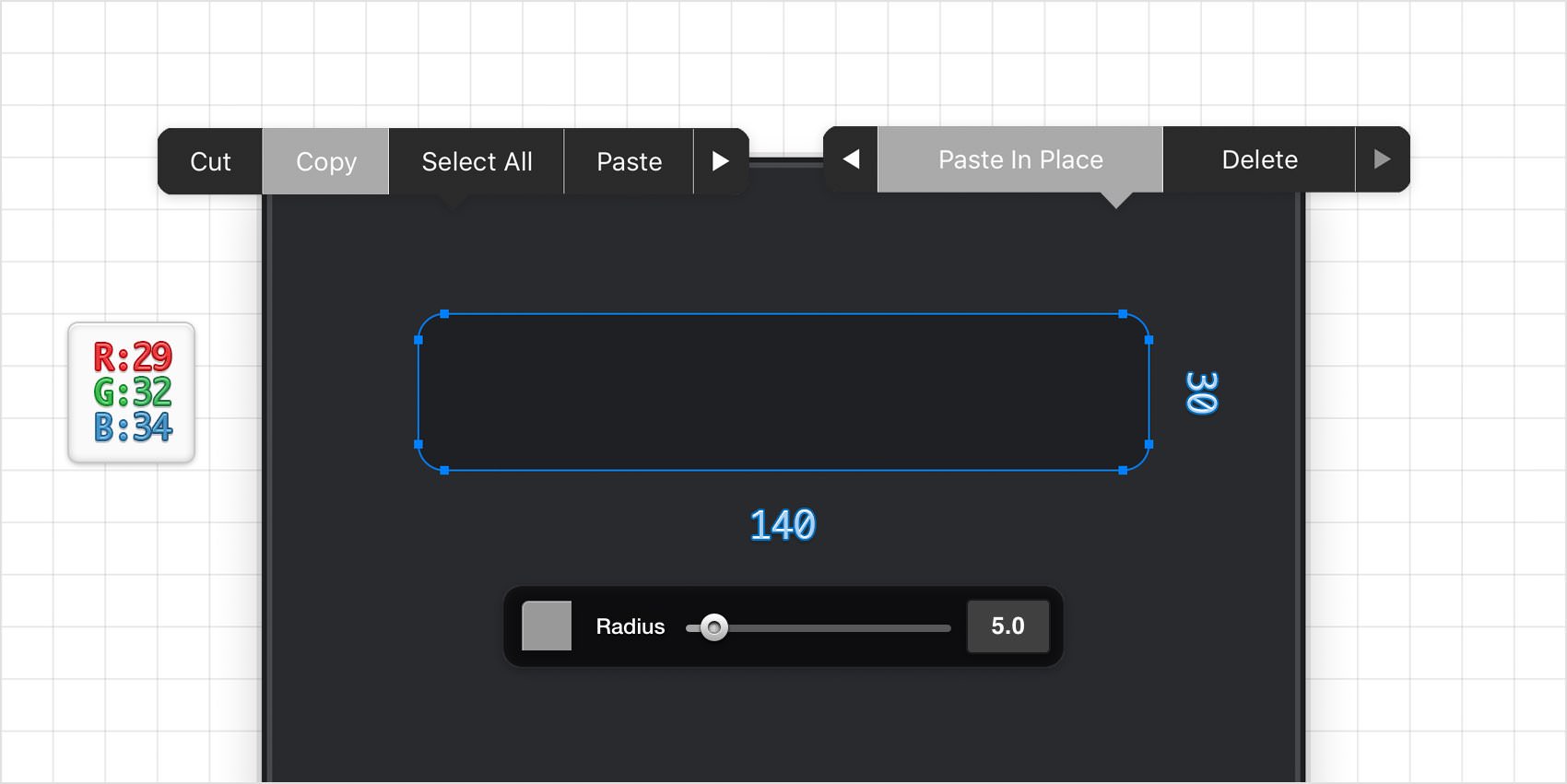

Pick the Rounded Rectangle Tool and make sure that the Radius is still set to 5. Create a 140 x 30 px shape, set the Fill color to R=29 G=32 B=34 and place it as shown in the following image.

Make sure that this new shape is selected, tap & hold to open that context menu and tap the Copy command. Reopen the context menu and tap the Paste in Place command to easily add a copy of your selection in the same place.

Step 16

Return to your Toolbar, make sure that the Line is still invisible and pick a random blue for the Fill color.

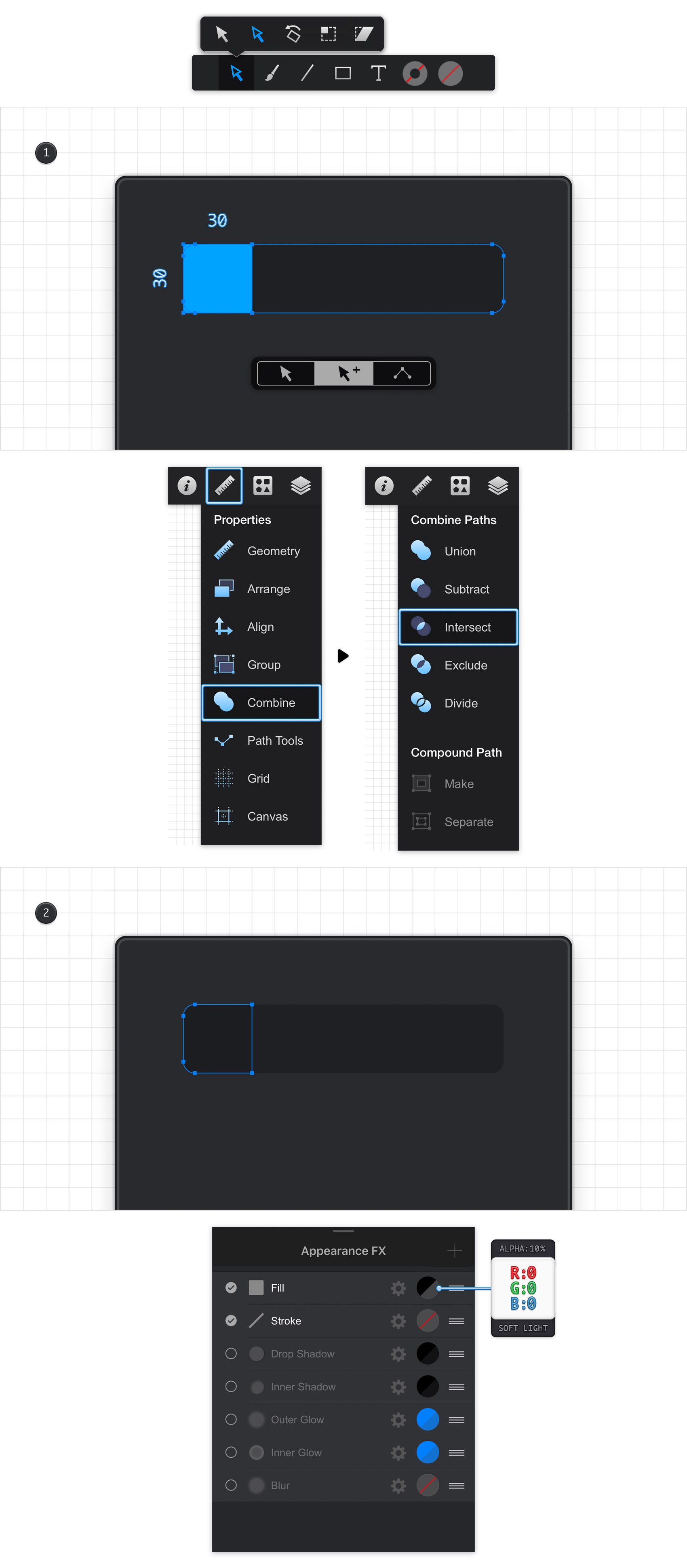

Pick the Rectangle Tool, create a 30 px square and place it exactly as shown in the first image. Pick the Path Selection Tool, focus on the newly opened tool pane and activate the Add to Selection mode. Select your blue square along with the copy of that smaller, rounded rectangle, go to the Combine pane and tap the Intersect button.

Make sure that the resulting shape stays selected and open the Effects pane. Focus on the existing Fill and tap the color well. Drag the Alpha slider to 10%, replace the existing color with black and don't forget to change the Blend Mode to Soft Light.

Step 17

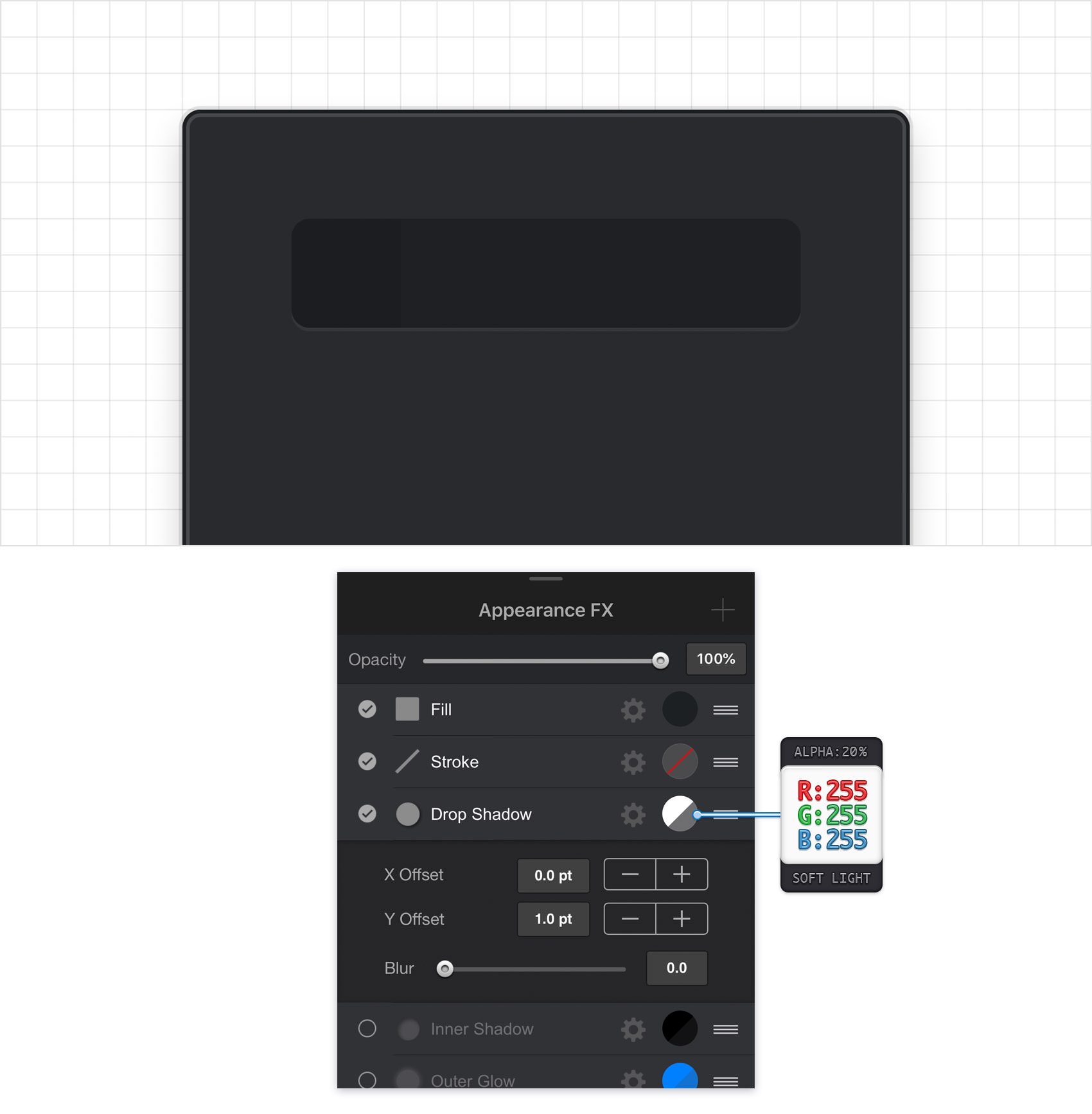

Reselect the smaller rounded rectangle, make sure that it stays selected and open the Effects pane. Activate the existing Drop Shadow and enter the attributes shown in the following image.

Step 18

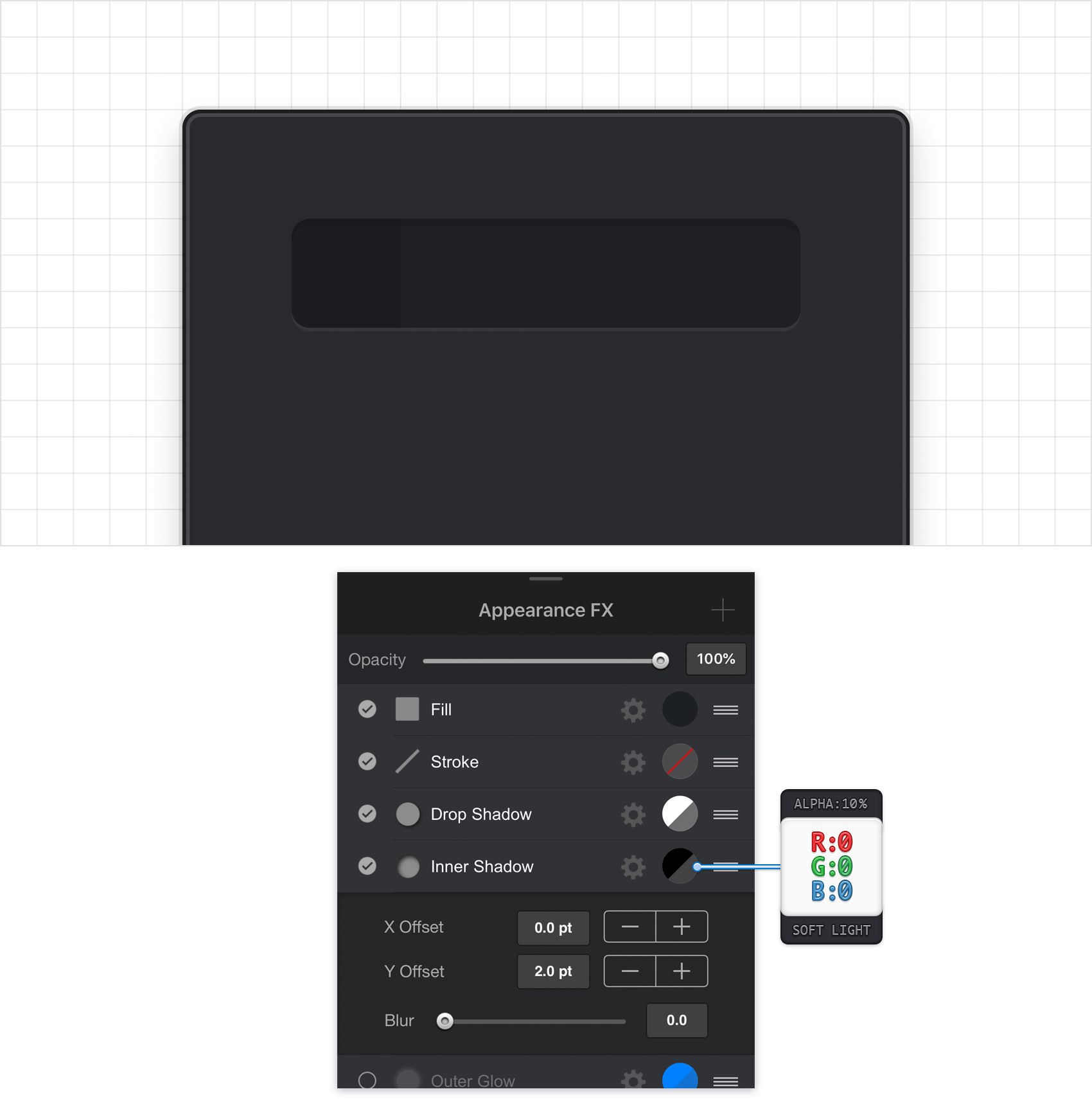

Make sure that your smaller, rounded rectangle is still selected and focus on the Effects pane. Activate the existing Inner Shadow effect and enter the attributes shown in the following image.

Step 19

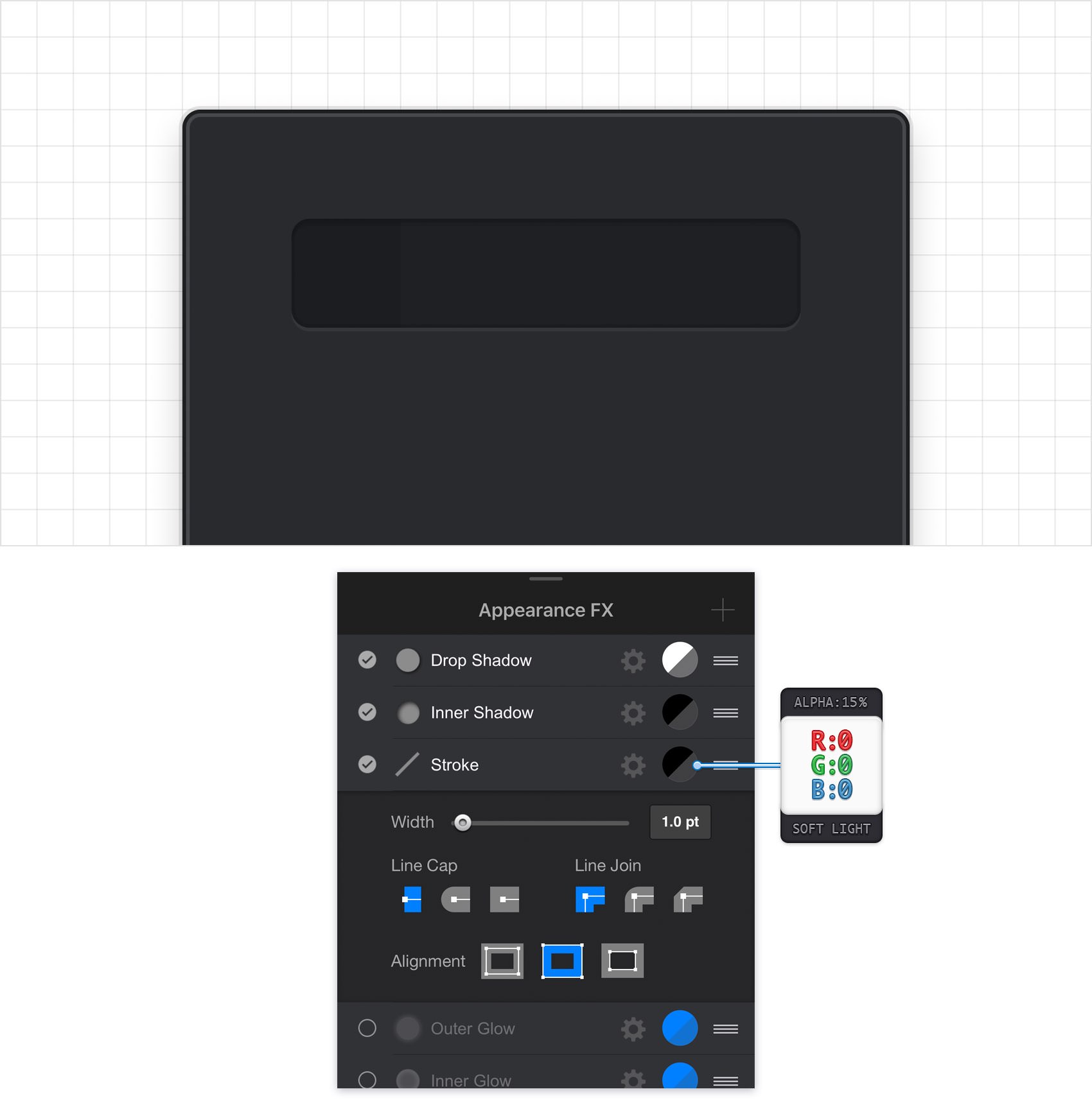

Make sure that your smaller, rounded rectangle is still selected and focus on the Effects pane. Select the Stroke, drag it below the active effects and then enter the attributes shown in the following image.

Step 20

Make sure that your smaller, rounded rectangle is still selected, focus on the Effects pane and add a second Stroke. Drag it below the existing Stroke and then enter the attributes shown in the following image.

Step 21

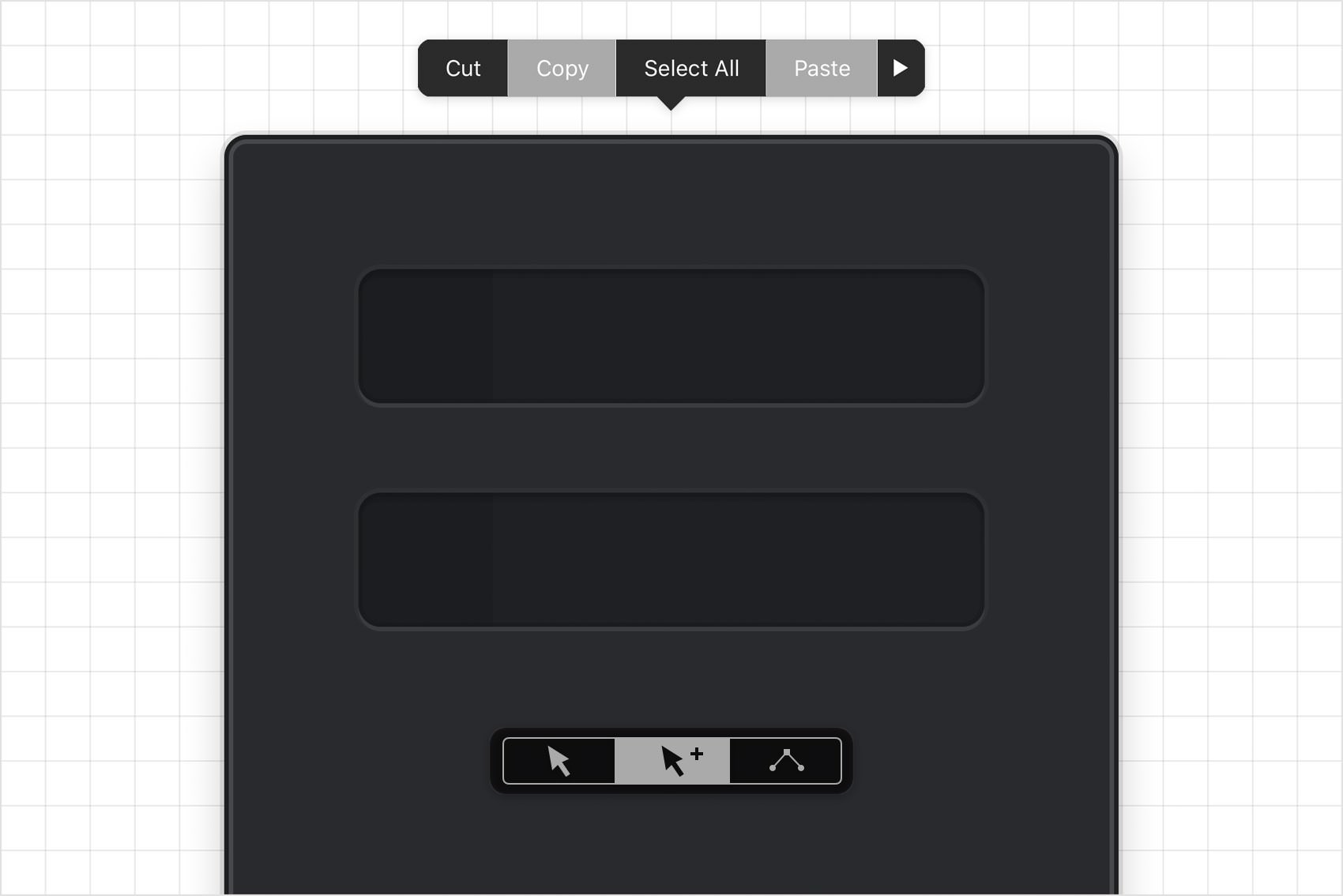

Pick the Path Selection Tool, focus on the tool pane and active the Add to Selection mode. Select your smaller, rounded rectangle along with that black, transparent shape and duplicate them using the same Copy and Paste commands from the context menu. Select these copies and place them as shown in the second image.

Step 22

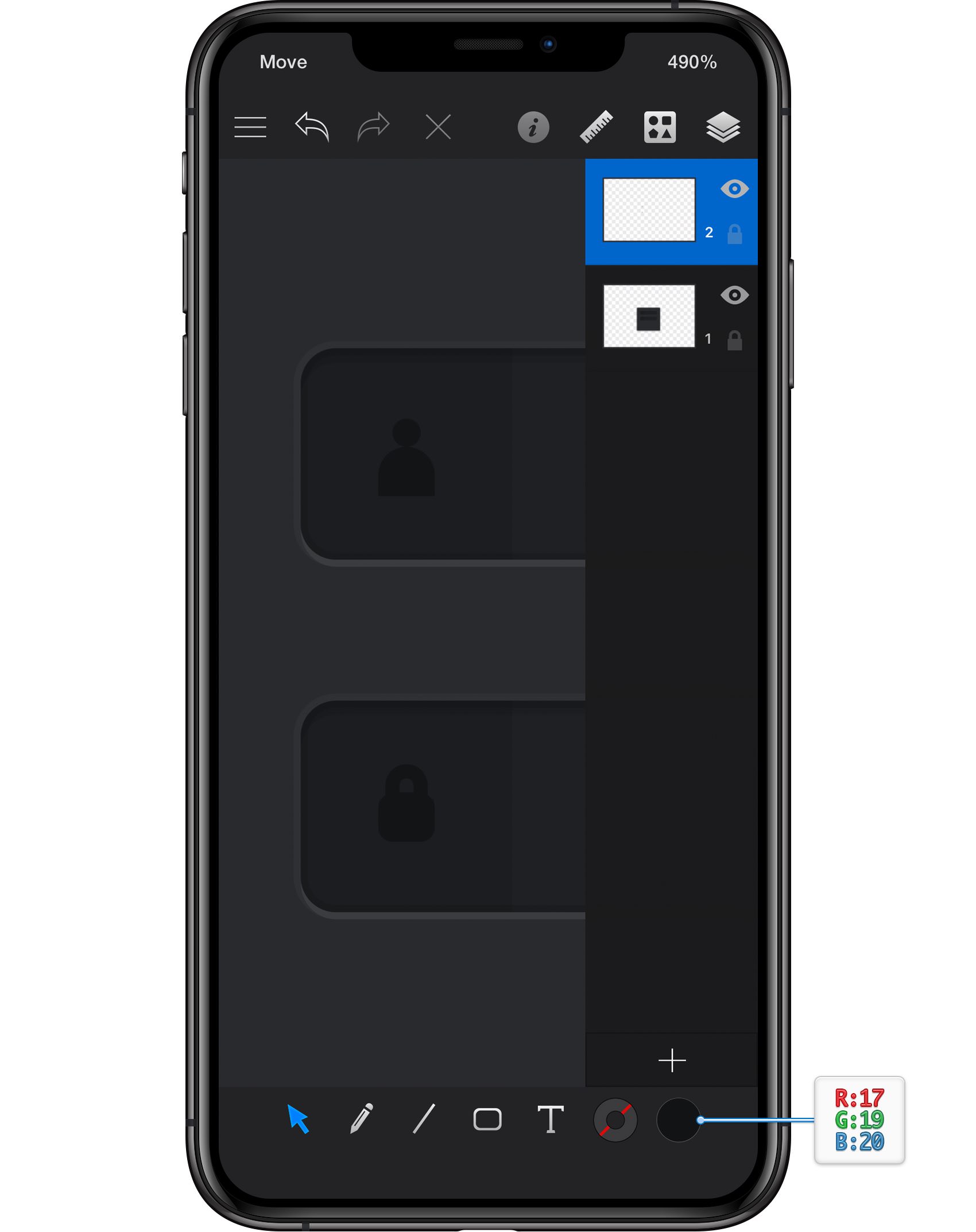

For this step you will need a grid every 1 px. Return to the Grid pane, open the Grid Settings pane and enter 1 px for both Spacing boxes. Open the Layers panel, turn on the visibility for your top layer and select it.

Using the Move Tool, select the tiny icons made in the beginning of the tutorial and place them roughly as shown in the following image. Select only the lock icon and focus on your Toolbar. Tap the Fill color well and replace the existing color with R=17 G=19 B=20.

Step 23

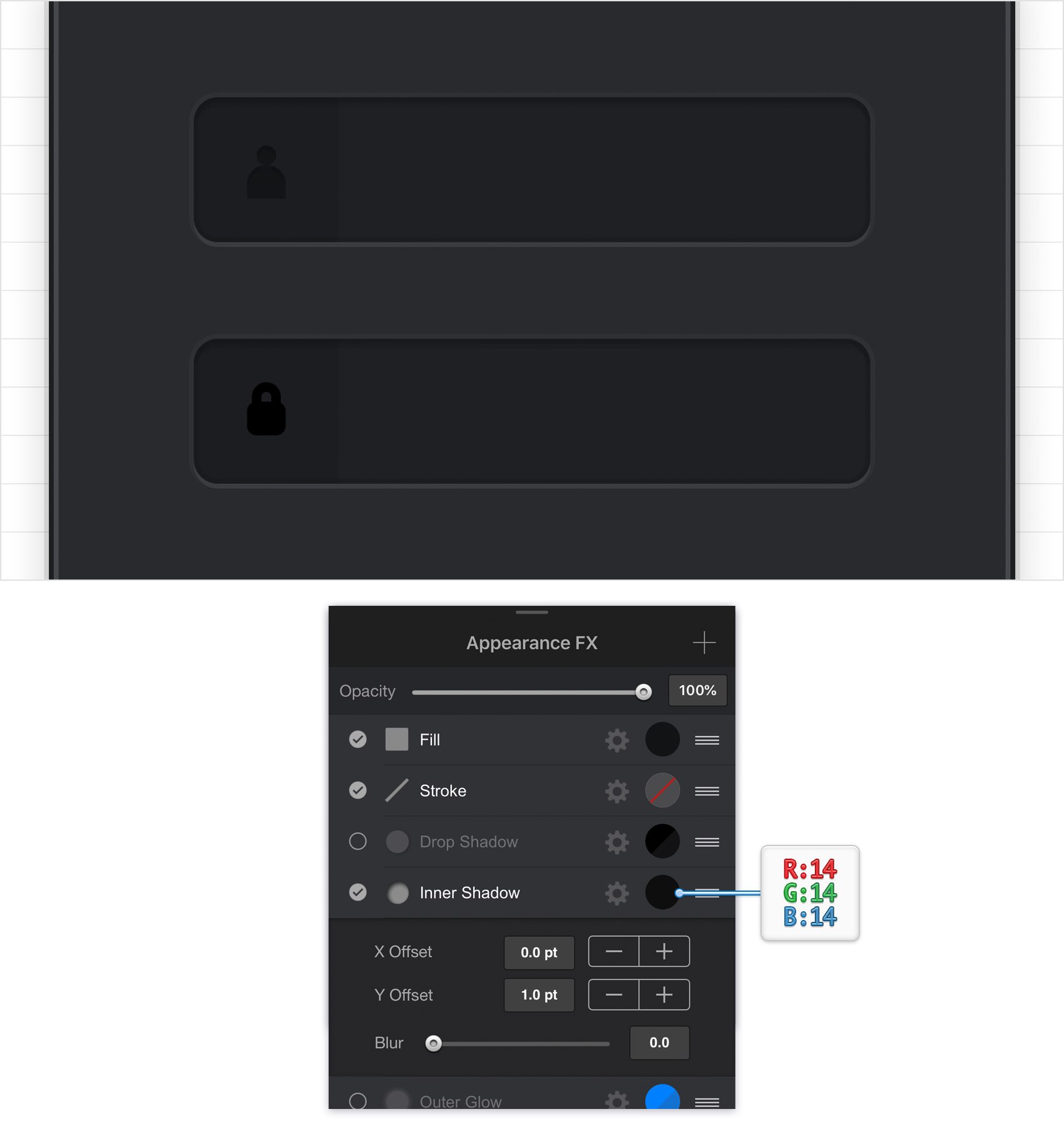

Make sure that your lock icon is still selected and open the Effects pane. Activate the existing Inner Shadow and enter the attributes shown in the following image.

Step 24

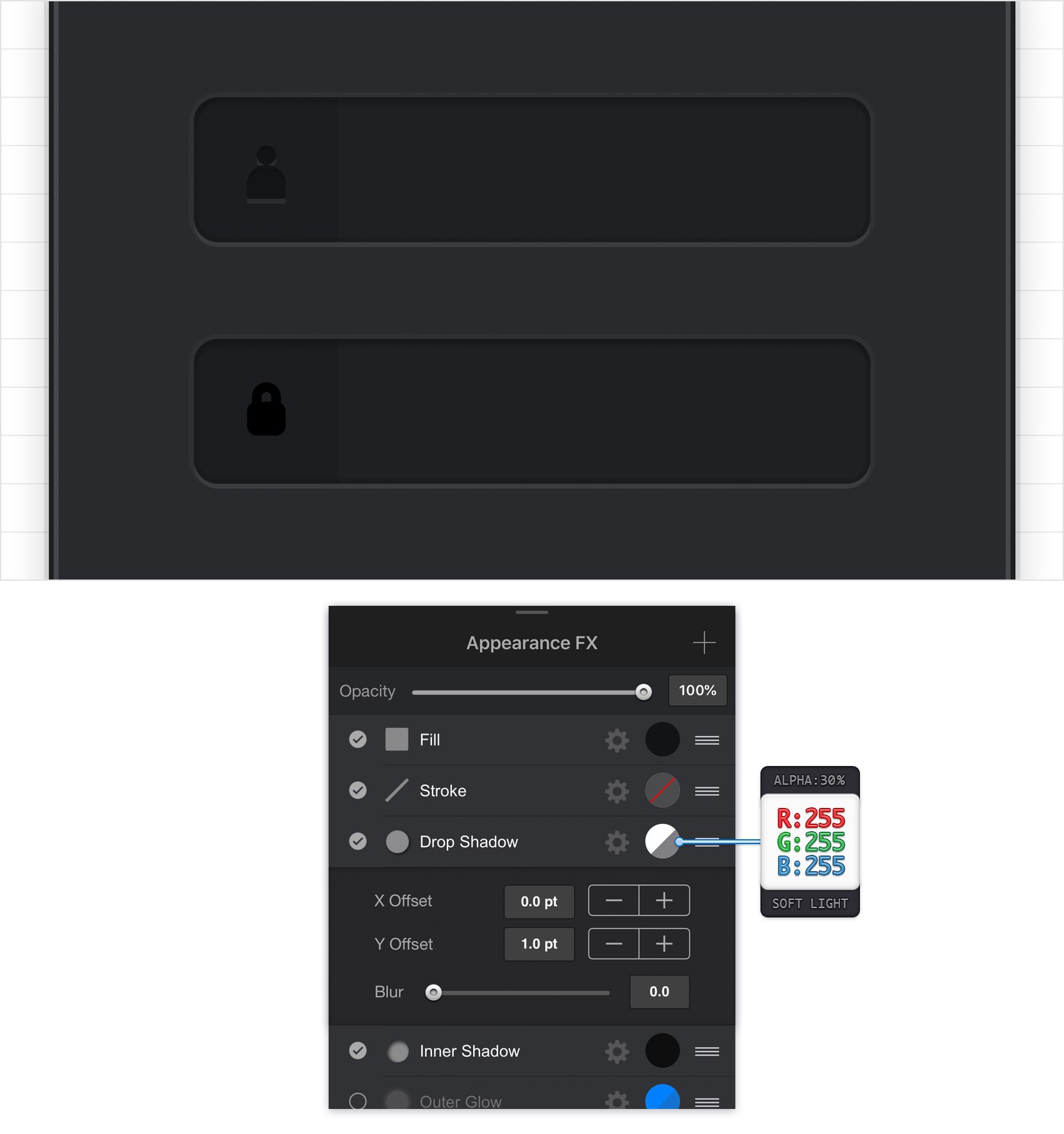

Make sure that your lock icon is still selected and keep focusing on the Effects pane. Activate the existing Drop Shadow and enter the attributes shown in the following image.

Step 25

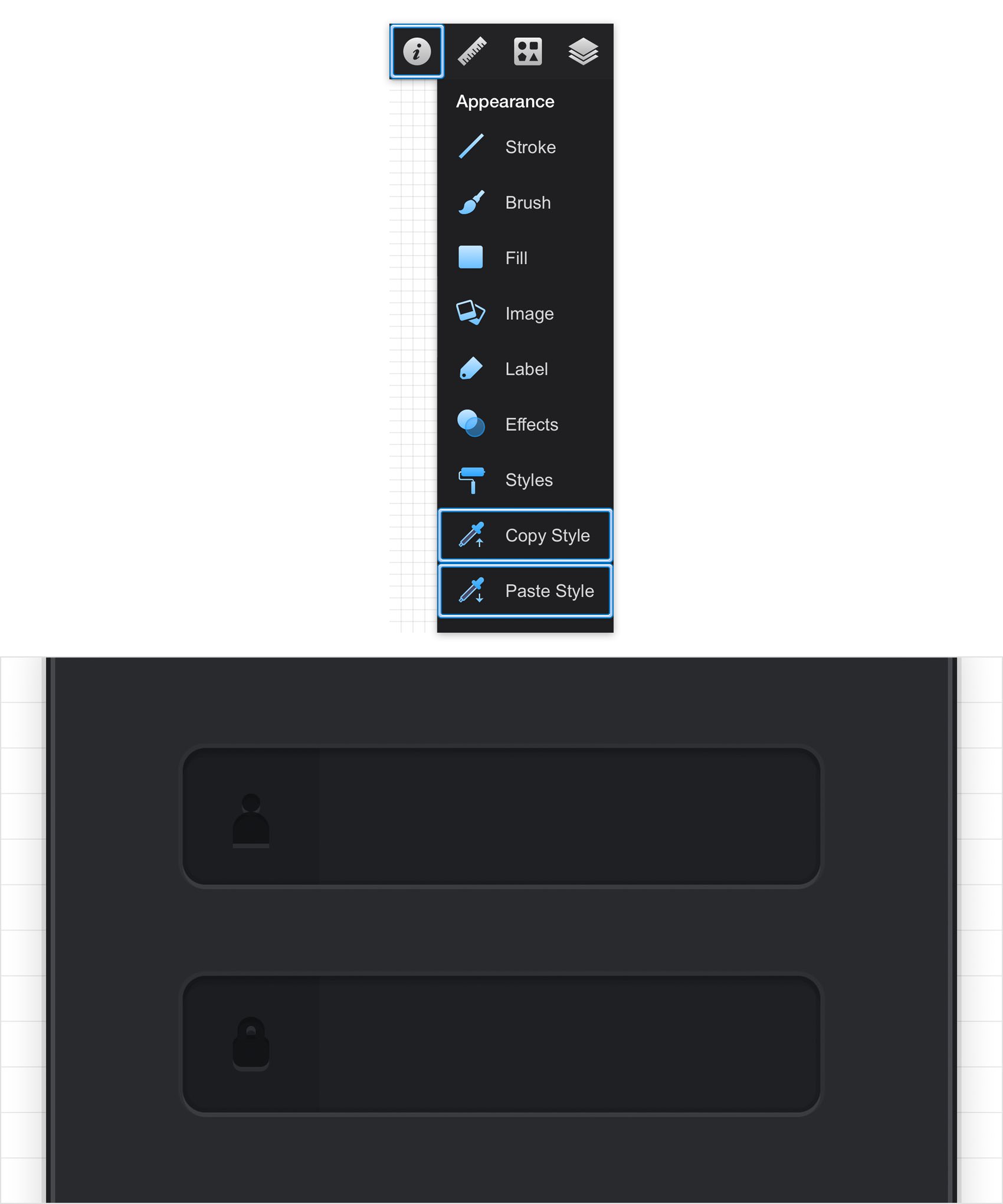

Make sure that your lock icon is still selected, open the Appearance pane and tap the Copy Style command. Select thie other icon, re-open the Appearance pane and this time tap the Paste Style command.

Step 26

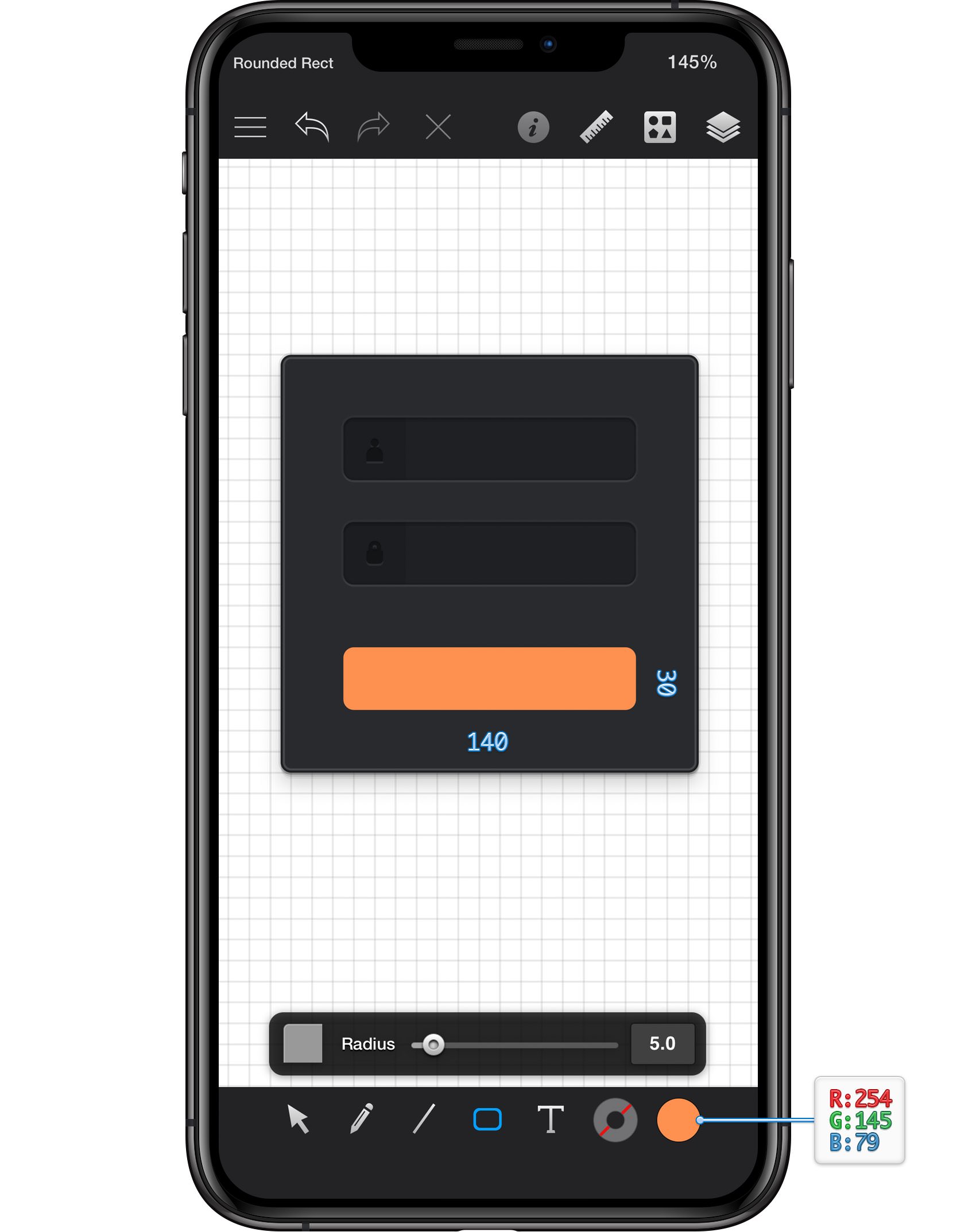

Return to the Grid pane, open the Grid Settings pane and enter 10 px for both Spacing boxes. Focus on your Toolbar, make sure that the Line is invisible and then set the Fill color to R=254 G=145 B=79.

Pick the Rounded Rectangle Tool and make sure that the Radius is set to 5. Create a 140 x 30 px shape and place it as shown in the following image.

Step 27

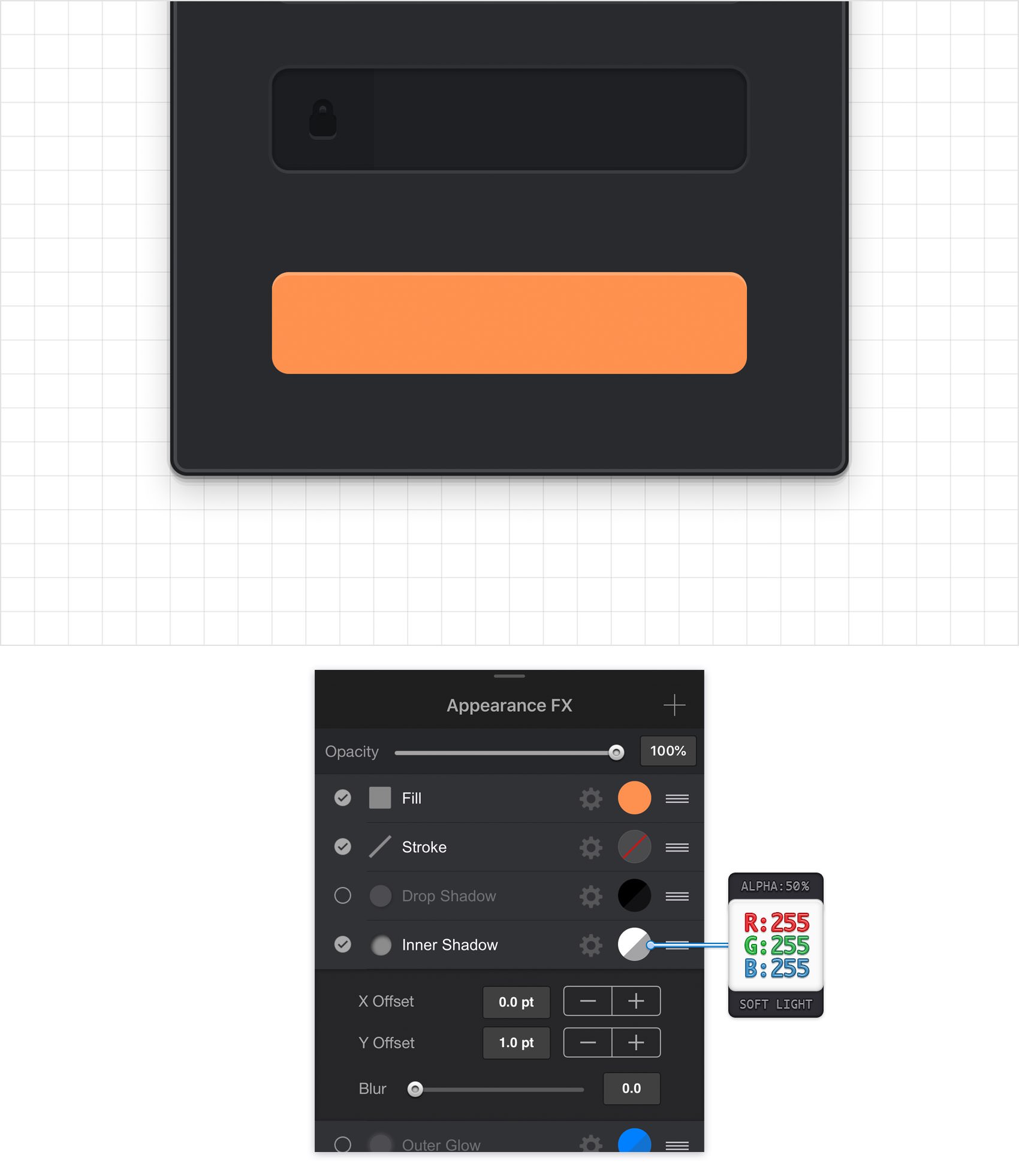

Make sure that your orange, rounded rectangle stays selected and open the Effects pane. Activate the existing Inner Shadow and enter the attributes shown in the following image.

Step 28

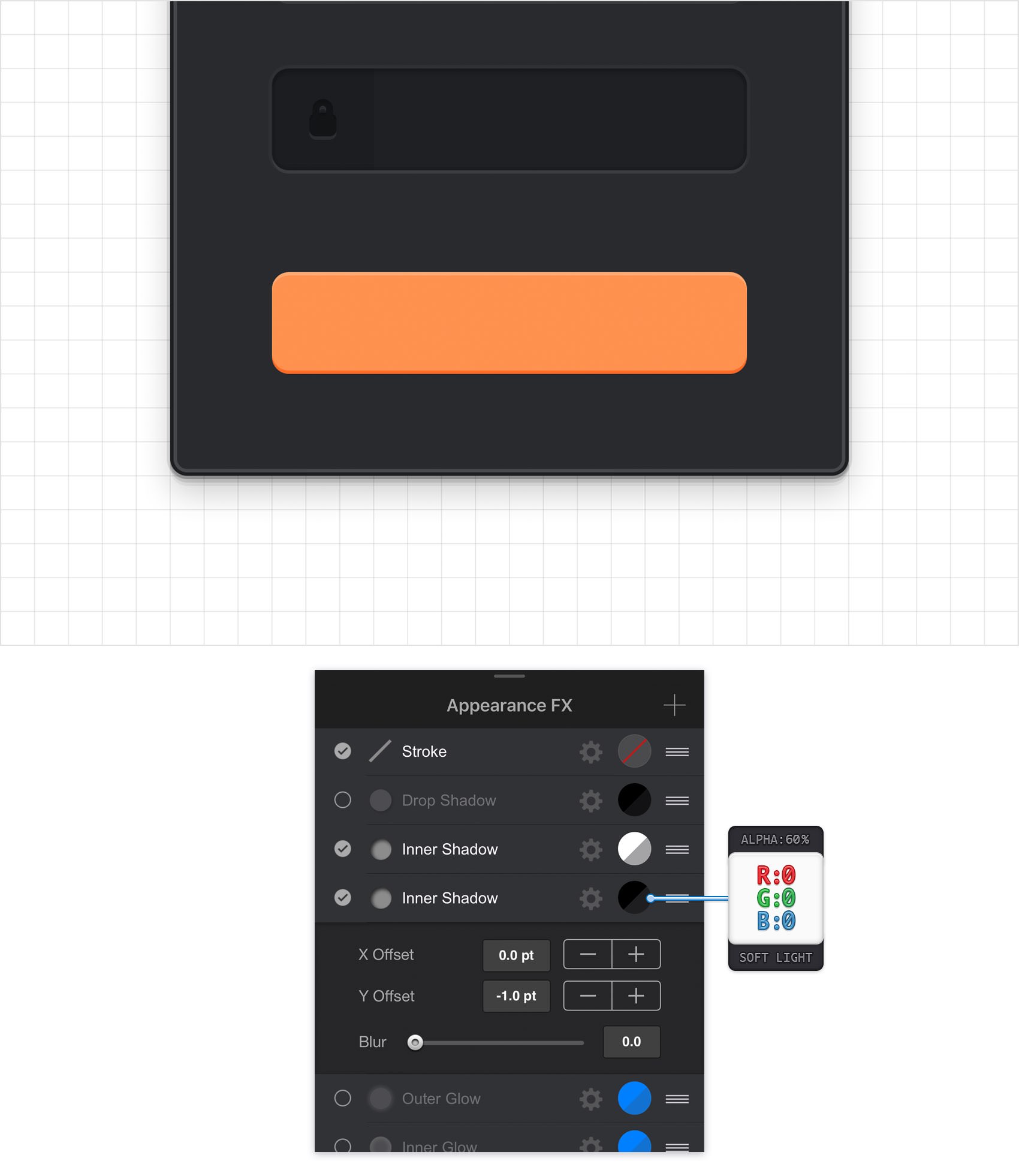

Make sure that your orange, rounded rectangle stays selected, keep focusing on the Effects pane and add a second Inner Shadow. Drag it below the existing effect and then enter the attributes shown in the following image.

Step 29

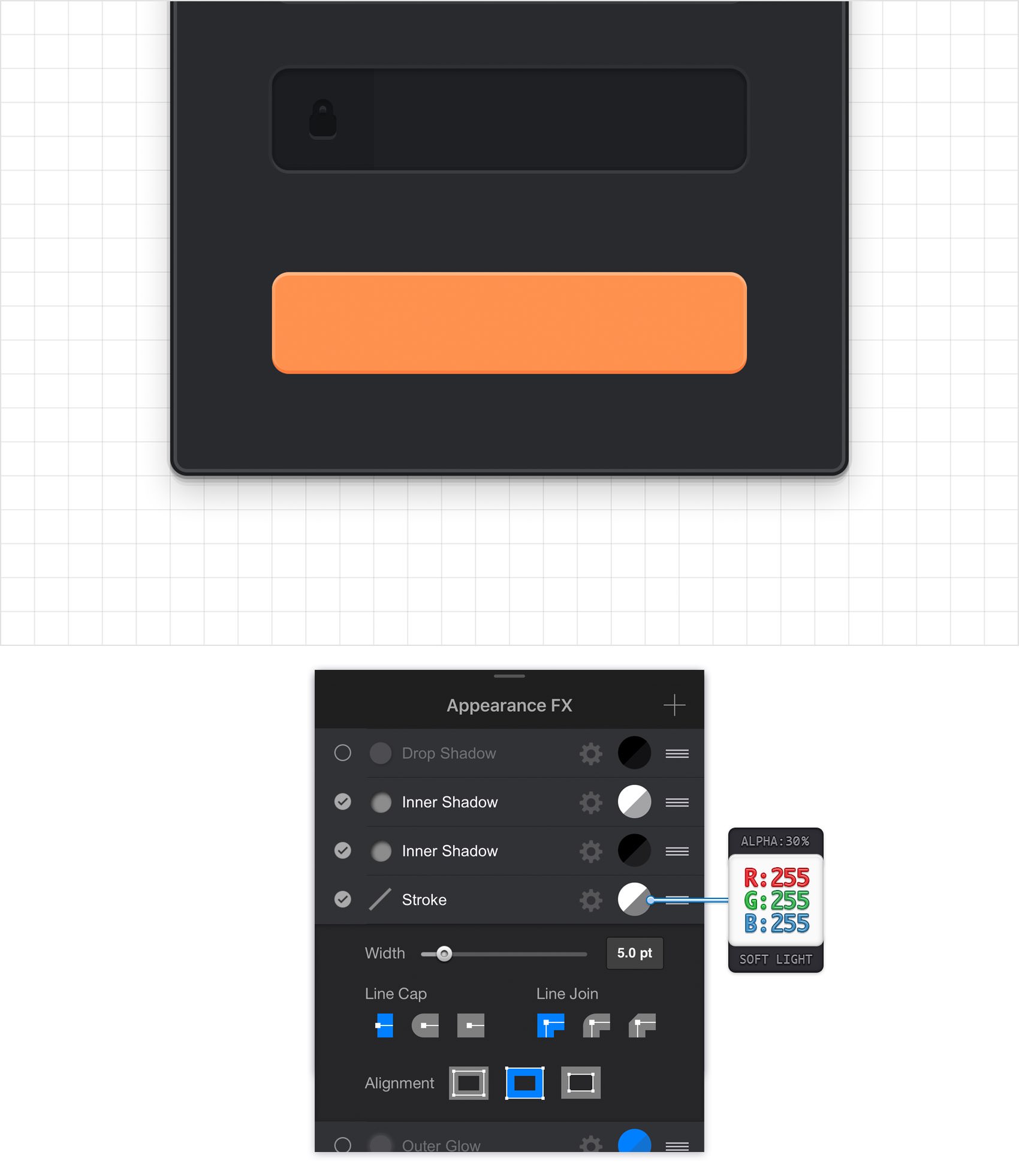

Make sure that your orange, rounded rectangle stays selected and keep focusing on the Effects pane. Activate the existing Stroke, drag it below the Inner Shadow effects and then enter the attributes shown in the following image.

Step 30

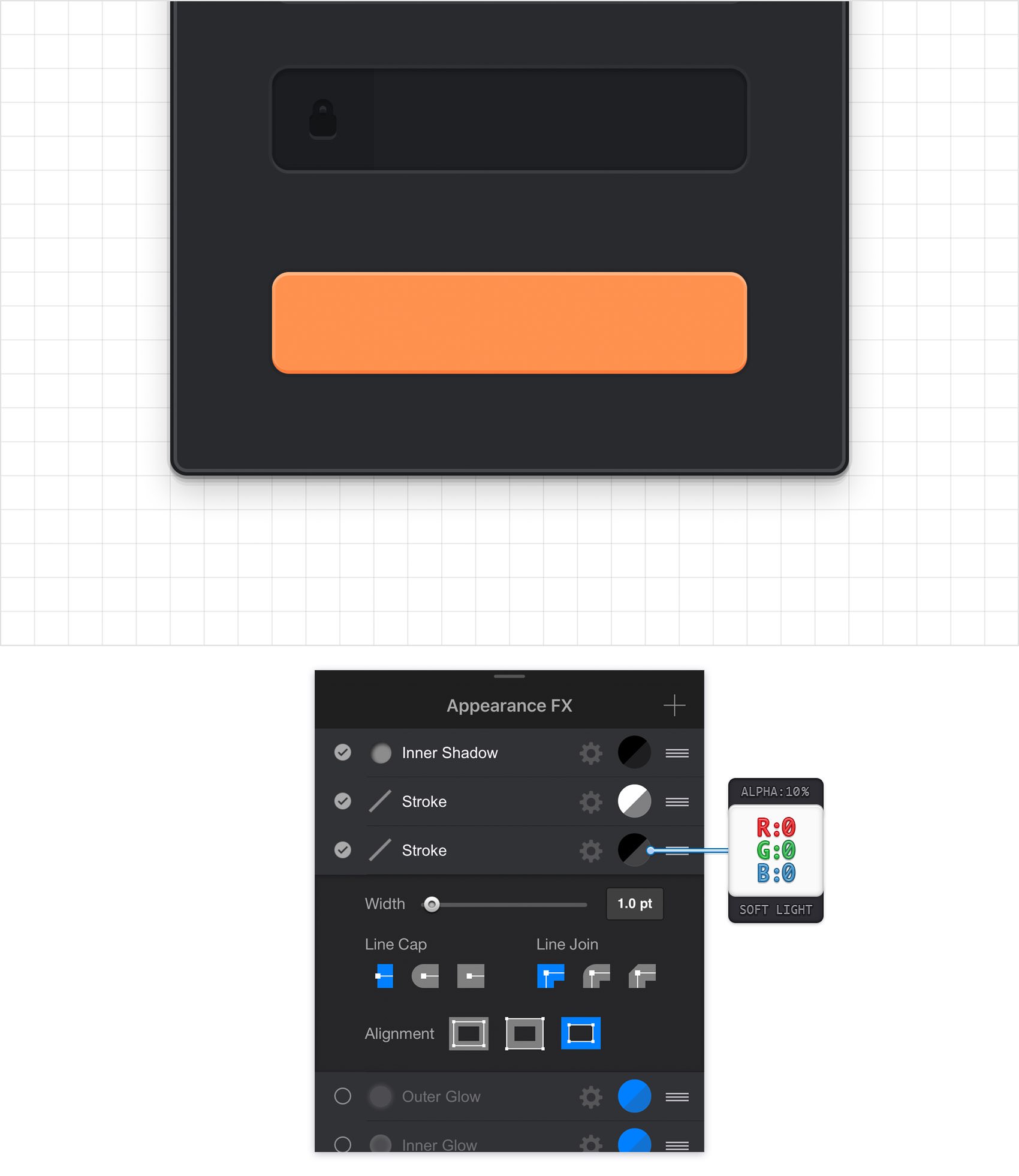

Make sure that your orange, rounded rectangle stays selected, keep focusing on the Effects pane and add a second Stroke. Drag it below the existing Stroke and then enter the attributes shown in the following image.

Step 31

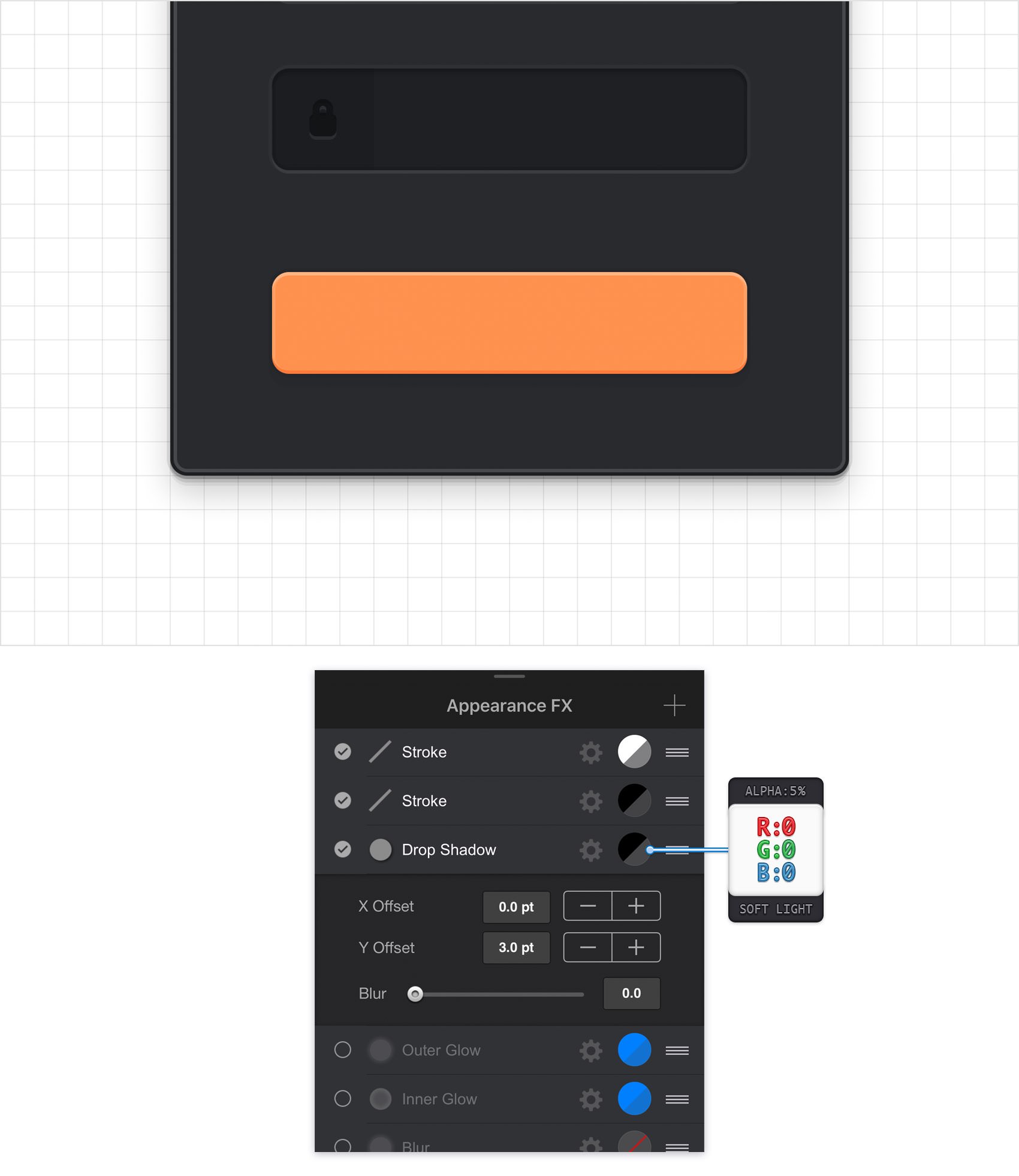

Make sure that your orange, rounded rectangle stays selected and keep focusing on the Effects pane. Activate the existing Drop Shadow, drag it below those Strokes and then enter the attributes shown in the following image.

Step 32

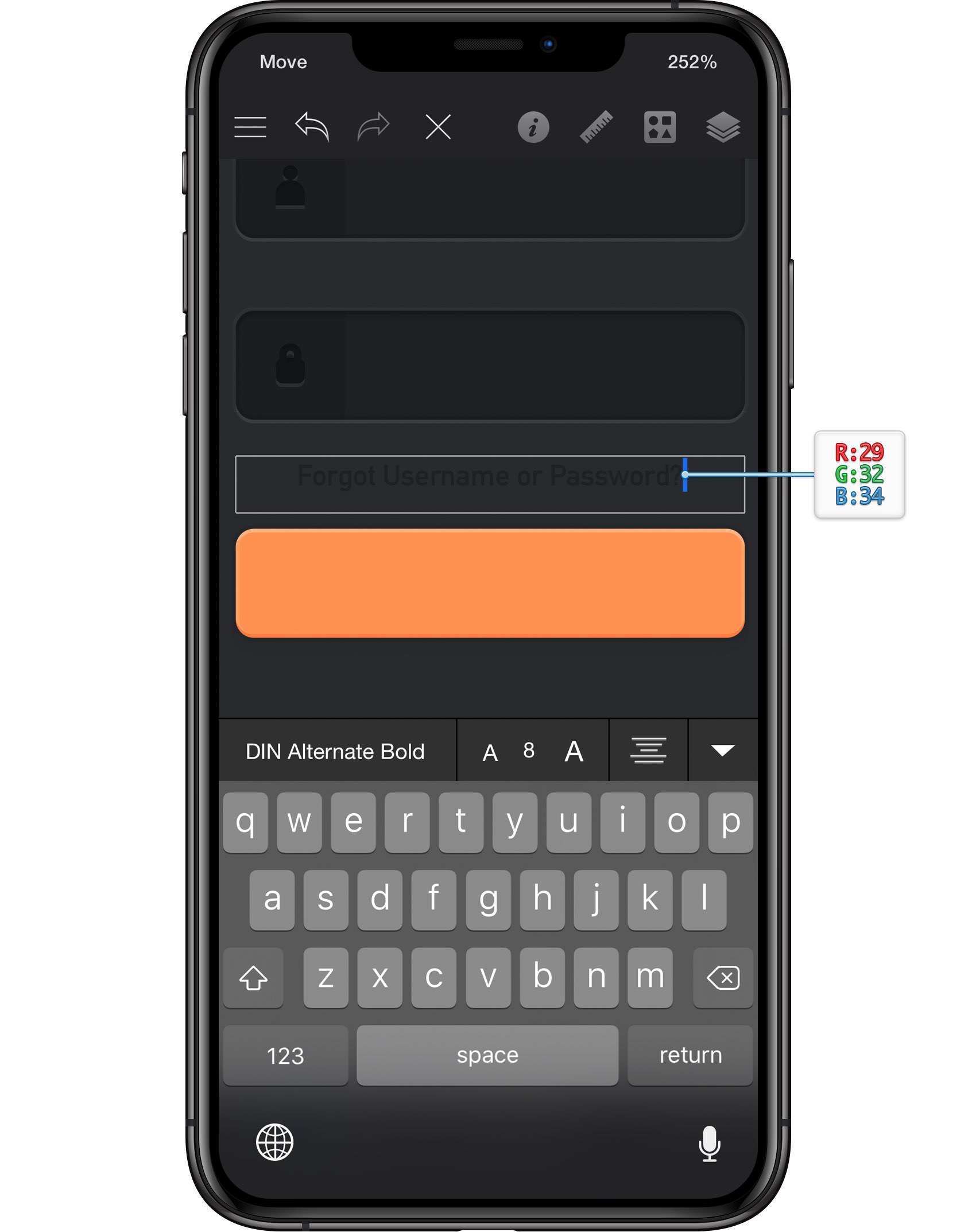

Tap the Text Tool from your Toolbar and then double tap inside that newly added text field. Select the Geeza Pro Bold font and set the size to 8 and then simply add the "Forgot Username or Password?" piece of text. Set its color to R=29 G=32 B=34 and use the Move Tool to select your piece of text and place it as shown in the following image.

Step 33

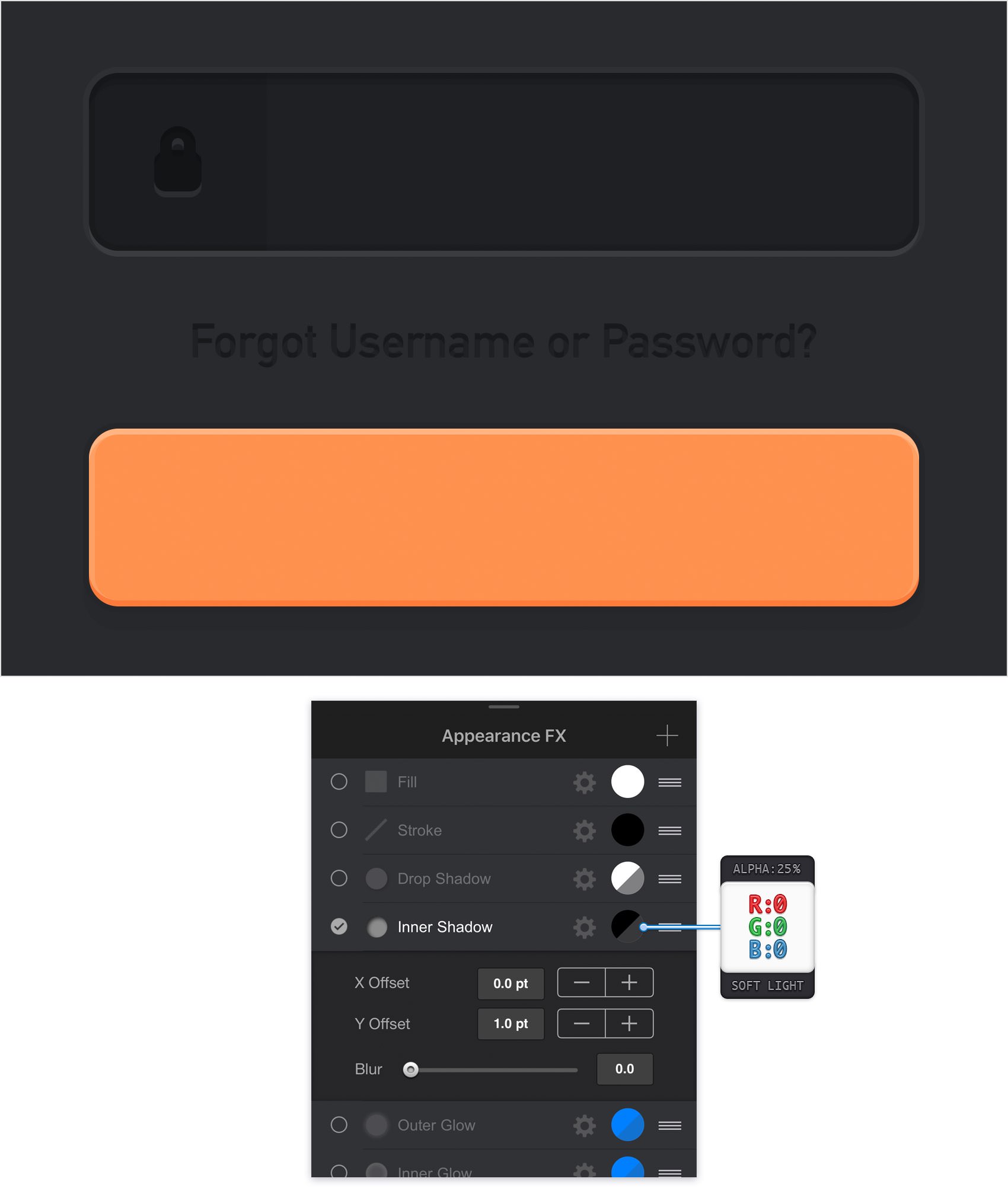

Make sure that your piece of text stays selected and open the Effects pane. Activate the existing Inner Shadow and enter the attributes shown in the following image.

Step 34

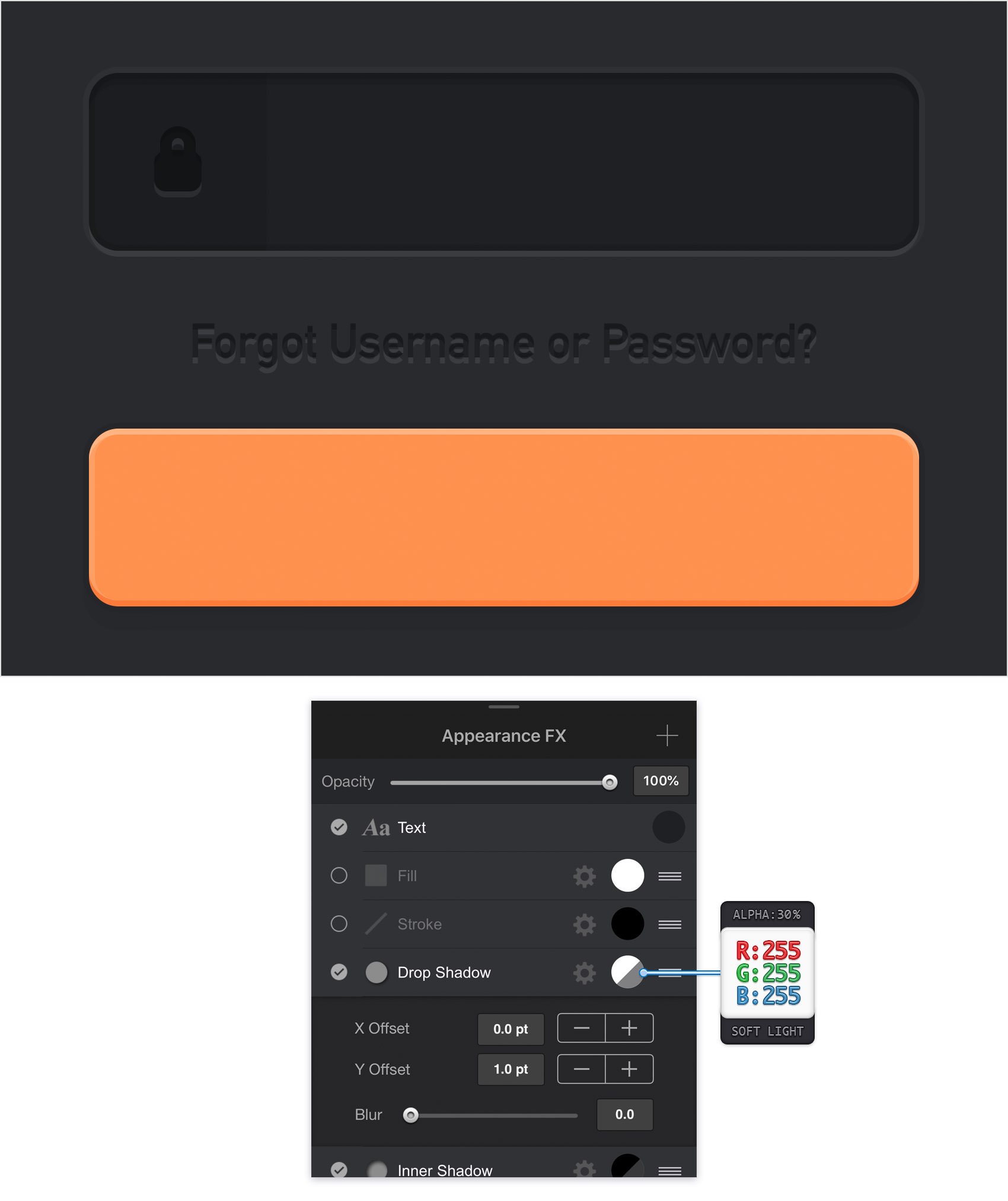

Make sure that your piece of text stays selected and keep focusing on the Effects pane. Activate the existing Drop Shadow and enter the attributes shown in the following image.

Step 35

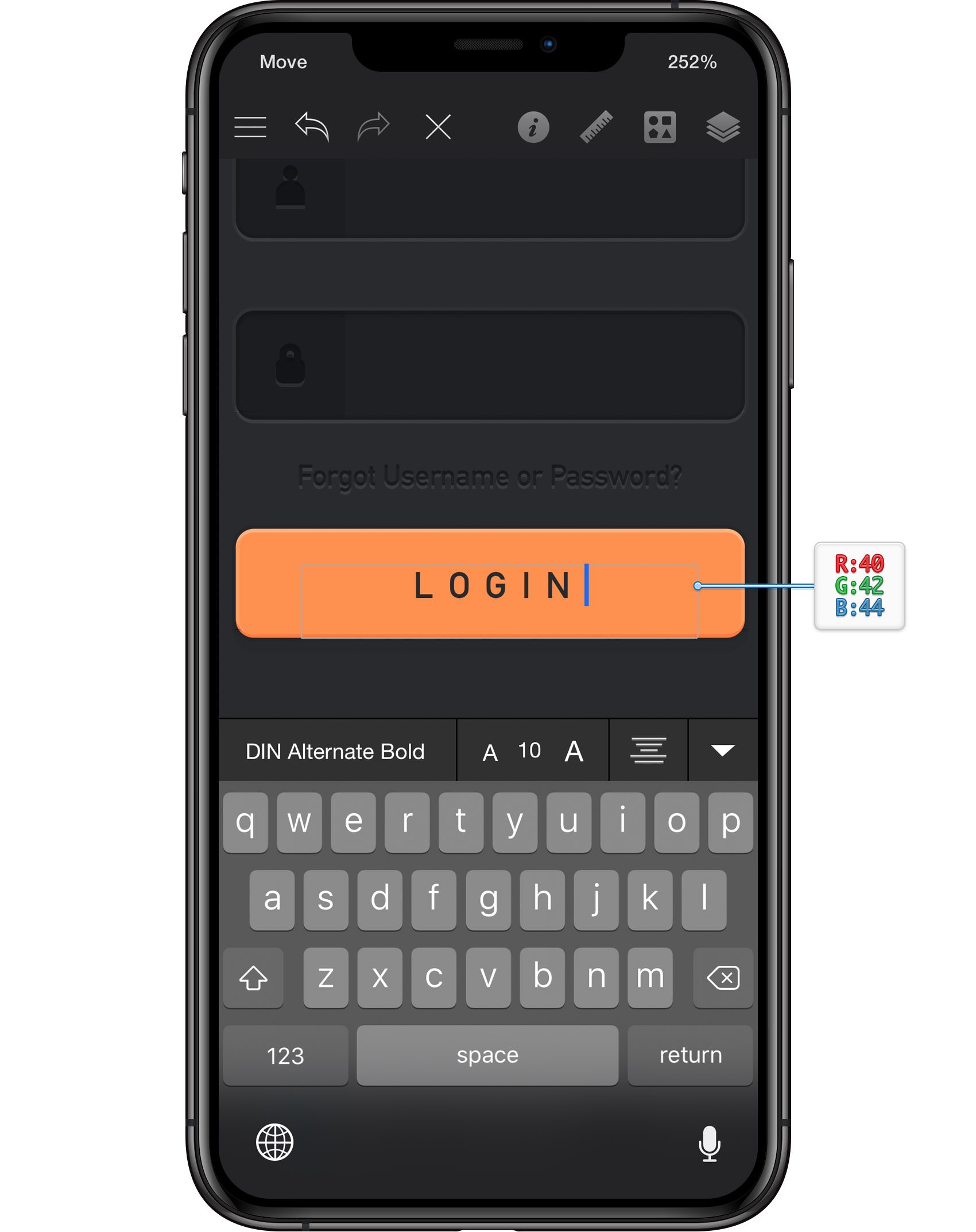

Tap again the Text Tool from your Toolbar and then double tap inside that newly made text field. Select that same Geeza Pro Bold font and set the size to 10. Set the text color to R=40 G=42 B=44 and then simply add the "LOGIN" piece of text. Make sure that it stays selected and open the Text pane from the Appearance panel. Move to the bottom of the pane and set the Character-Spacing to 4. Again, use the Move Tool to select and place this new piece of text roughly as shown in the following image.

Step 36

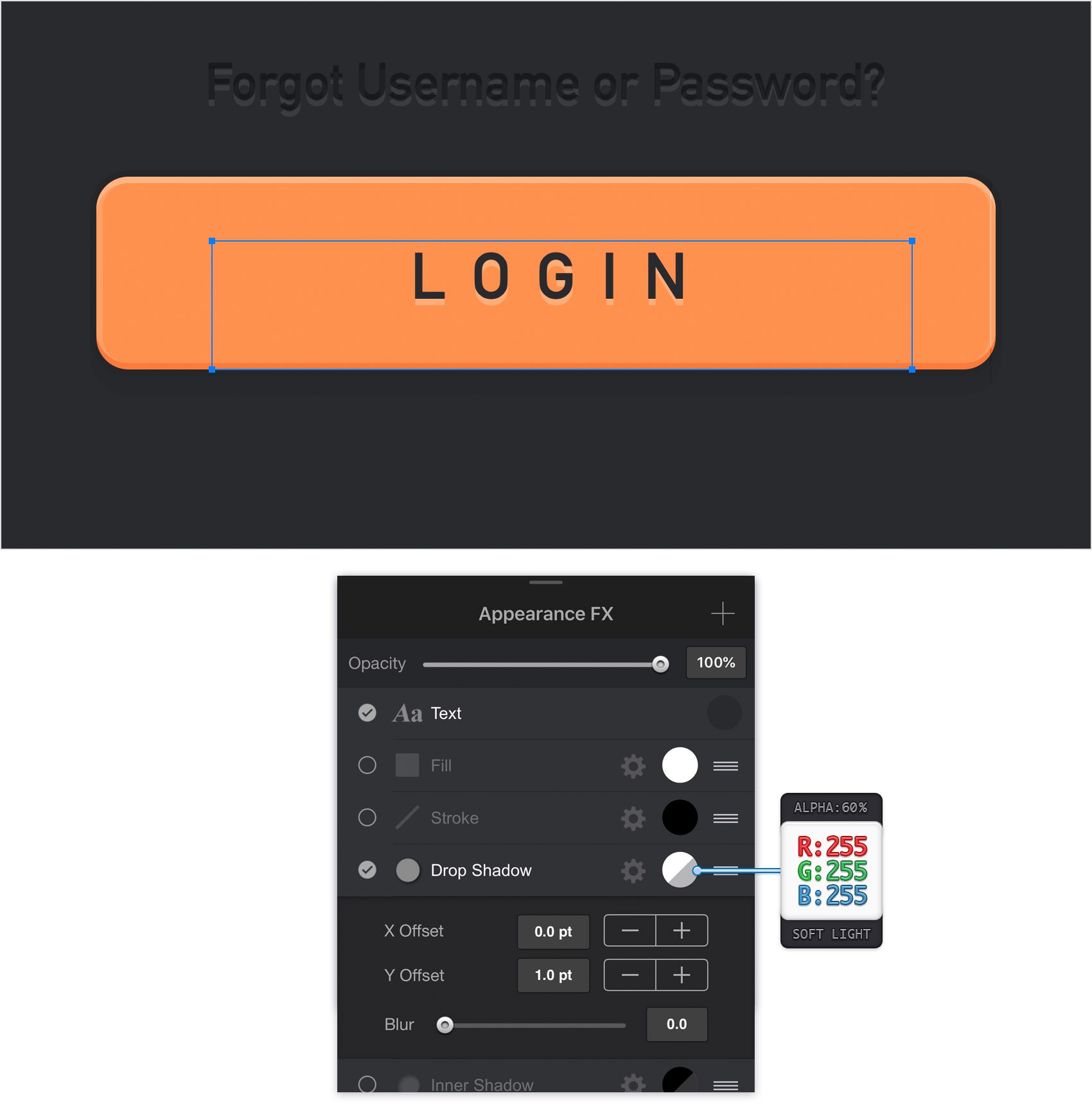

Make sure that your "LOGIN" piece of text stays selected and open the Effects pane. Activate the existing Drop Shadow and enter the attributes shown in the following image.

Step 37

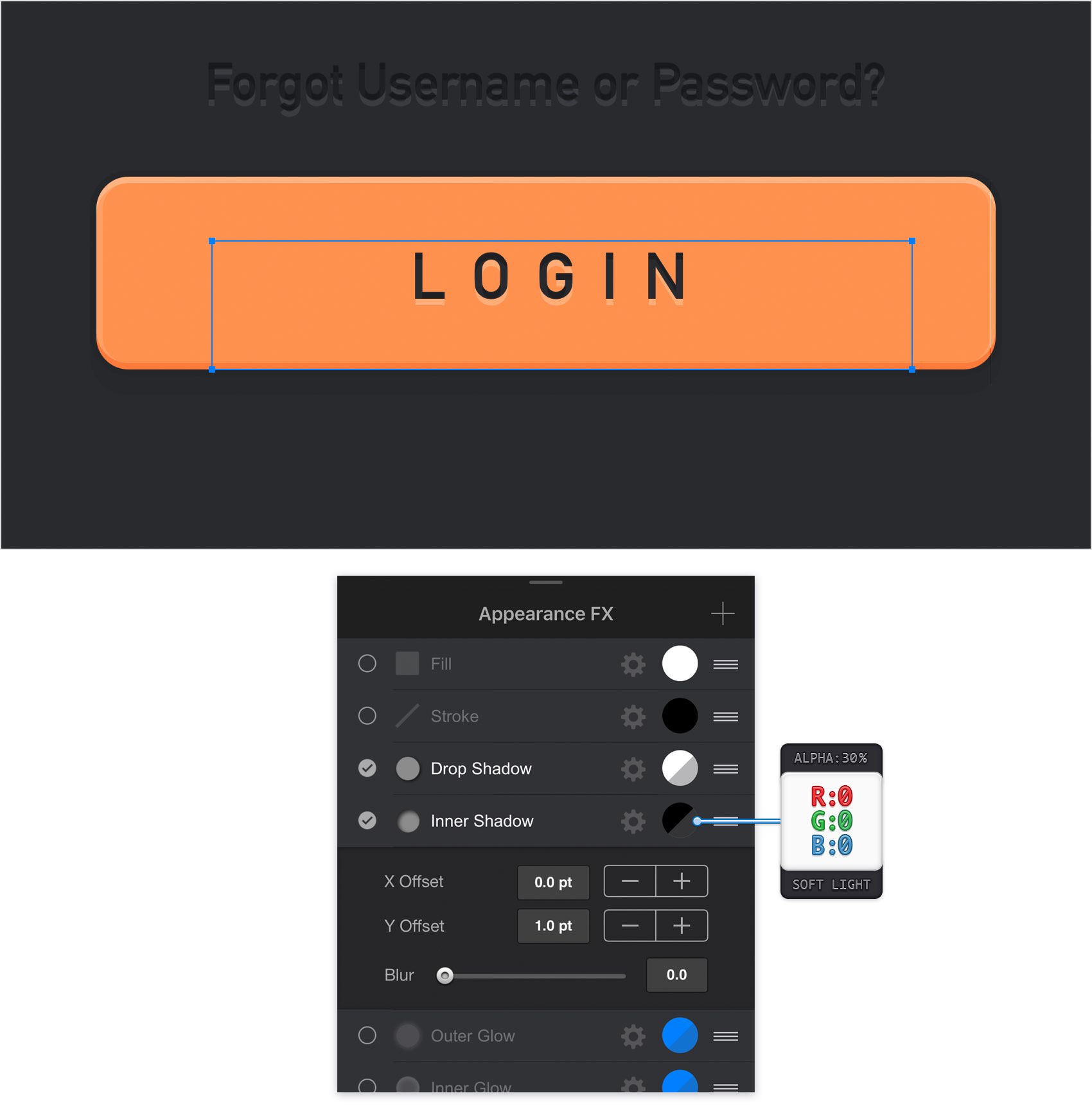

Make sure that your "LOGIN" piece of text stays selected and keep focusing on the Effects pane. Activate the existing Inner Shadow, enter the attributes shown in the following image and you're done.

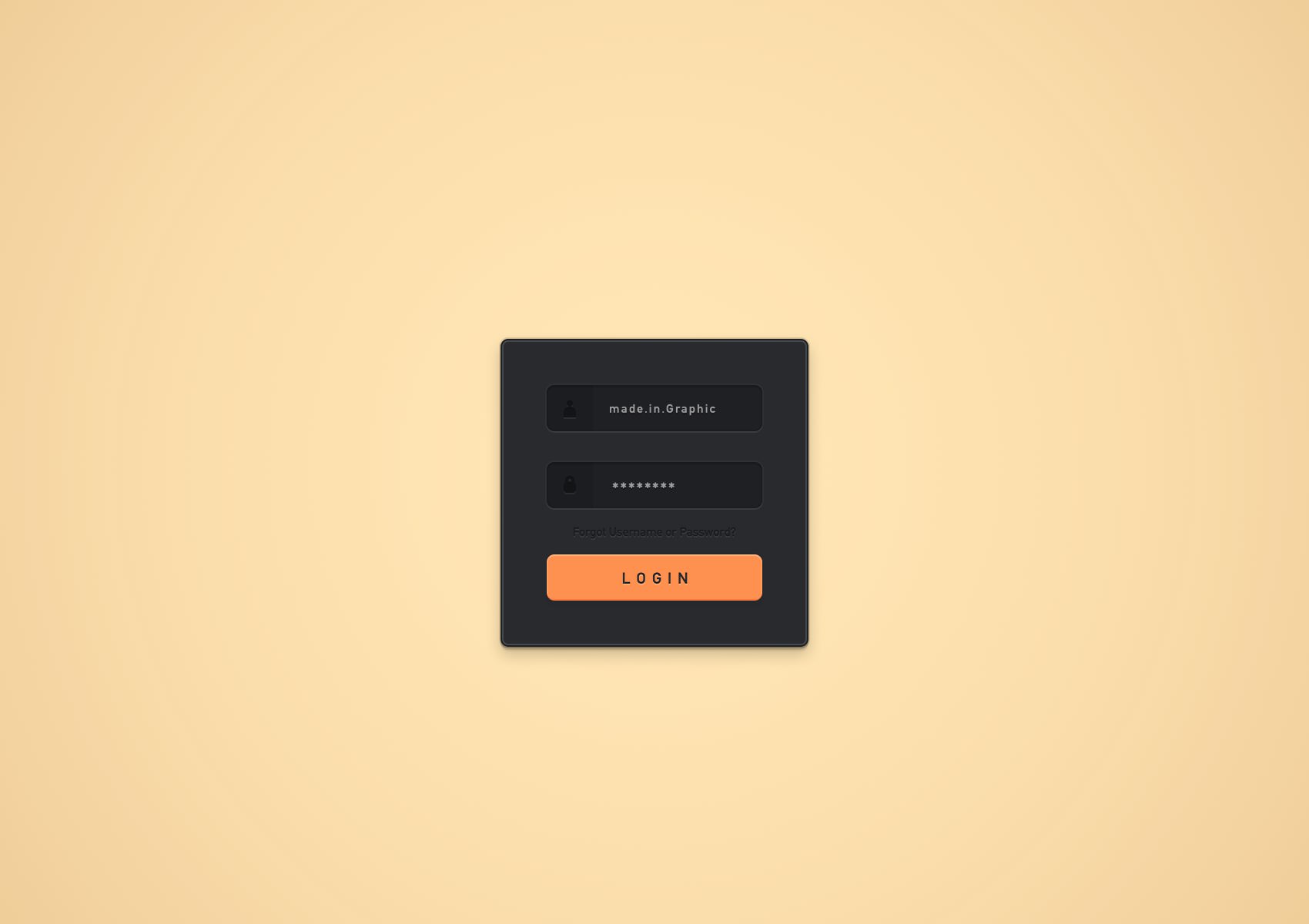

Finished Design

Congratulations, you've finished the tutorial!

Hope you've enjoyed learning some of the techniques and processes presented in these steps. As always, feel free to adjust the final design and make it your own.

Graphic File: loginwidget.idraw
