Create a Login Widget

In the following tutorial you will learn how to create a login widget in Graphic for iPad.

For starters you will learn how to setup a simple grid and how to create two, tiny icons using basic vector shape building techniques along with the Snap to Grid feature. Moving on, you will learn to create the main shapes and how to stylize them using the Effects pane.

Finally, you will learn how to add some simple text and how to stylize it.

Step 1

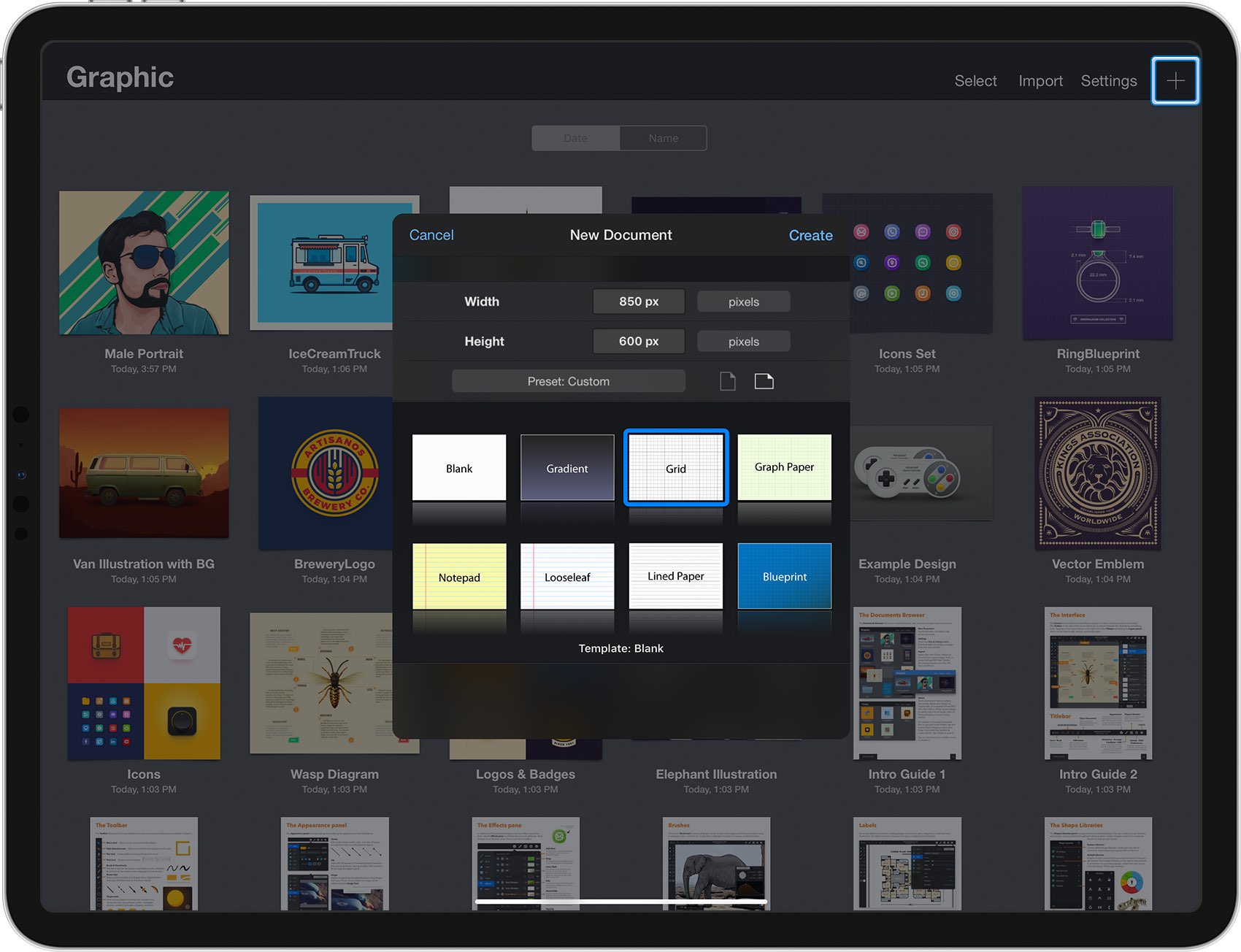

From the Documents Browser, tap the plus button at the top-left corner of the Titlebar and choose the Grid document style.

Focus on the right side of the Titlebar and tap the Settings icon. Go to the Canvas pane, set the Width and Height to 600 px, select Pixels for the base unit, and make sure that the Pixel-Align Strokes feature is disabled. When this setting is enabled, stroked objects are offset slightly to ensure that the stroke is drawn aligned to the pixel grid which guarantees a crisp look.

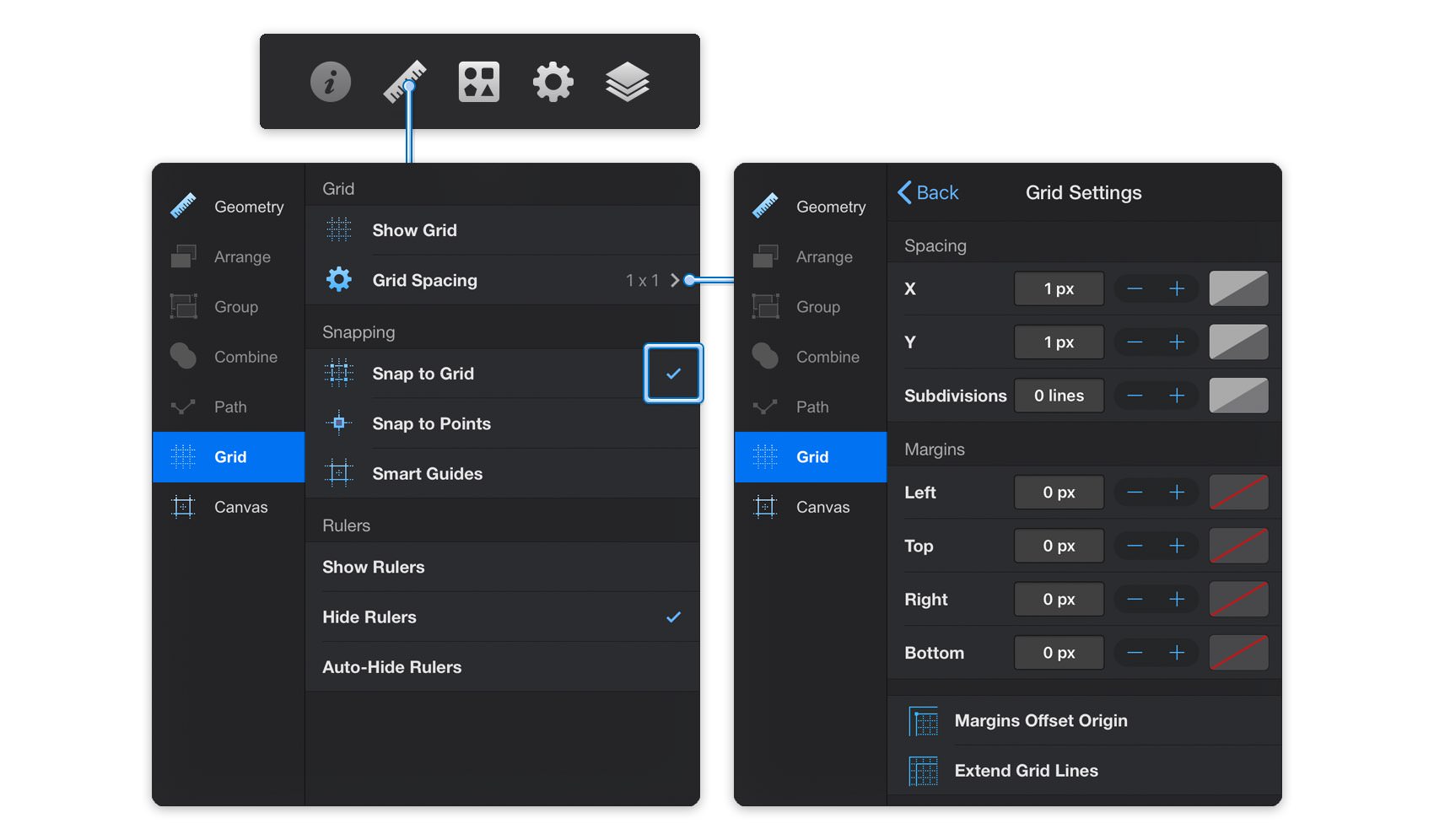

Next, you need to setup the document grid. Tap again that Settings icon and switch to the Grid & Rulers pane. Make sure that the Snap to Grid feature is enabled and keep in mind that this is where you should come whenever you wish to enable or disable the grid or the Snap to Grid. Finally, open that Grid Settings pane, enter 1 px in both Spacing boxes and 0 lines in the Subdivisions box.

Step 2

Focus on the Toolbar and notice that by default the Fill color is set to white while the Line color is set to black. Tap the Fill color well and set its color to black (R=0 G=0 B=0) and then tap the Line color well. Drag the Alpha slider to 0% and this will simply make your line invisible.

Pick the Rounded Rectangle Tool, focus on the newly opened tool pane and drag the Radius slider to 5. Move to yor canvas and simply create an 8 x 11 px shape - the grid and the Snap to Grid feature will ease your work.

Switch to the Rectangle Tool, create an 8 x 4 px shape and place it exactly as shown in the second image.

Step 3

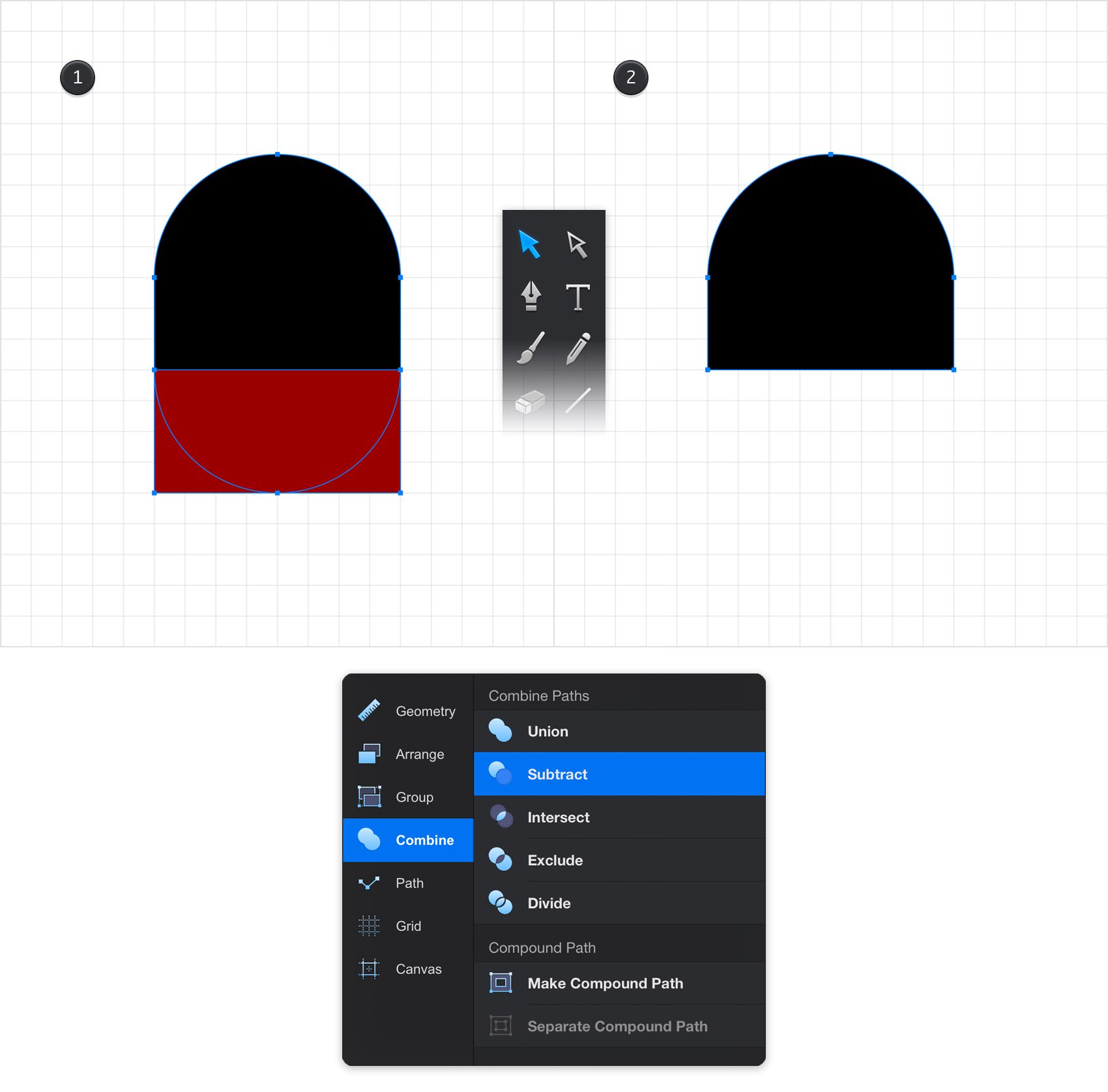

Pick the Move Tool and select both shapes made so far. Focus on the right side of your Titlebar and tap that middle icon. Move to the Combine pane and simply tap the Subtract button.

Step 4

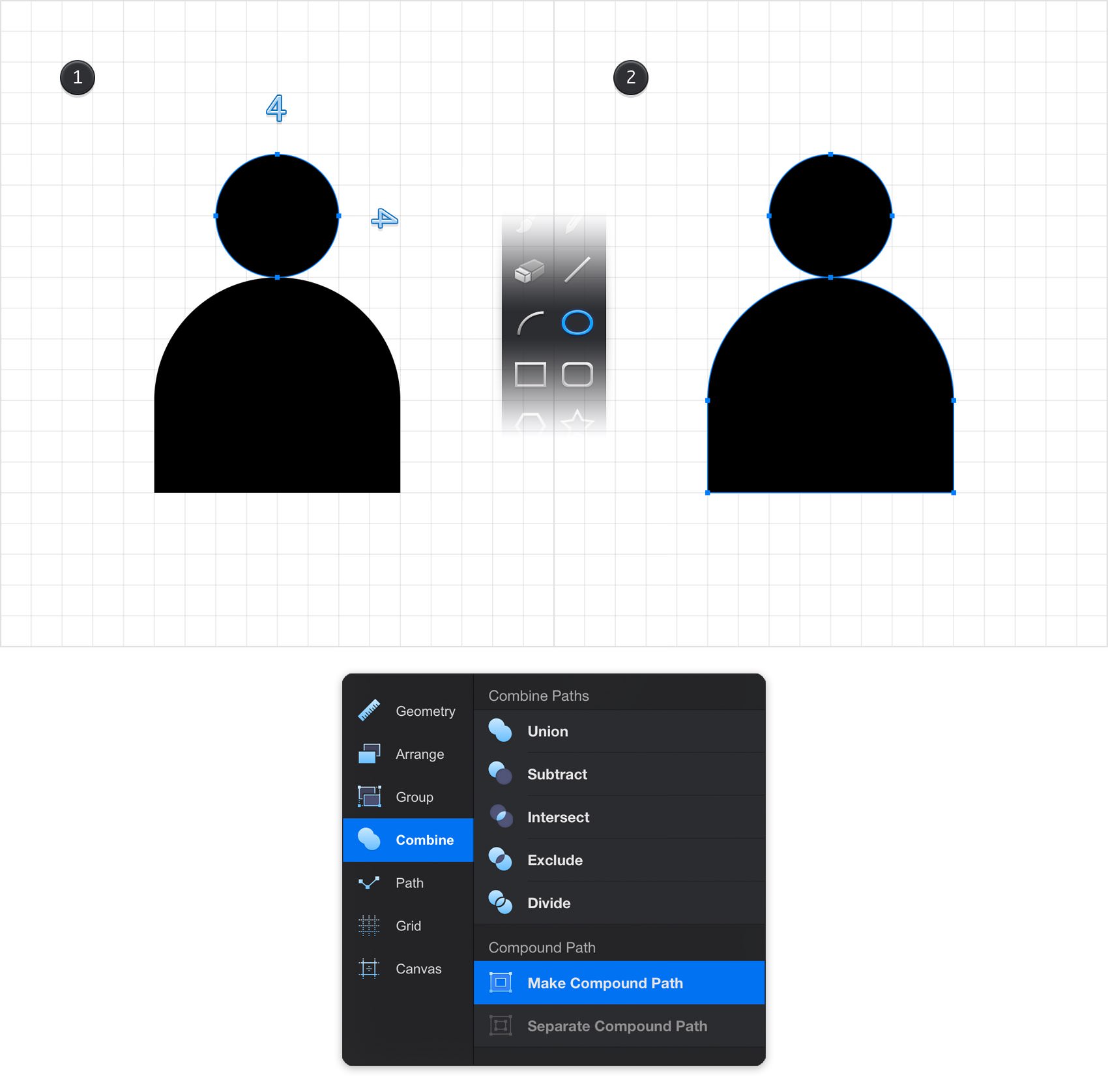

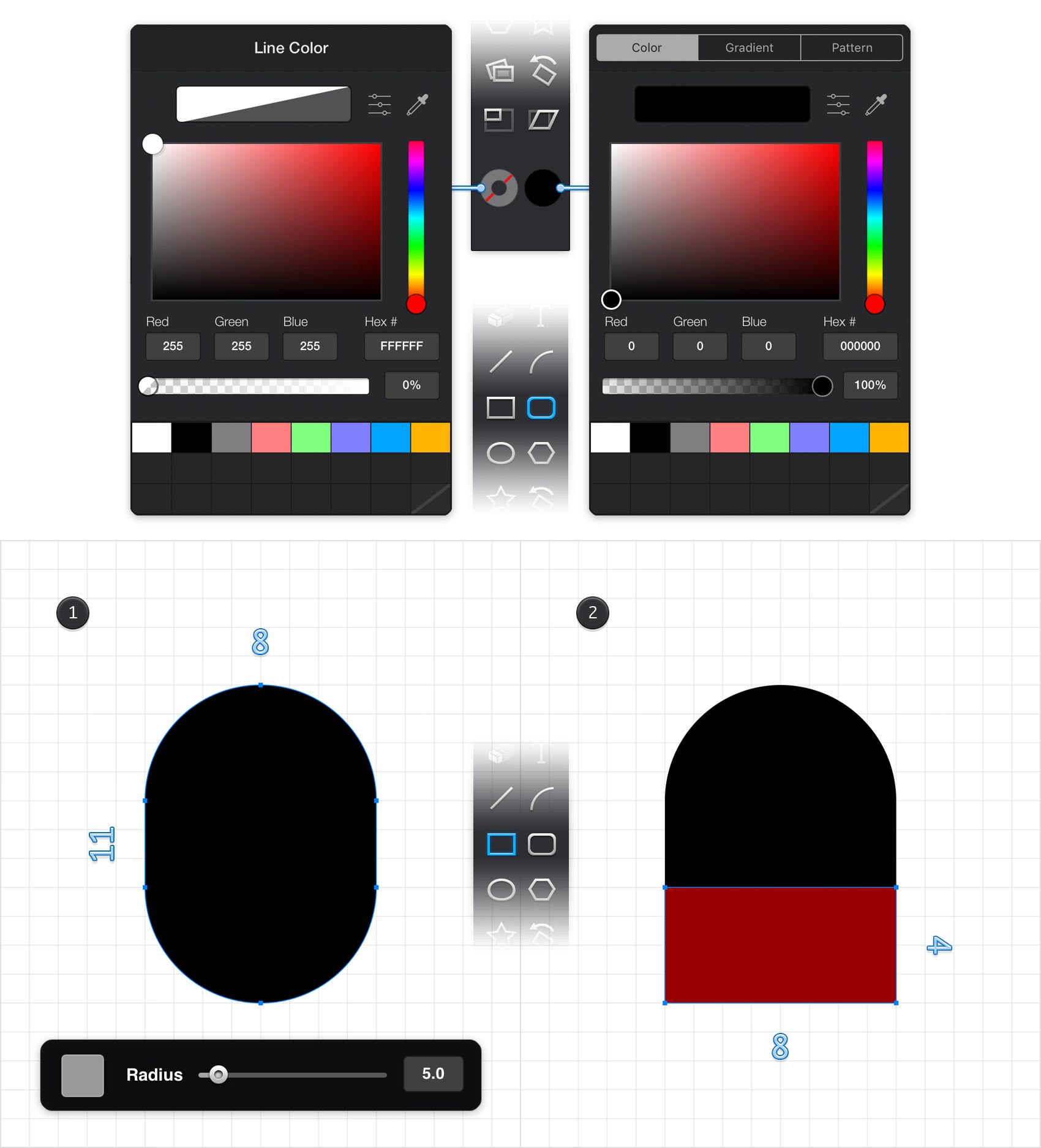

Make sure that the Fill color is still set to black and pick the Ellipse Tool. Create a 4 px circle and place it as shown in the first image.

Select both shapes made so far, go ot the Combine pane and tap the Make Compound Path button.

Step 5

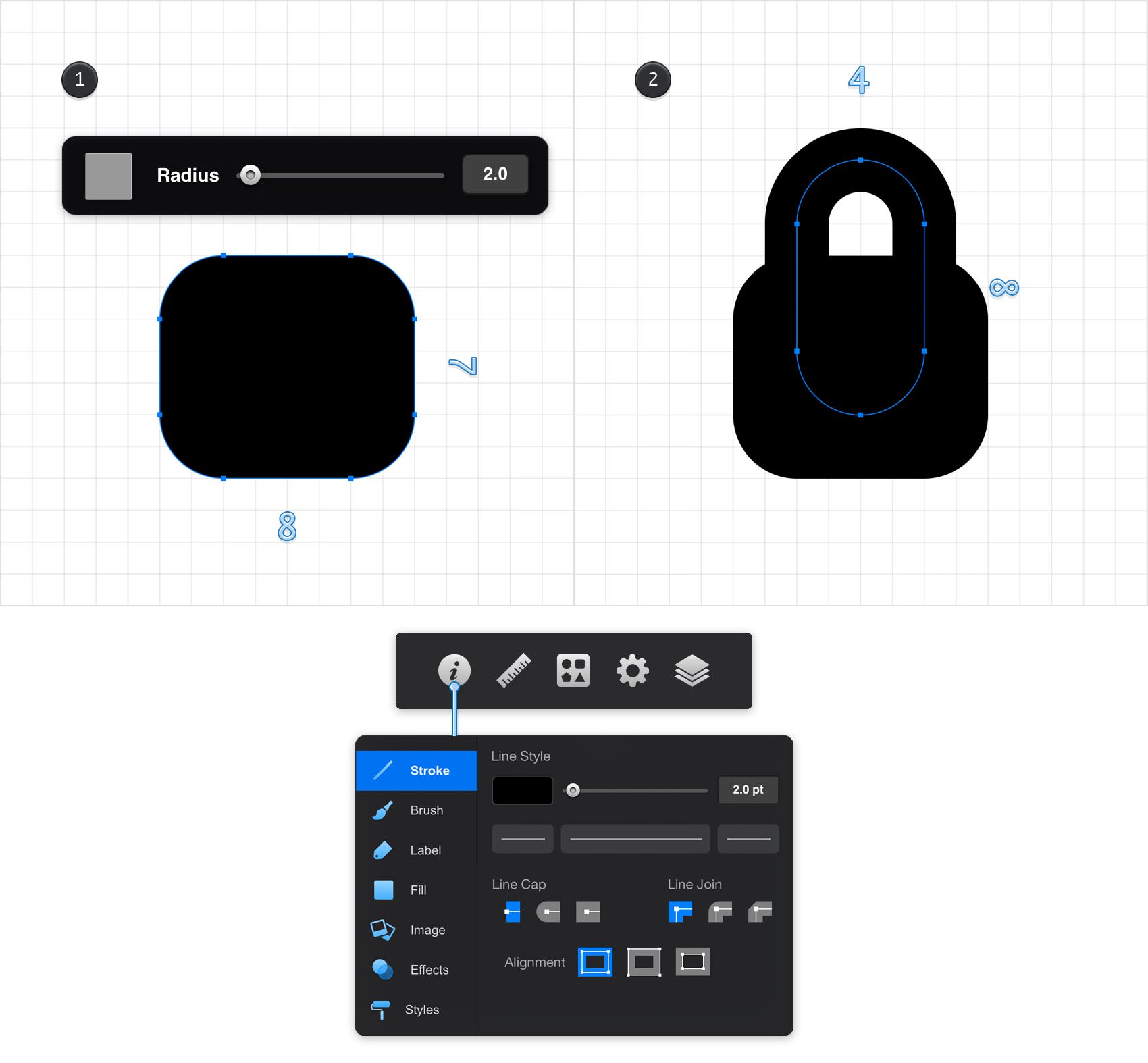

Pick the Rounded Rectangle Tool, set the Radius to 2 px and create an 8 x 7px shape. Using the same tool, create a 4 x 8 px shape and place it as shown in the second image.

Make sure that this second rounded rectangle stays selected, go to the right side of your Titlebar and tap the leftmost icon. Focus on the Appearance pane and tap the color well that stands for the Fill. Drag the Alpha slider to 0% to make it invisible and then go to the Stroke. Set the Weight to 2 pt and then tap the color well that stands for the Stroke. Drag the Alpha slider to 100% and be sure that the the color is set to black.

Step 6

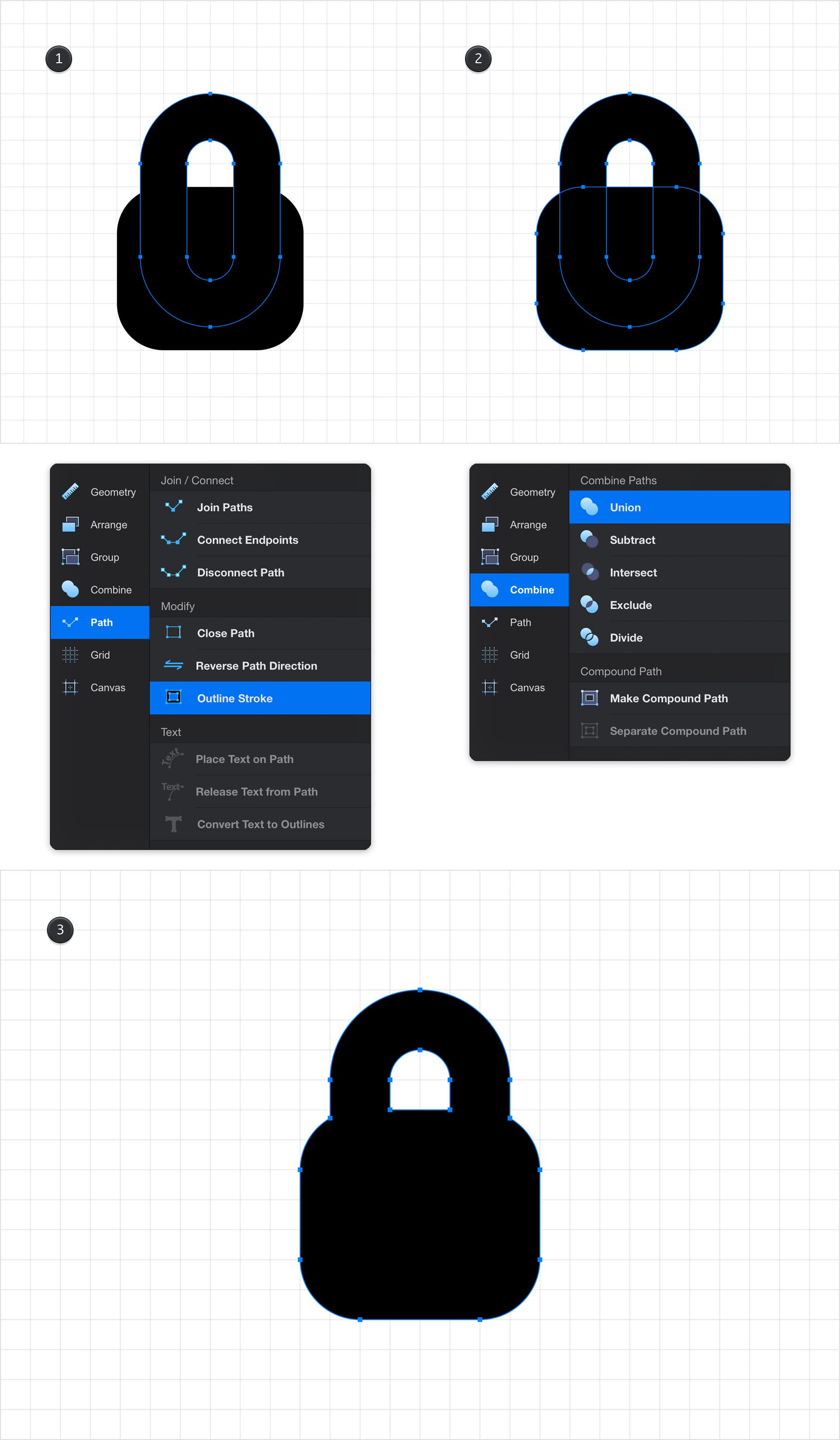

Reselect the rounded rectangle with the stroke, focus on the Path pane and tap the Outline Stroke button.

Select the resulting shape along with that tiny, rounded rectangle and tap the Union button from the Combine pane.

Step 7

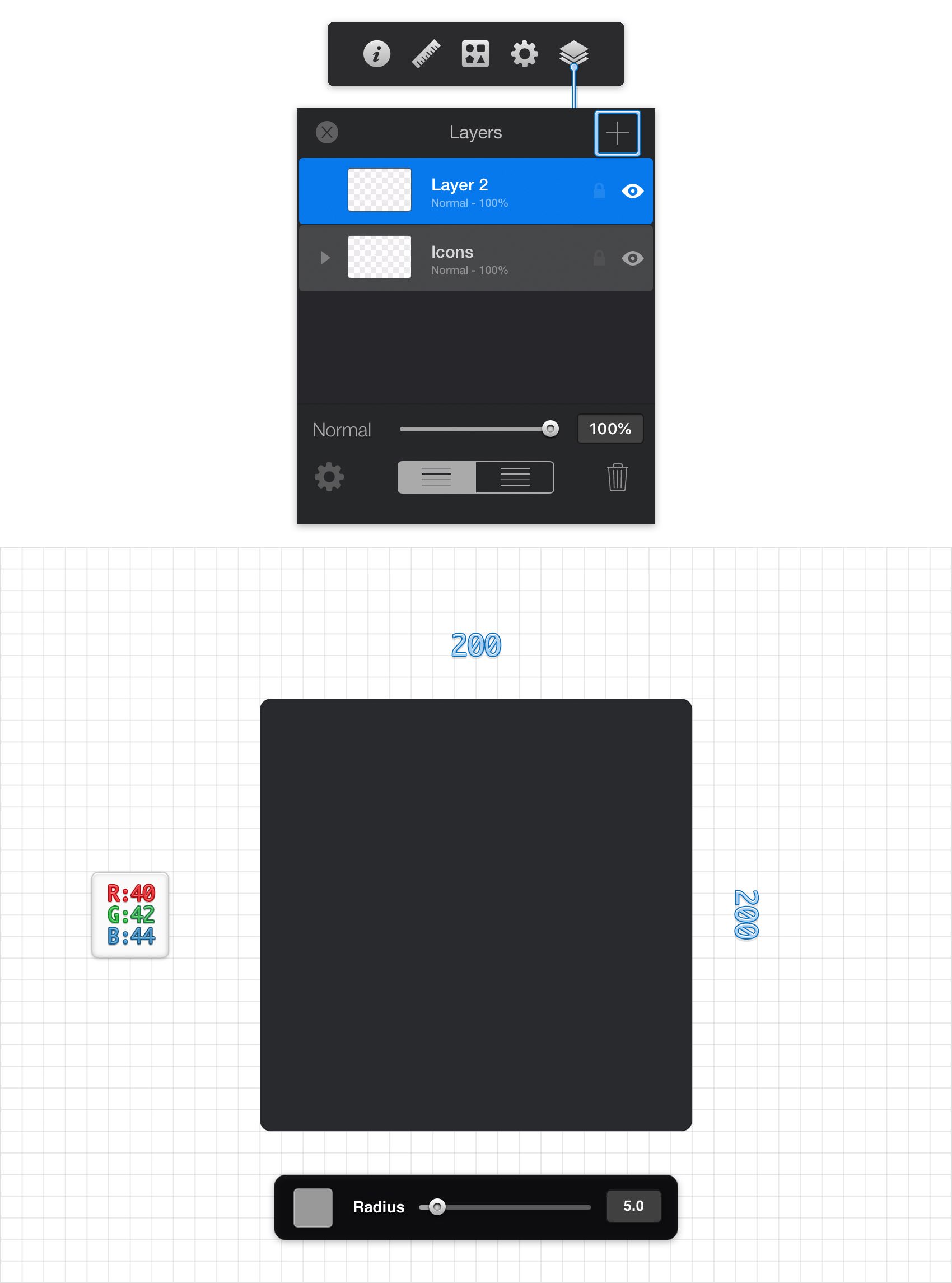

Focus on the right side of your Titlebar and simply tap the rightmost icon to open the Layers panel. Tap the name of the existing layer and simply rename it "_Icon_s". Keep focusing on the Layers panel and simply tap the plus icon that lies in the top, right corner of the panel to add a second layer. Make sure that this new layer stays selected and then close the Layers panel.

For the following steps you will need a grid every 10 px. This simply means that you need to return to the Grid & Rulers pane, open the Grid Settings pane and enter 10 px in both Spacing boxes.

Focus on your Toolbar, be sure that the Line is invisible and set the Fill color to R=40 G=42 B=44 . Pick the Rounded Rectangle Tool, set the Radius to 5 and then create a 200 px rounded square.

Step 8

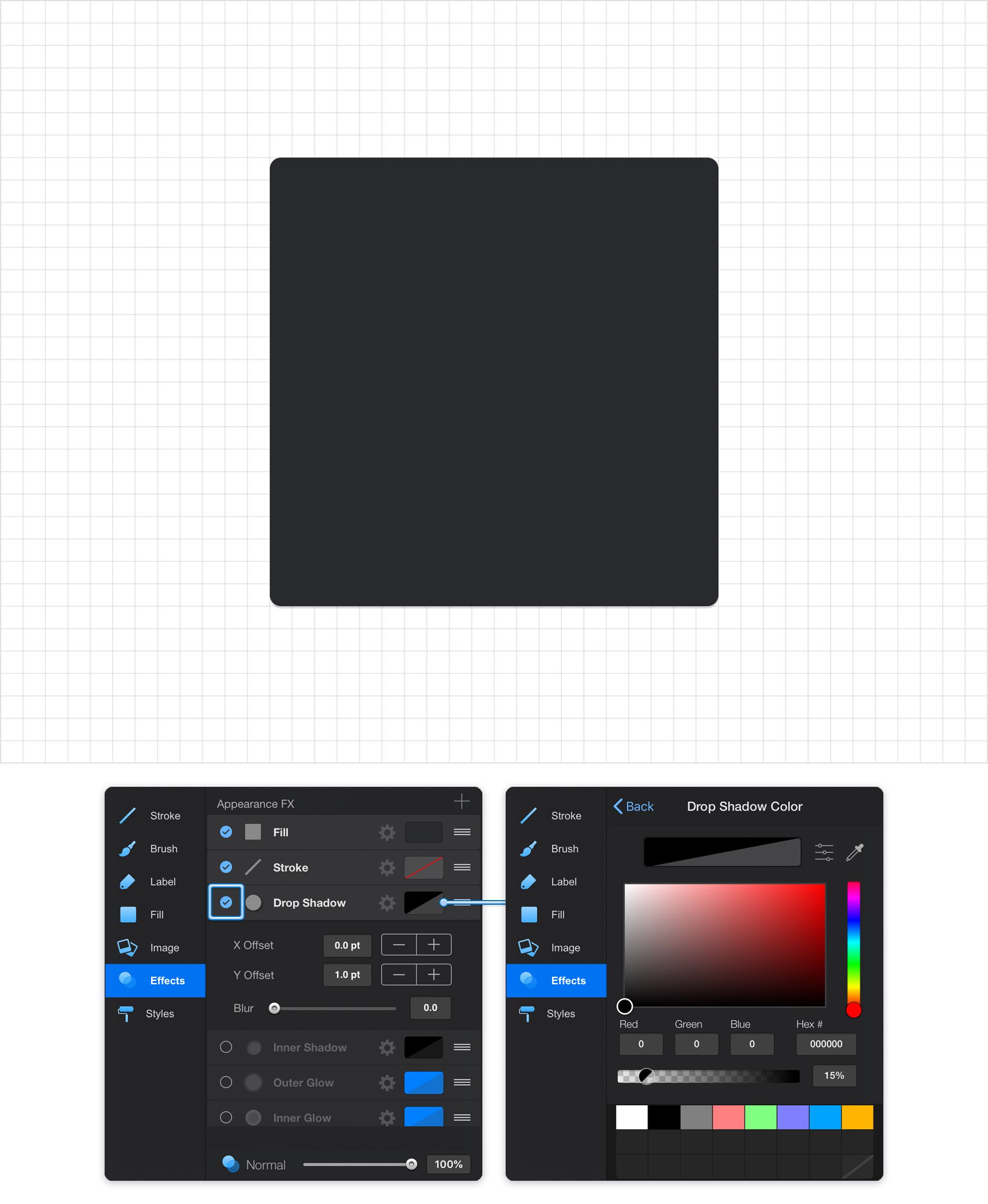

Make sure that your rounded square stays selected, focus on the Effects pane and simply check the box that stands for the existing Drop Shadow to activate it.

Enter 1 in the Y box and 0 in the other two boxes and then tap the color well that stands for this effect. Make sure that the color is set to black and drag the Alpha slider to 15%.

Step 9

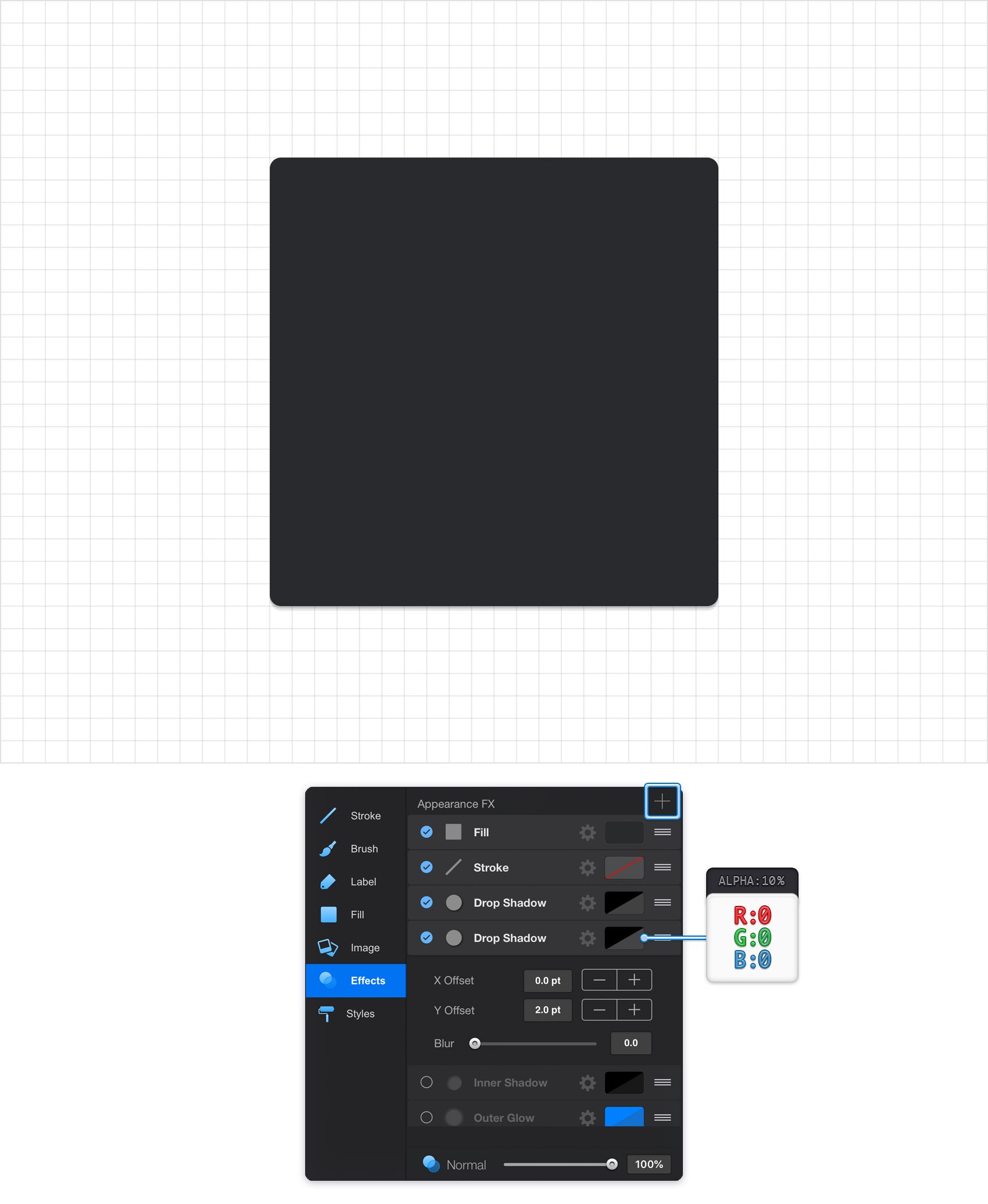

Make sure that your rounded square stays selected, focus on the Effects pane and add a second Drop Shadow using the plus button that lies in the bottom, right corner of the pane.

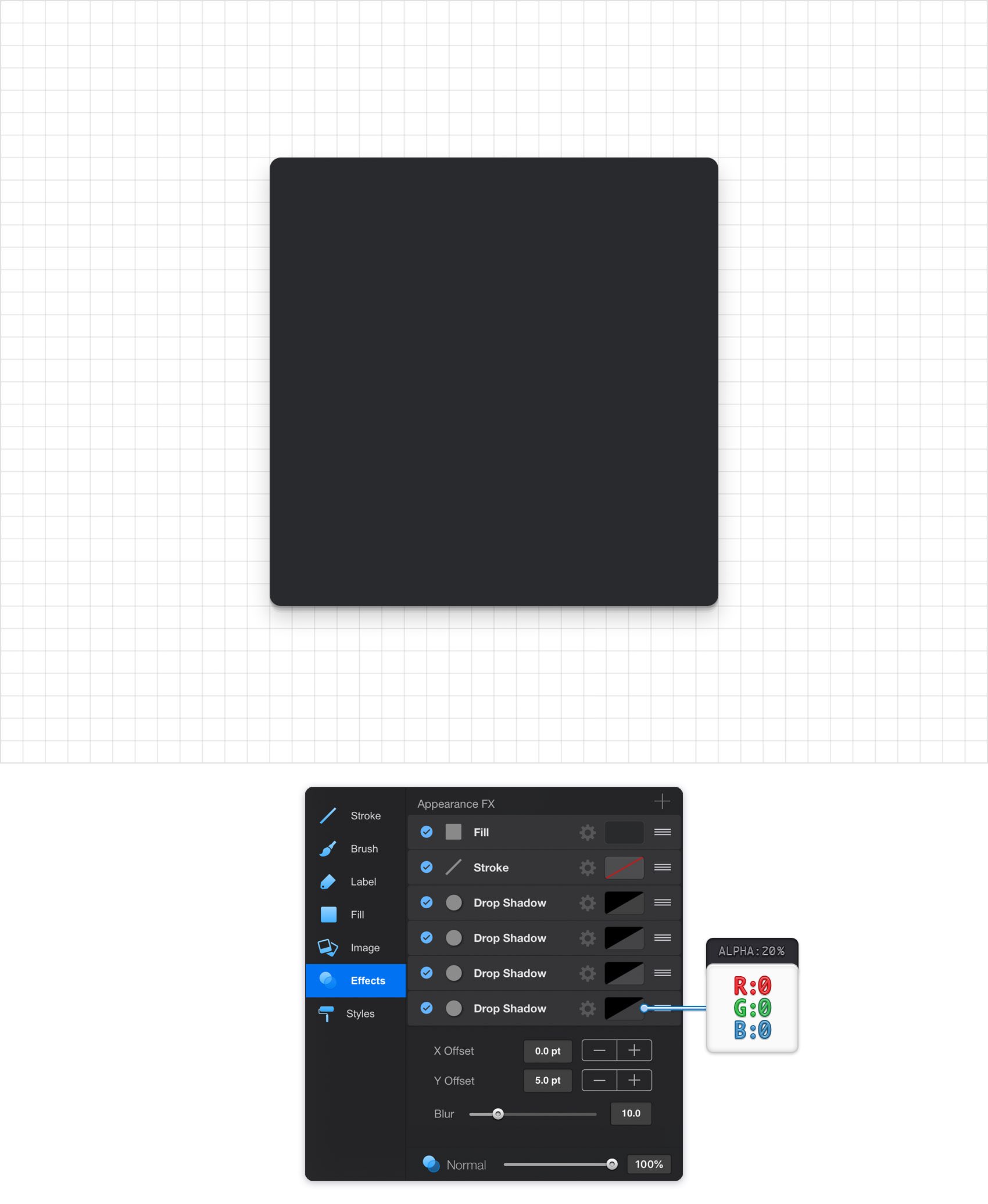

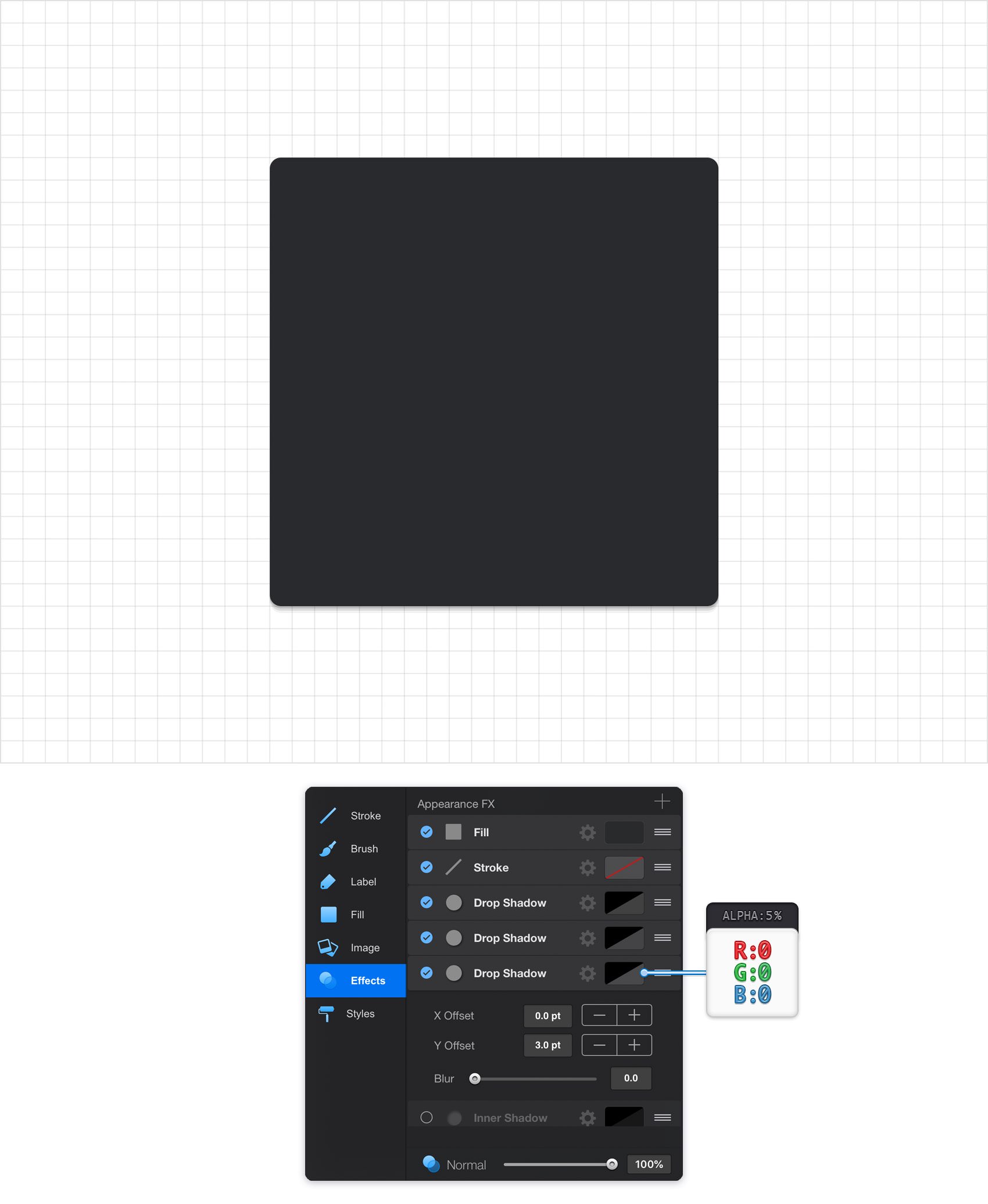

Select this new effect and enter the attributes shown in the following image.

Step 10

Make sure that your rounded square stays selected, focus on the Effects pane and add a third Drop Shadow. Select this new effect and enter the attributes shown in the following image.

Step 11

Make sure that your rounded square stays selected, focus on the Effects pane and add a fourth Drop Shadow. Select this new effect and enter the attributes shown in the following image.

Step 12

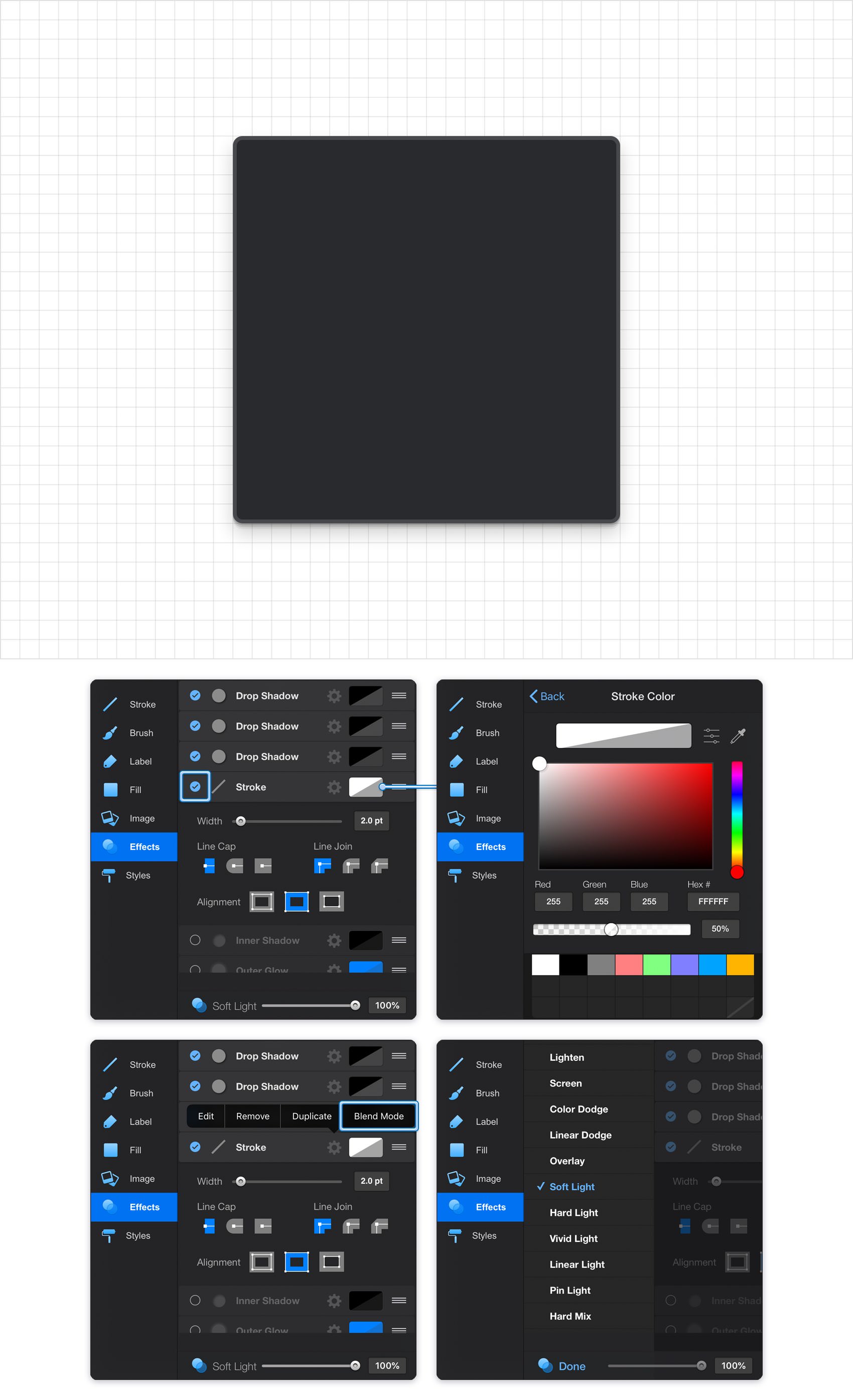

Make sure that your rounded square stays selected and focus on the Effects pane. Select the existing Stroke and drag it below the active Drop Shadow effects.

Drag the Width slide to 2 pt, tap the Inside Alignment button and then tap the color well that stands for this Stroke. Replace the existing color with white (R=255 G=255 B=255) and drag the Alpha slider at 50%. Return to the Effects pane and tap the cogwheel icon that stands for this Stroke. Tap Blend Mode from the newly opened context menu, select Soft Light from that list, and then tap that Done button. Changing this blend mode will simply lower the contrast between your stroke and that fill.

Step 13

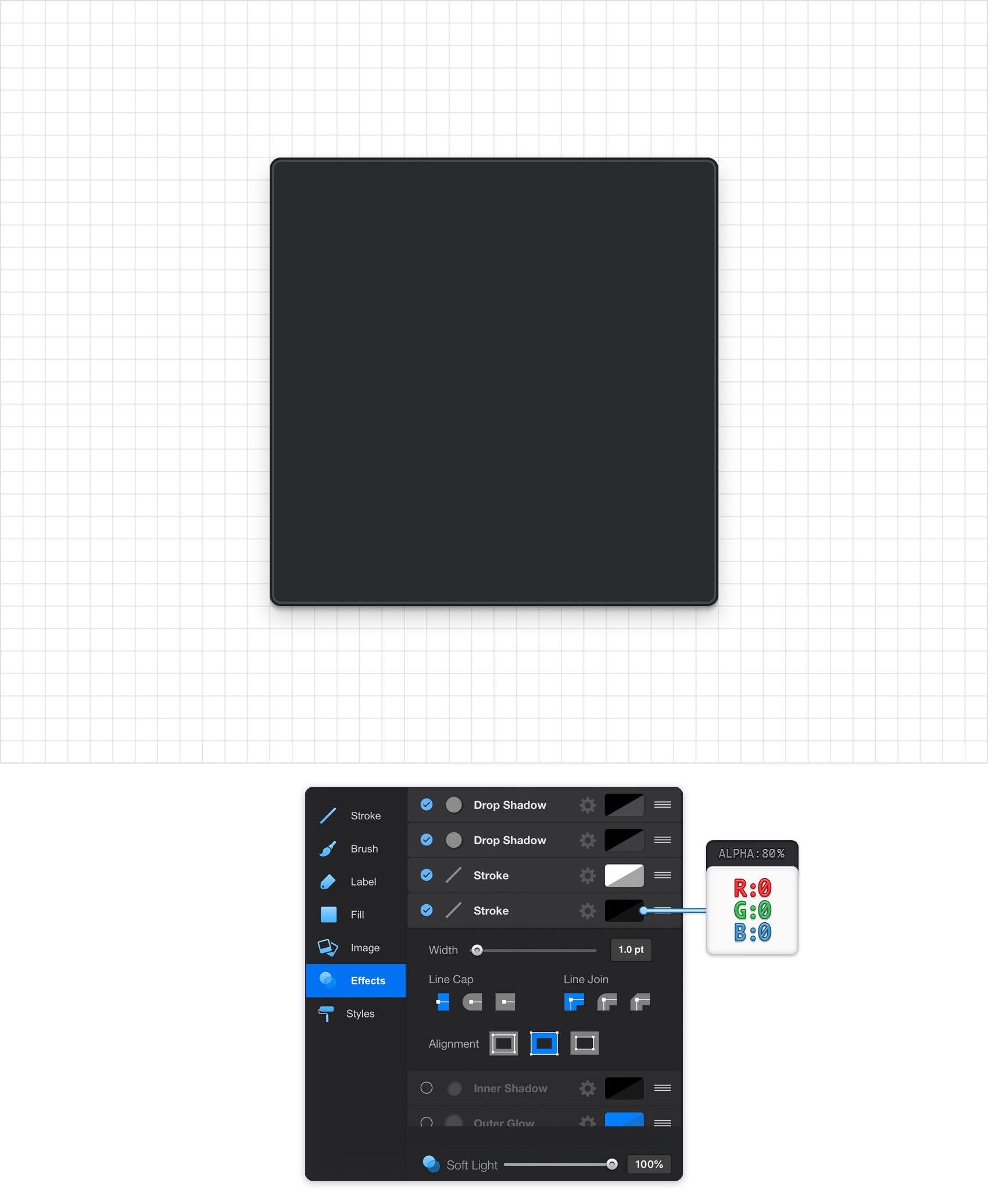

Make sure that your rounded square stays selected, focus on the Effects pane and add a second Stroke. Drag it below the existing Stroke and then enter the attributes shown in the following image.

Step 14

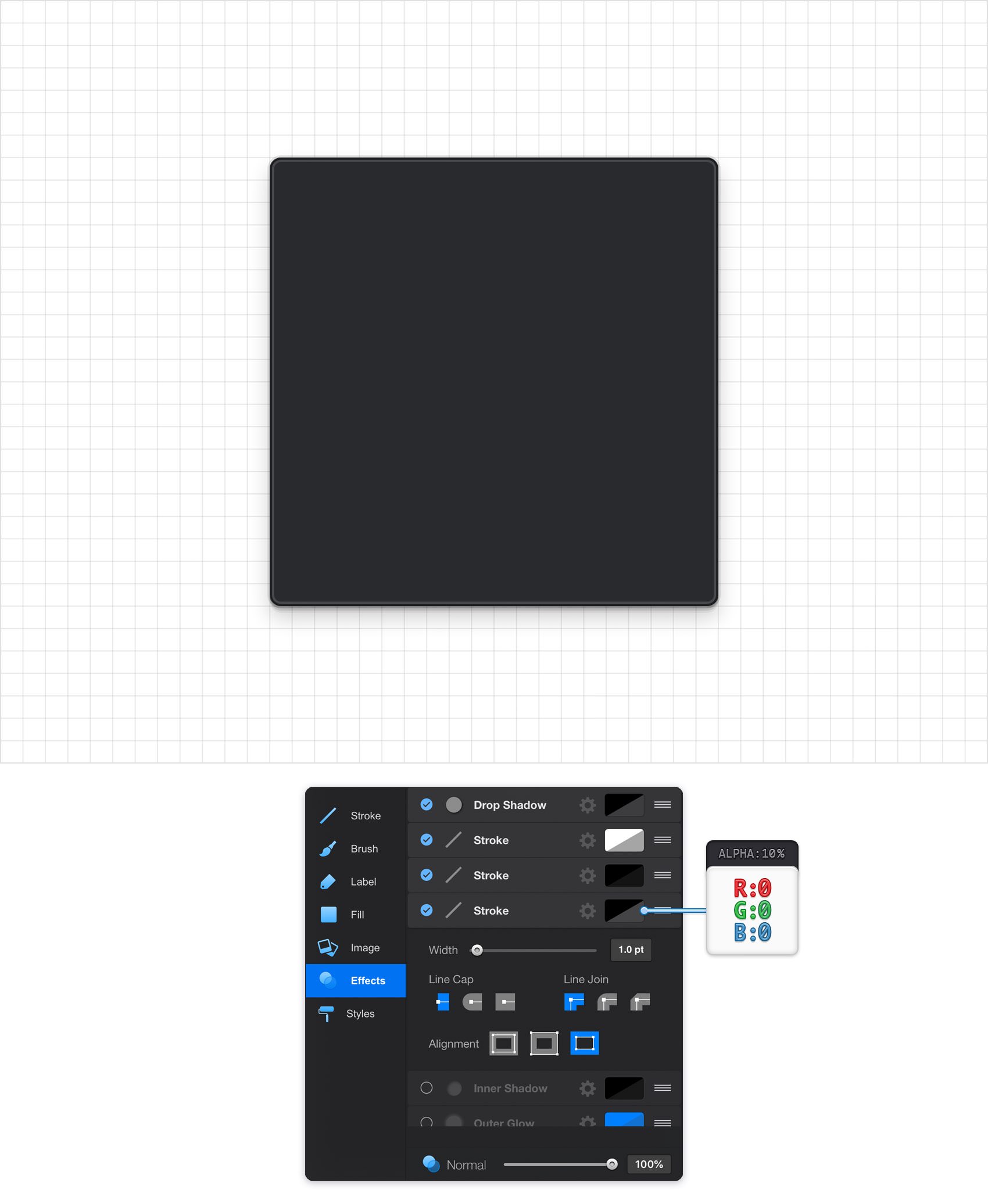

Make sure that your rounded square stays selected, focus on the Effects pane and add a third Stroke. Drag it below the existing strokes and then enter the attributes shown in the following image.

Step 15

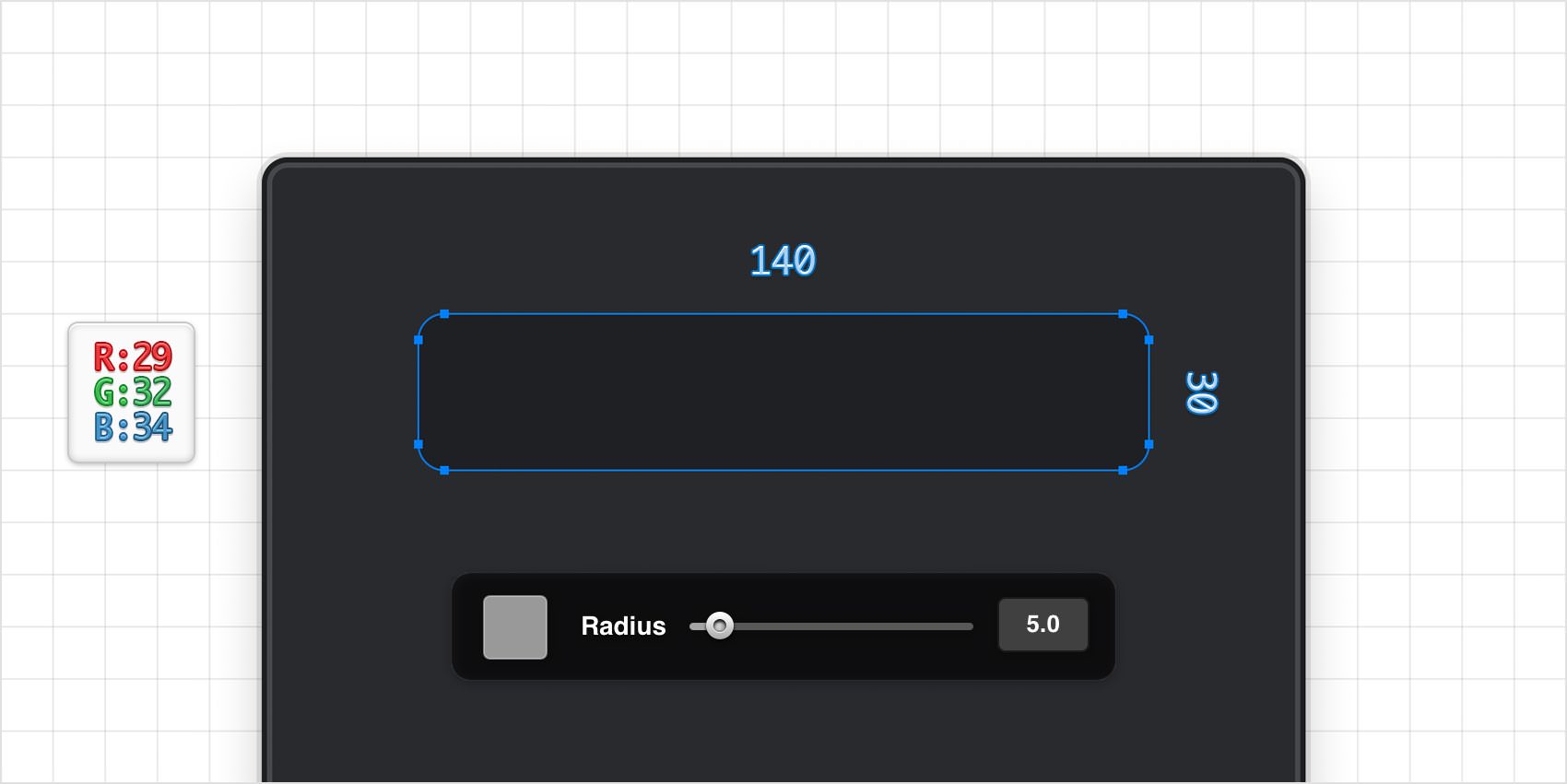

Pick the Rounded Rectangle Tool and make sure that the Radius is still set to 5. Create a 140 x 30 px shape, set the Fill color to R=29 G=32 B=34 and place it as shown in the following image.

Step 16

Make sure that your smaller, rounded rectangle is still selected, focus on the left side of your Titlebar and tap that paperclip icon to open the Edit pane. Use the Copy and the Paste in Place commands to add a copy of your selected shape in the same place. Return to your Toolbar, make sure that the Line is still invisible and pick a random blue for the Fill color.

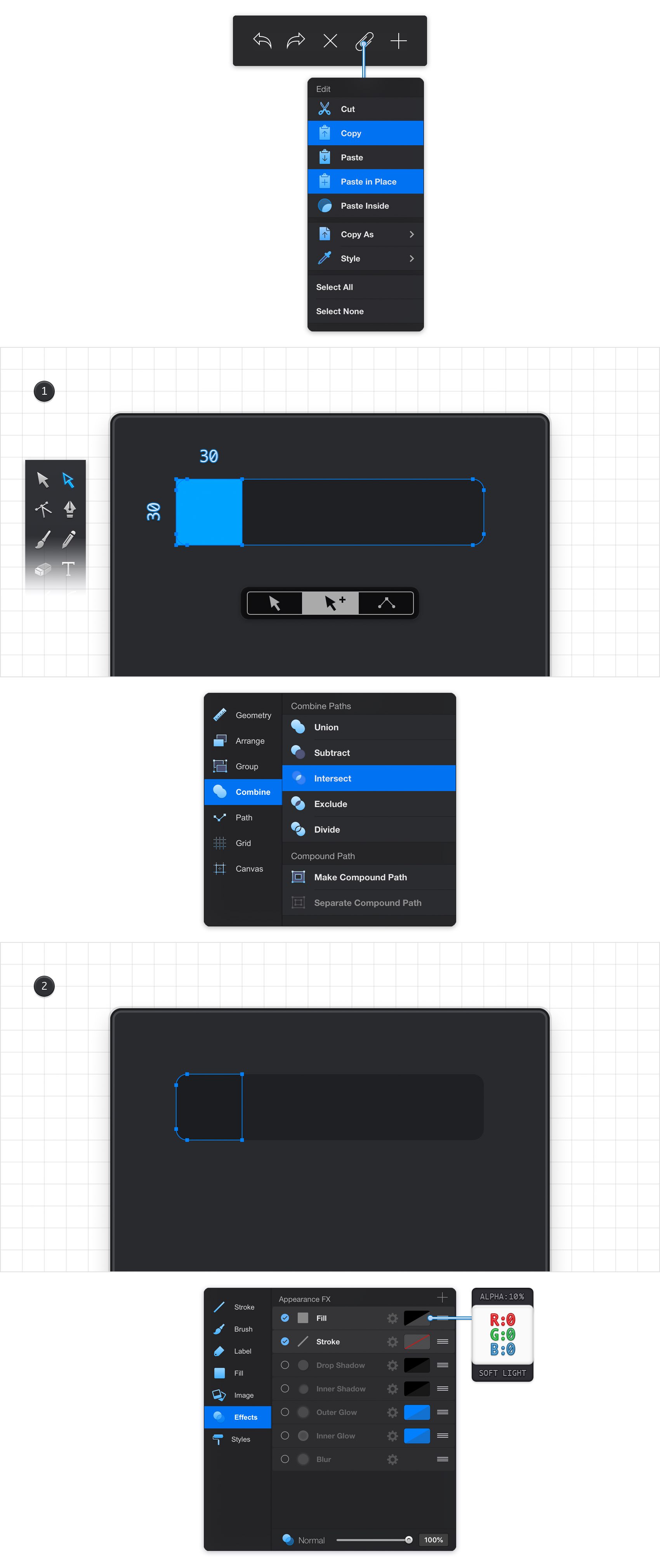

Pick the Rectangle Tool, create a 30 px square and place it exactly as shown in the first image. Switch to the Path Selection Tool, focus on the newly opened tool pane and activate the Add to Selection mode. Select both shapes made in this step, go to the Combine pane and tap the Intersect button.

Make sure that the resulting shape stays selected and focus on the Effects pane. Tap the Fill color well, make sure that the color is set to black, drag the Apha slider 10% and change the Blend Mode to Soft Light.

Step 17

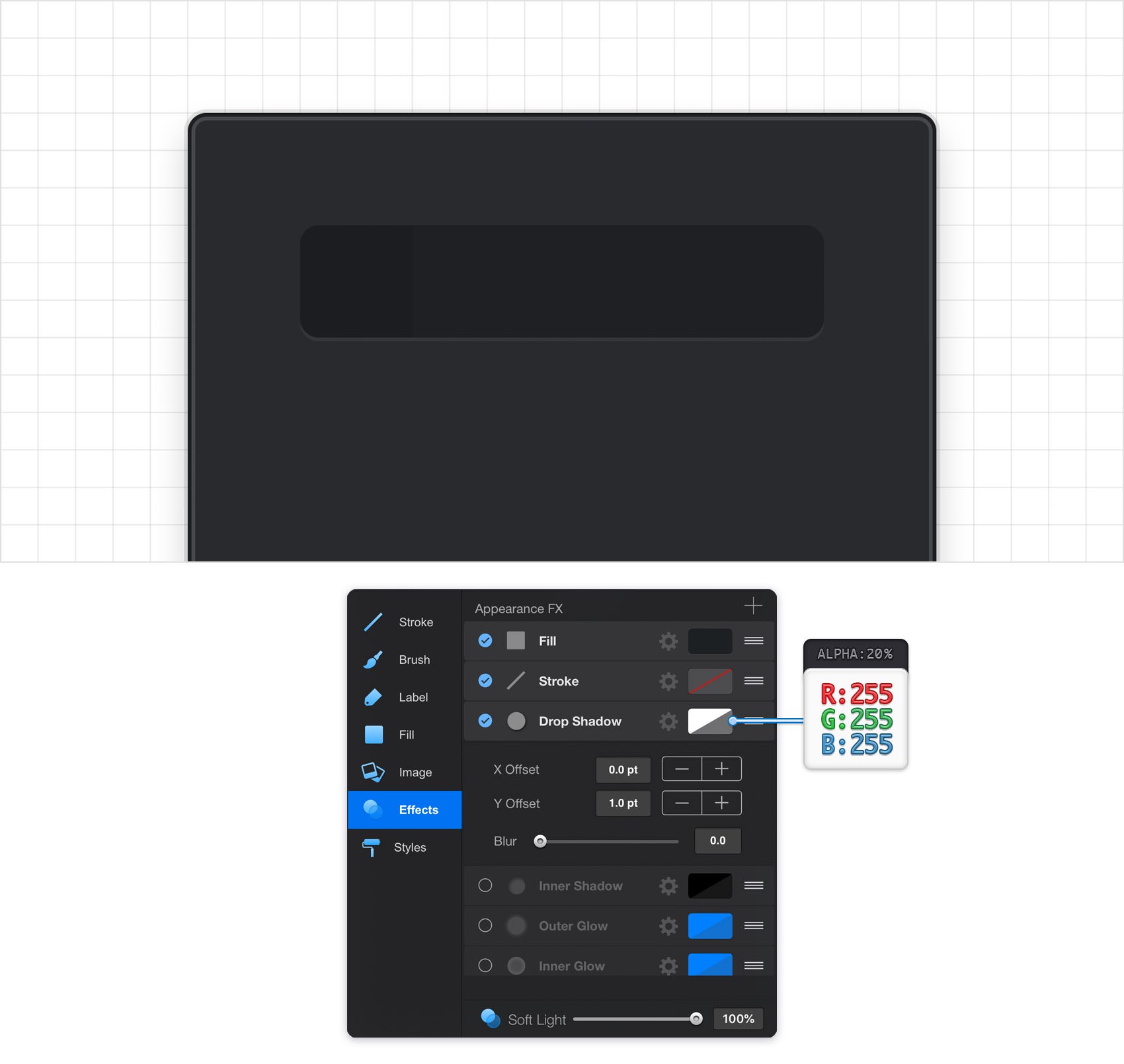

Select your smaller, rounded rectangle and focus on the Effects pane. Activate the existing Drop Shadow and enter the attributes shown in the following image.

Step 18

Make sure that your smaller, rounded rectangle is still selected and focus on the Effects pane. Activate the existing Inner Shadow effect and enter the attributes shown in the following image.

Step 19

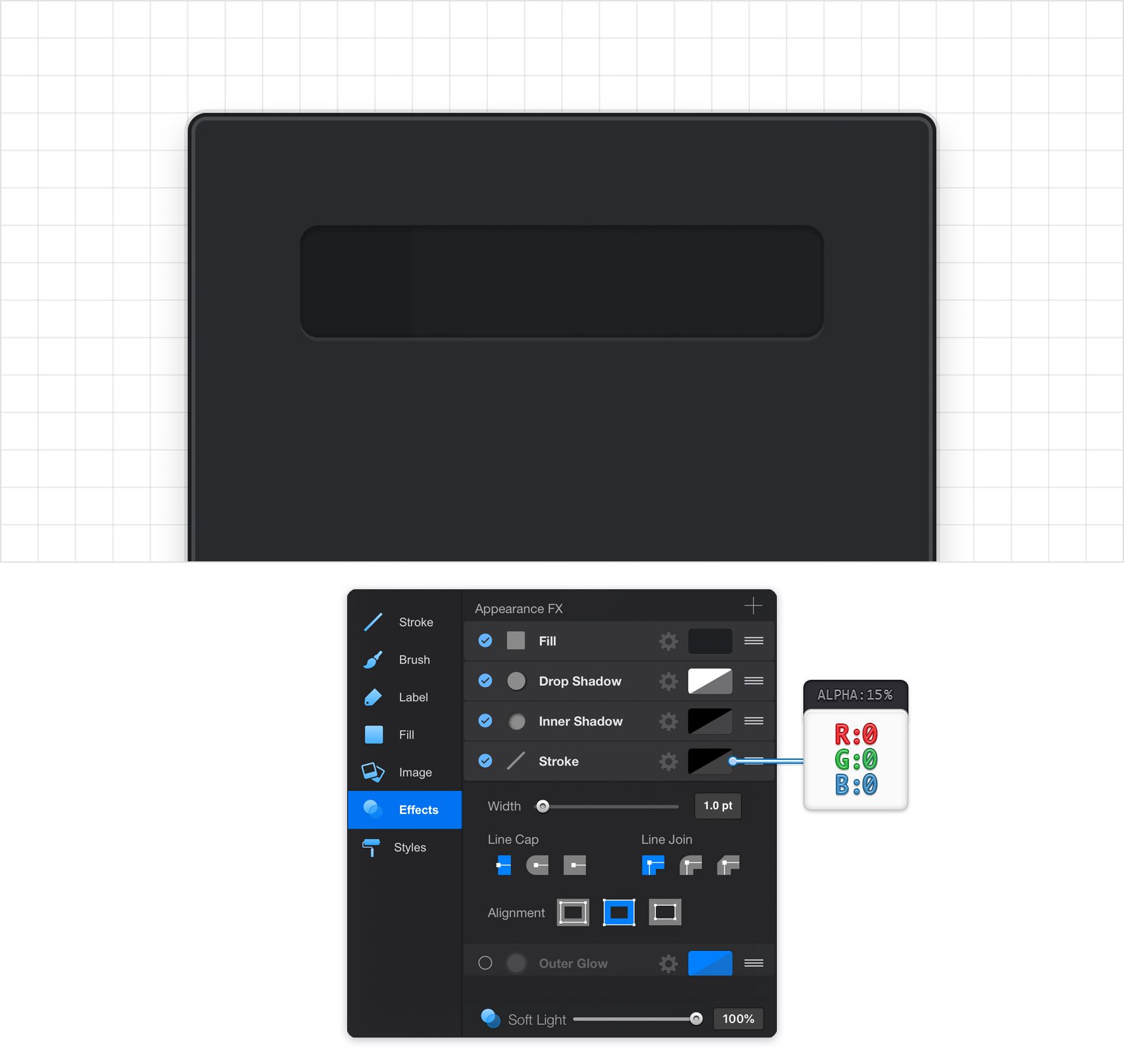

Make sure that your smaller, rounded rectangle is still selected and focus on the Effects pane. Select the Stroke, drag it below the active effects and then enter the attributes shown in the following image.

Step 20

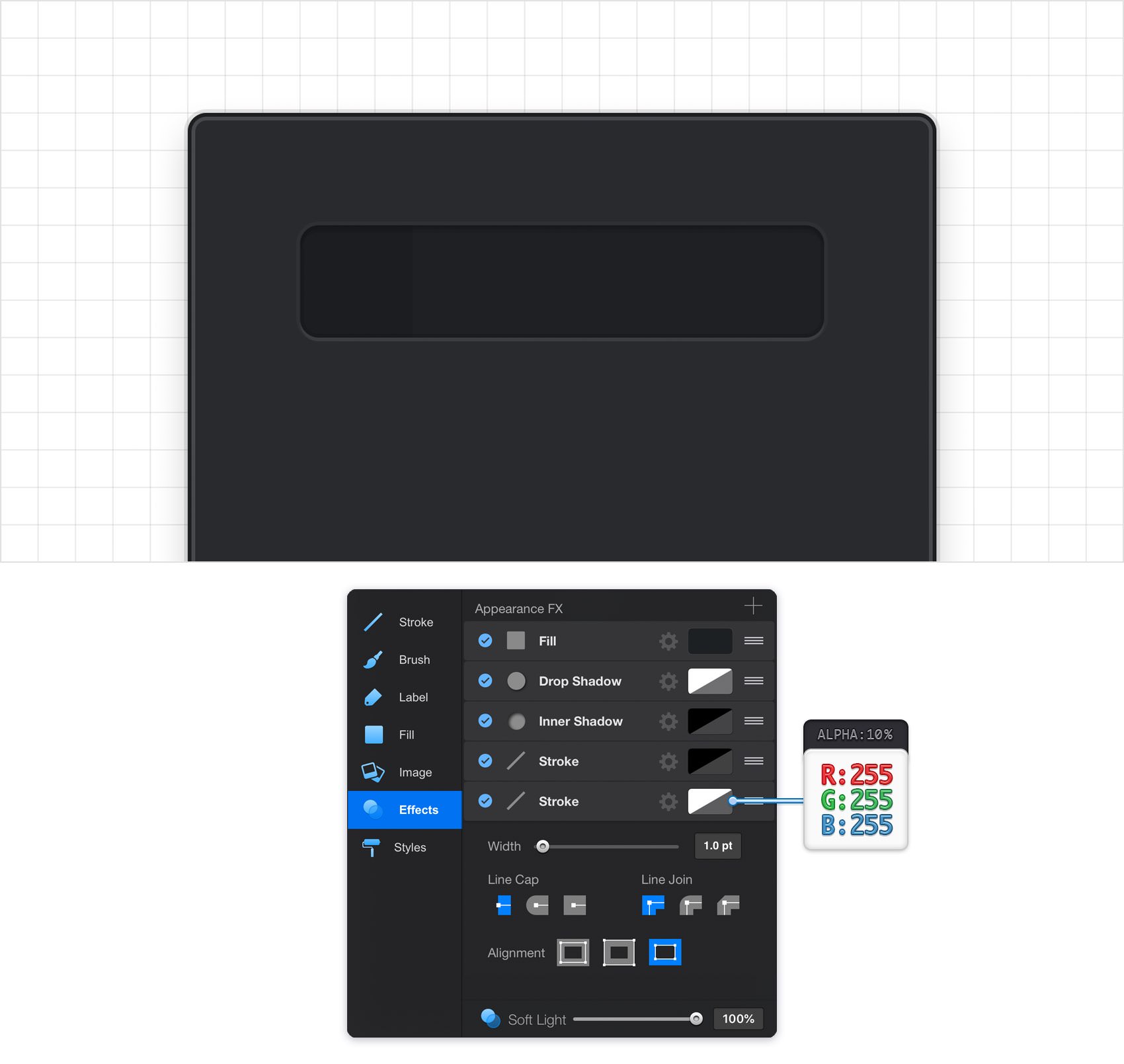

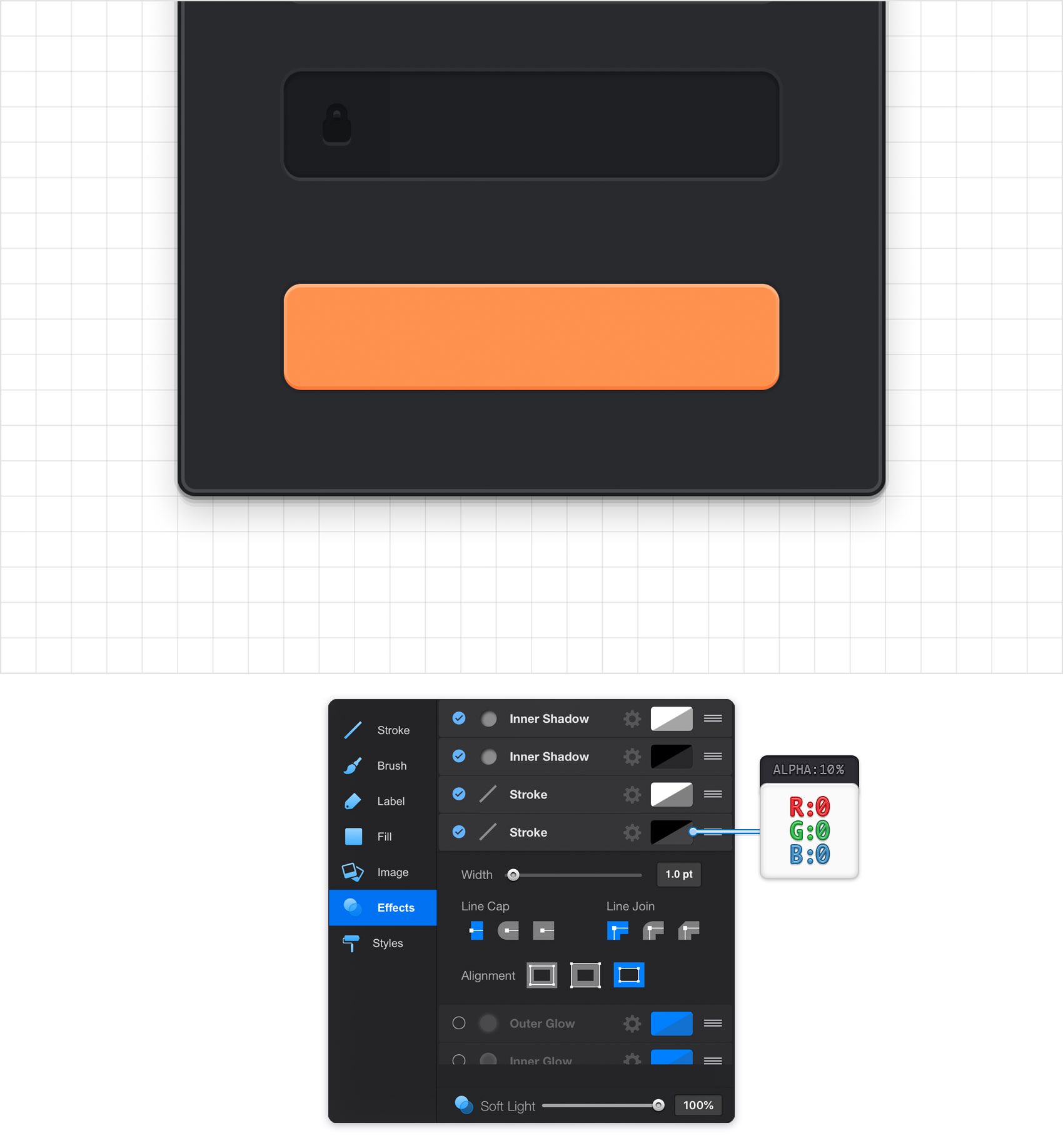

Make sure that your smaller, rounded rectangle is still selected, focus on the Effects pane and add a second Stroke. Drag it below the existing Stroke and then enter the attributes shown in the following image.

Step 21

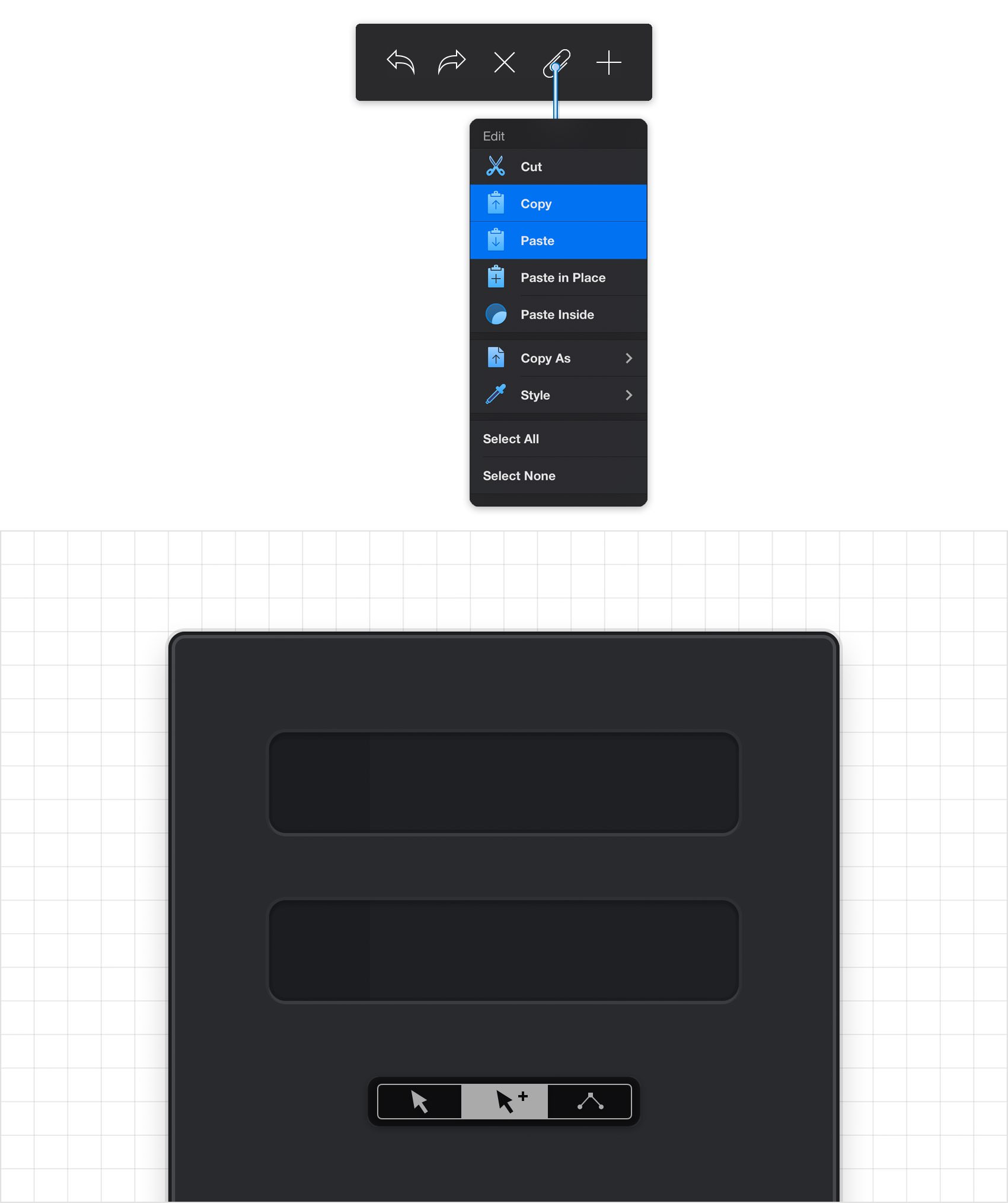

Pick the Path Selection Tool, focus on the tool pane and active the Add to Selection mode. Select your smaller, rounded rectangle along with that black, transparent shape and duplicate them using the Copy and Paste commands from the Edit pane. Select these copies and place them as shown in the second image.

Step 22

For this step you will need a grid every 1 px. Return to the Grid & Rulers pane, open the Grid Settings pane and enter 1 px for both Spacing boxes. Open the Layers pane, select your "_Icon_s" layer, and then tap and hold on its thumbnail to drag it above the other layer.

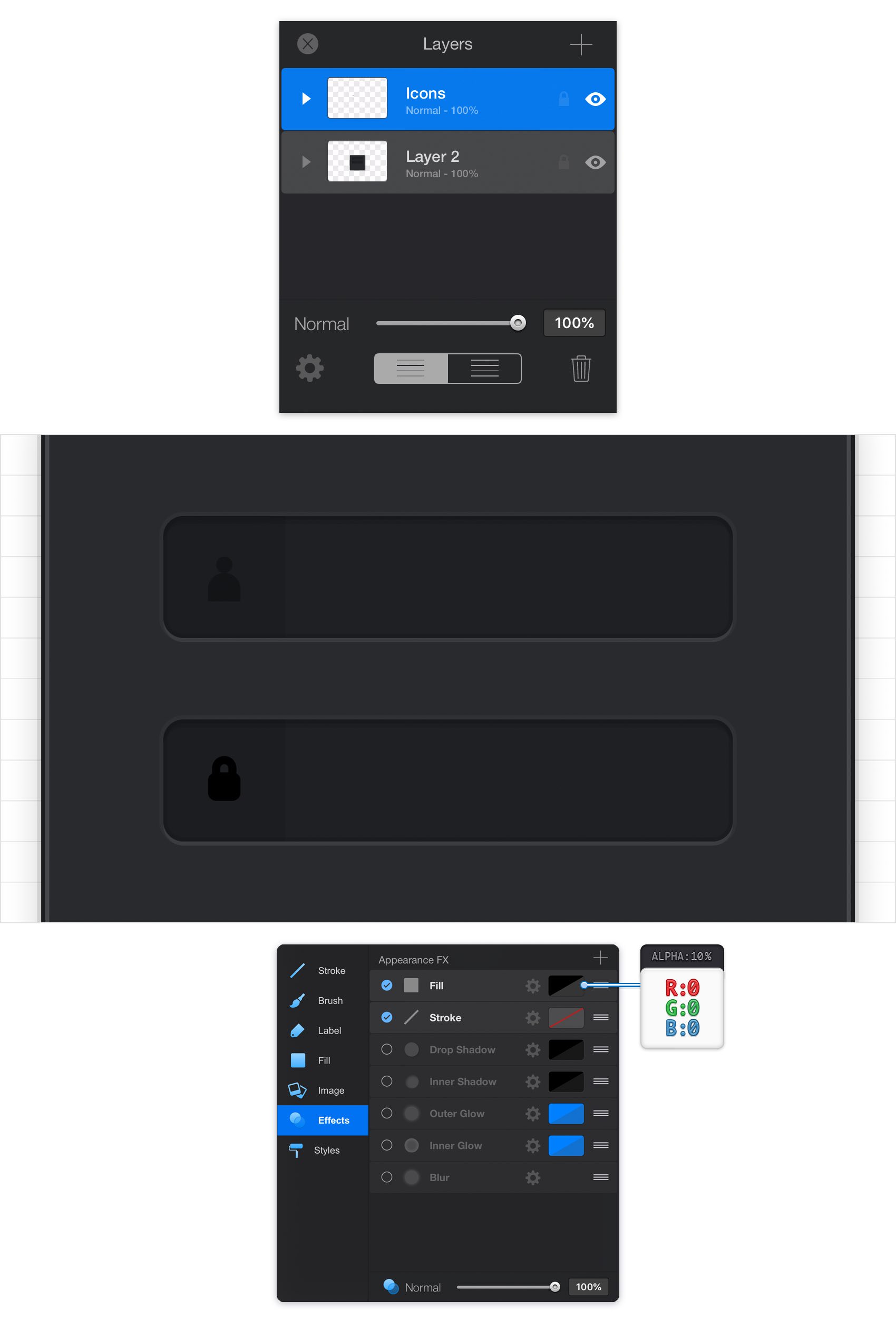

Make sure that your "_Icon_s" layer stays selected, close the Layers panel and pick the Move Tool. Place your tiny icon roughly as shown in the following image. Select only the lock icon and focus on the Effects pane. Tap the color well that stands for the Fill and drag the Alpha slider to 30%.

Step 23

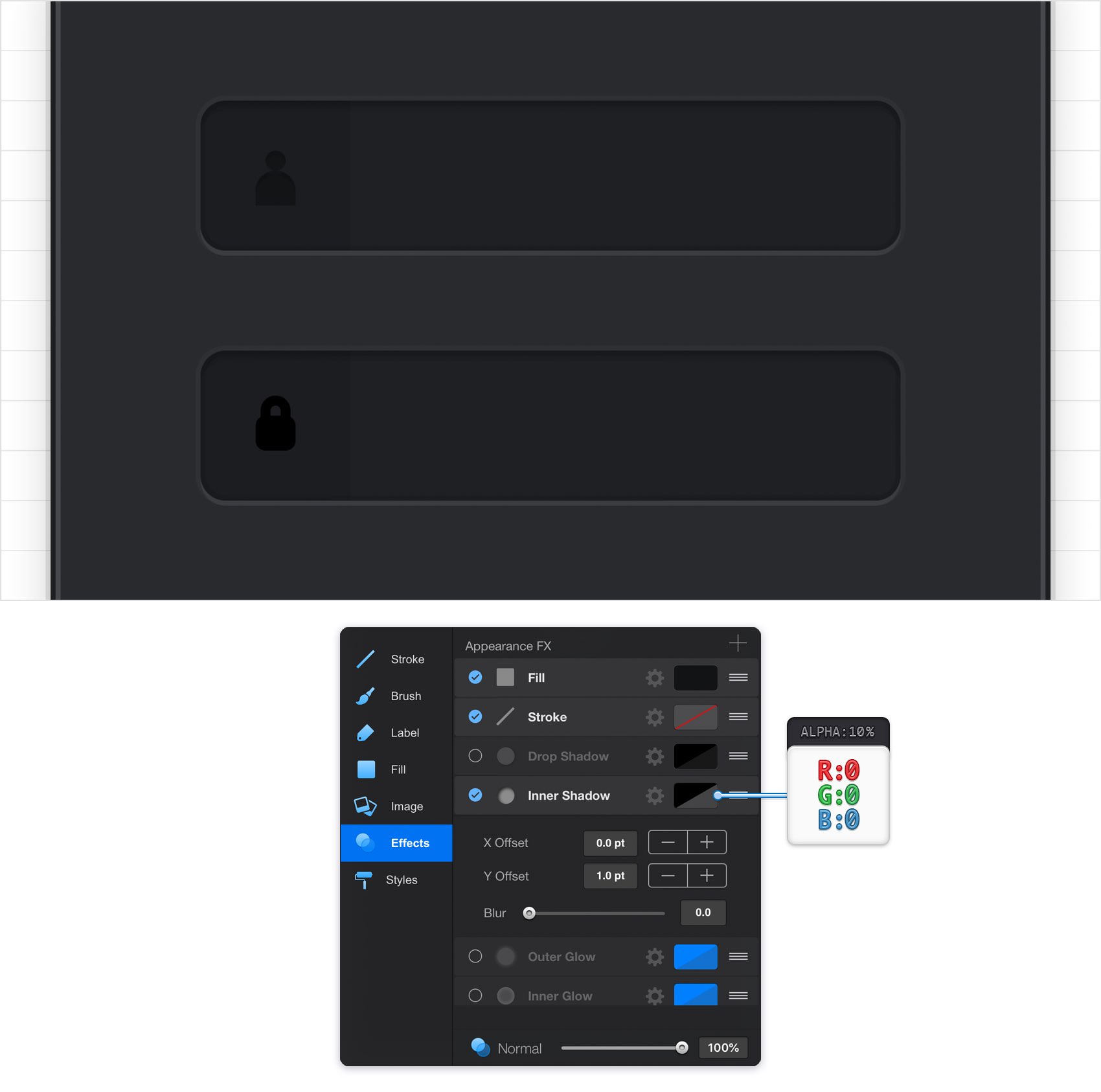

Make sure that your lock icon is still selected and focus on the Effects pane. Activate the existing Inner Shadow and enter the attributes shown in the following image.

Step 24

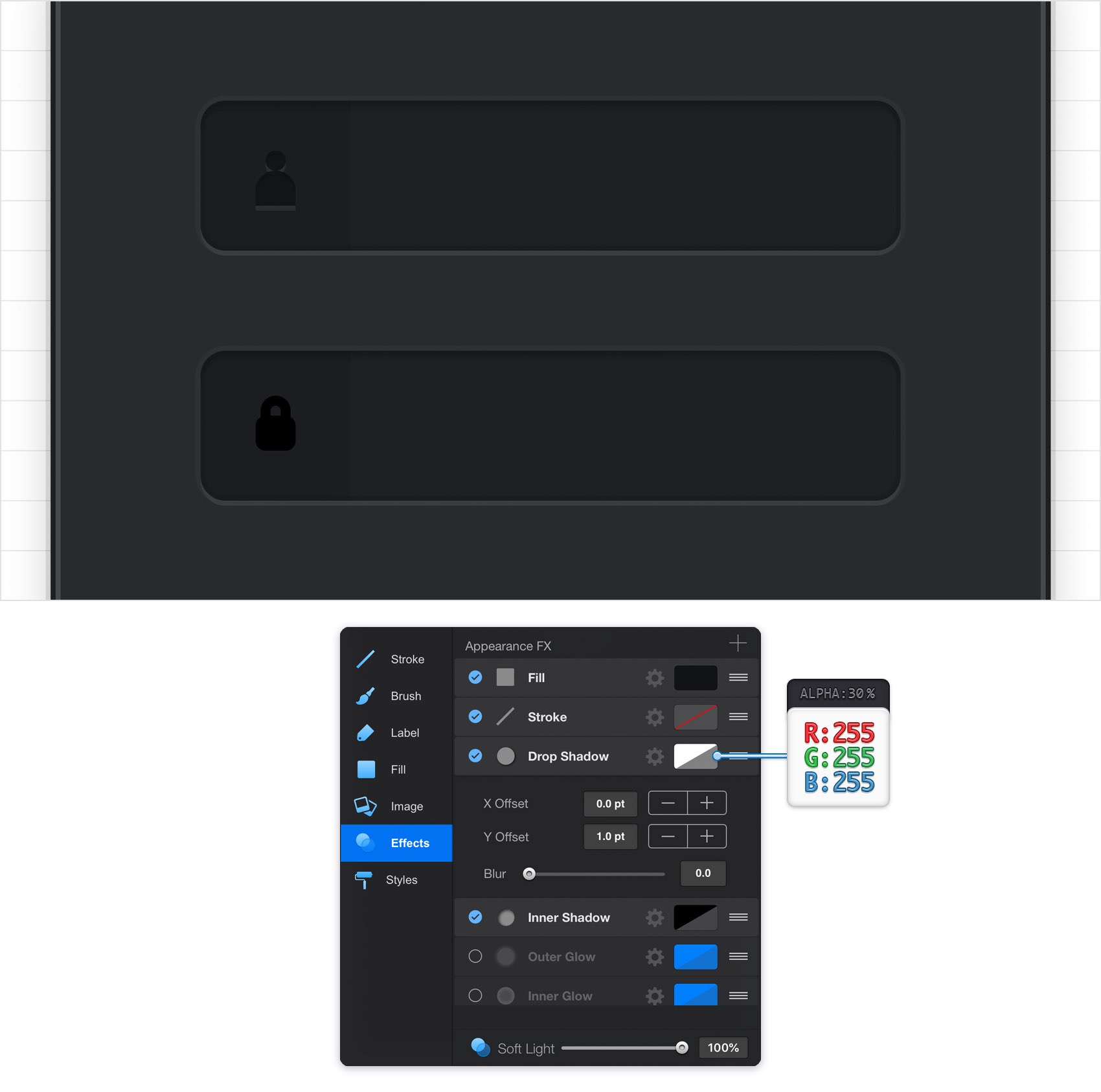

Make sure that your lock icon is still selected and focus on the Effects pane. Activate the existing Drop Shadow and enter the attributes shown in the following image.

Step 25

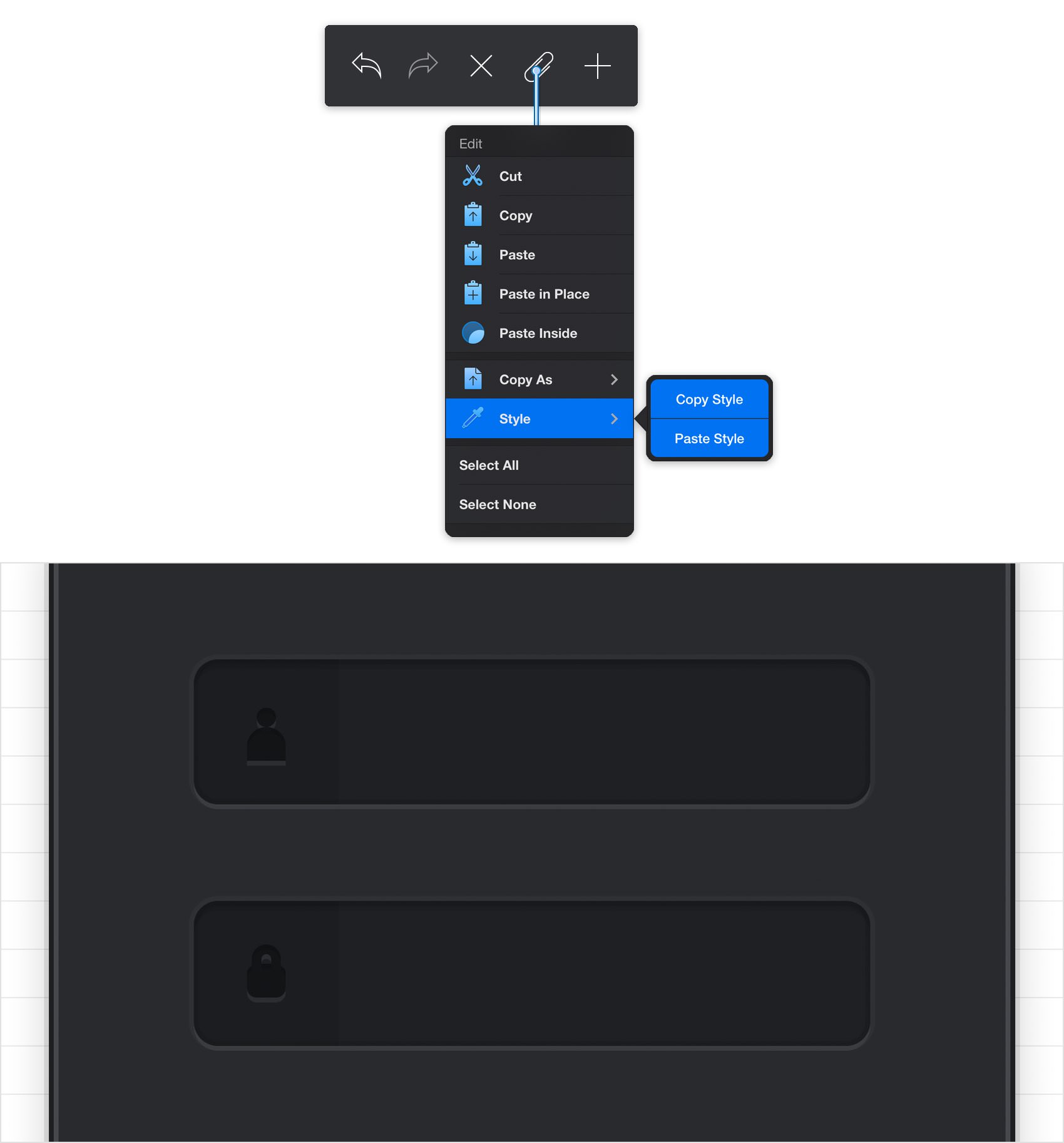

Make sure that your lock icon is still selected, get back to that Edit pane and tap the Copy Style command. Select the other icon, return to the Edit pane and tap the Paste Style command.

Step 26

Return to the Grid & Rulers pane, open the Grid Settings pane and enter 10 px for both Spacing boxes. Focus on your Toolbar, make sure that the Line is invisible and then set the Fill color to R=254 G=145 B=79.

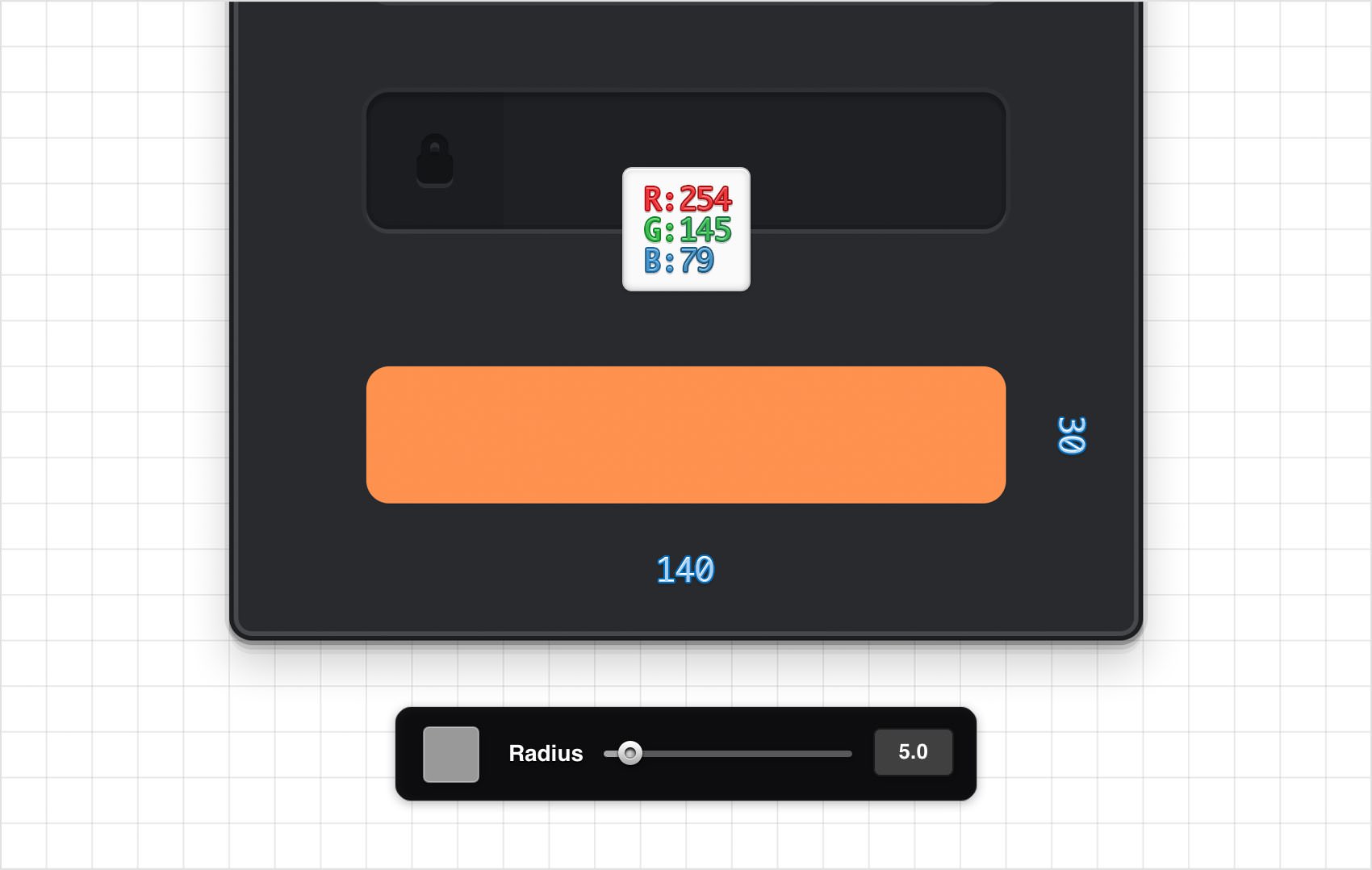

Pick the Rounded Rectangle Tool and make sure that the Radius is still set to 5. Create a 140 x 30 px shape and place it as shown in the following image.

Step 27

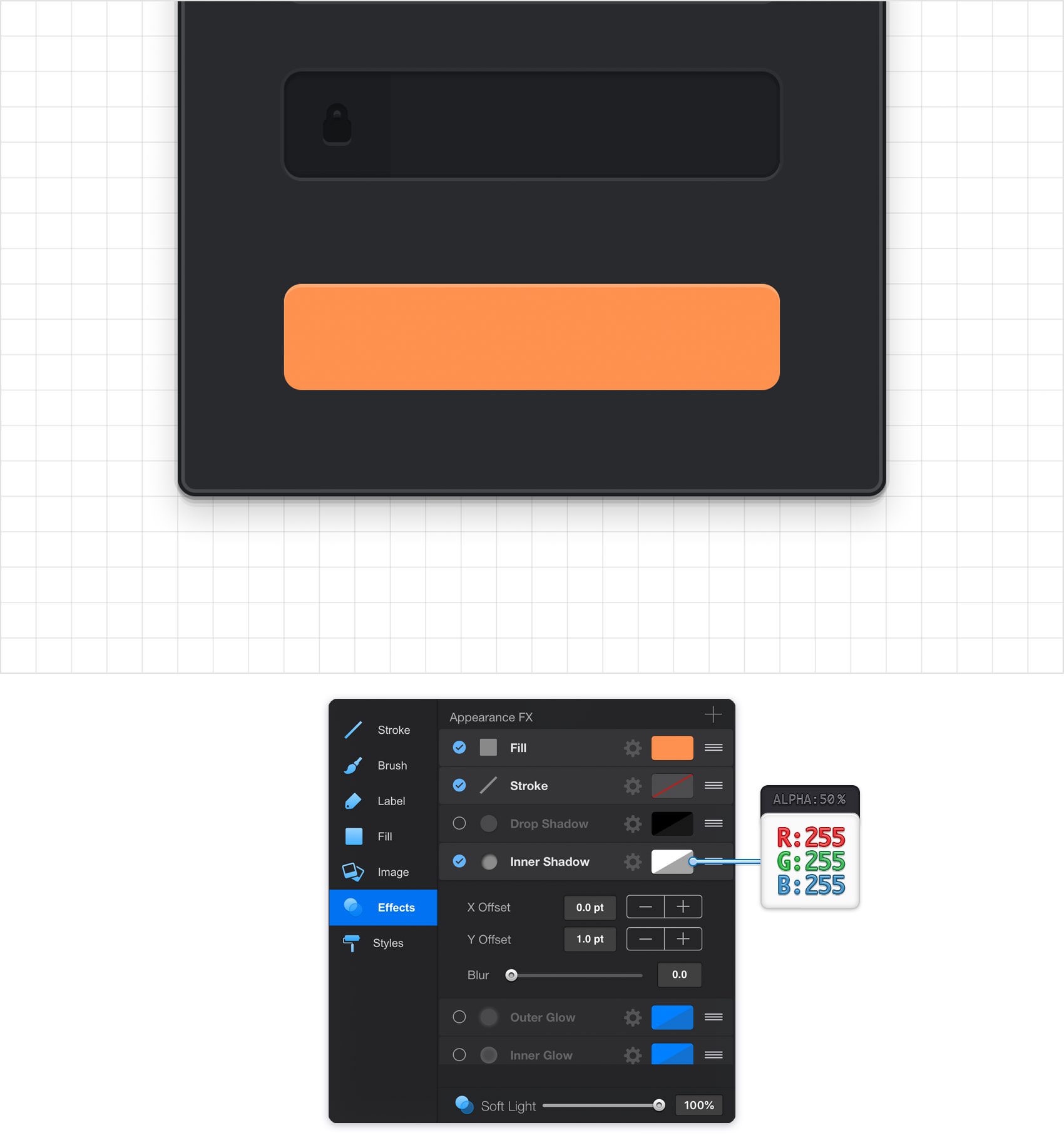

Make sure that your orange shape stays selected and focus on the Effects pane. Activate the existing Inner Shadow and enter the attributes shown in the following image.

Step 28

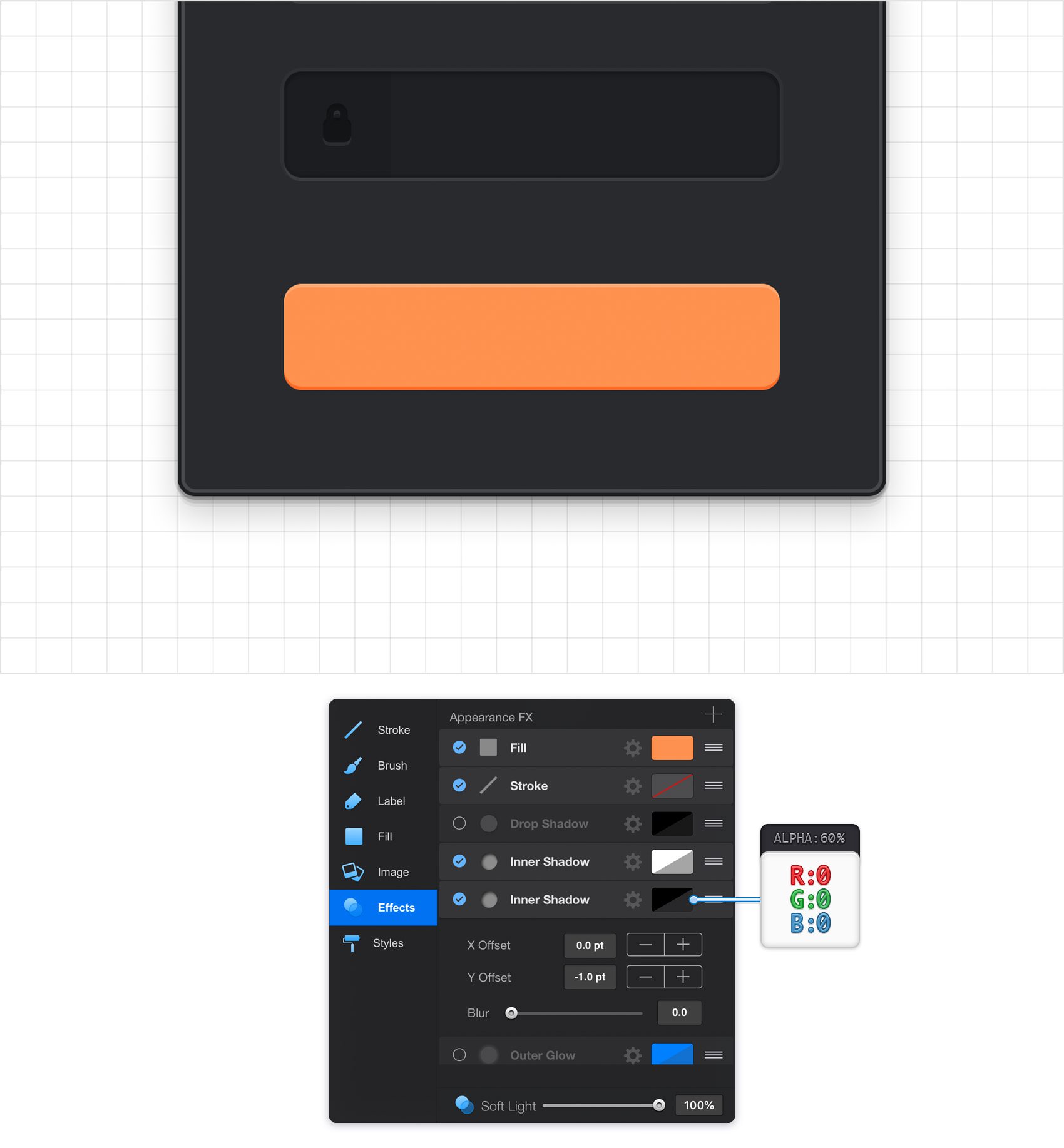

Make sure that your orange shape stays selected and focus on the Effects pane. Add a second Inner Shadow and enter the attributes shown in the following image.

Step 29

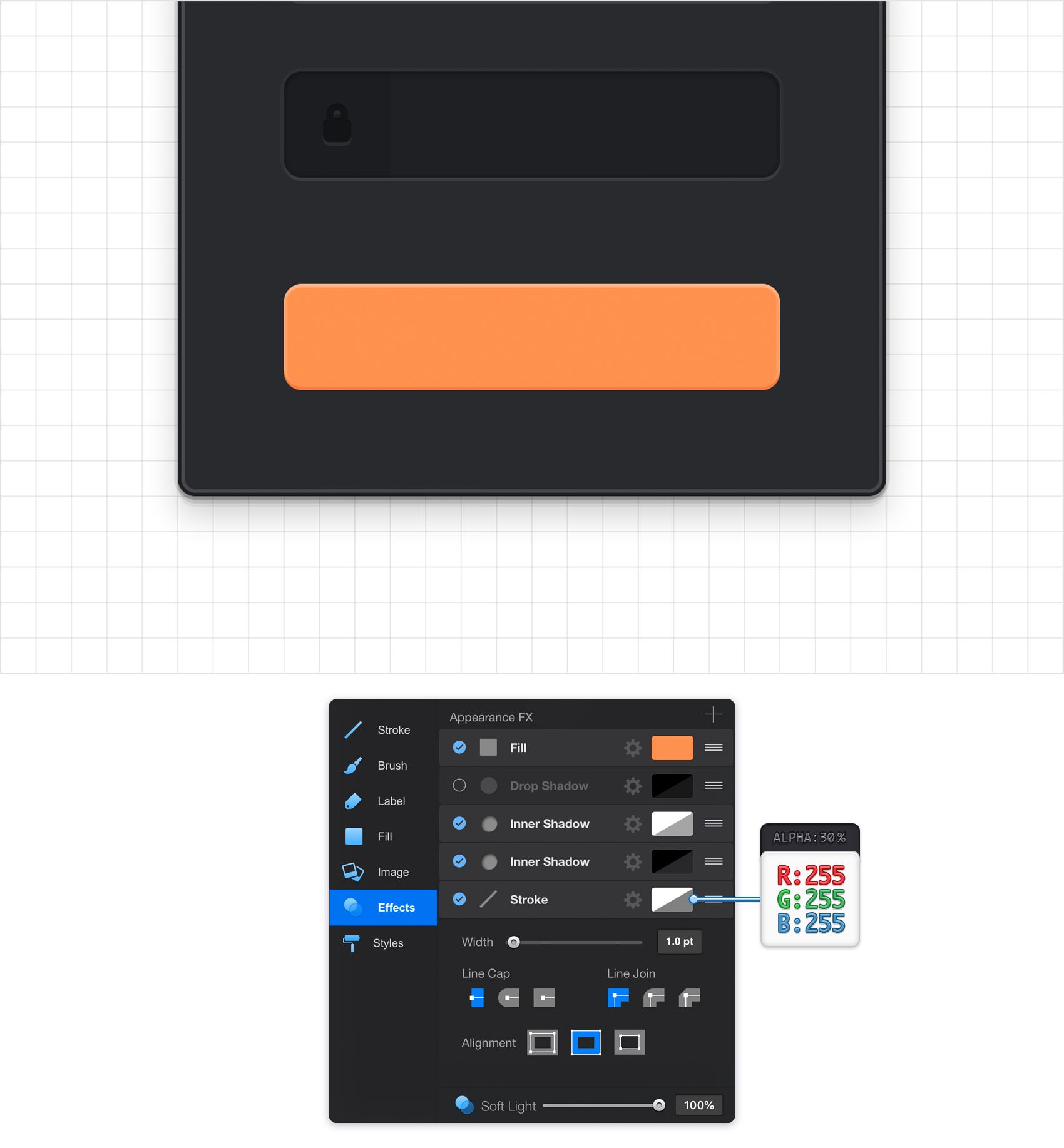

Make sure that your orange shape stays selected and focus on the Effects pane. Activate the existing Stroke, drag it below those active effects and then enter the attributes shown in the following image.

Step 30

Make sure that your orange shape stays selected, focus on the Effects pane and add a second Stroke. Drag it below that other Stroke and then enter the attributes shown in the following image.

Step 31

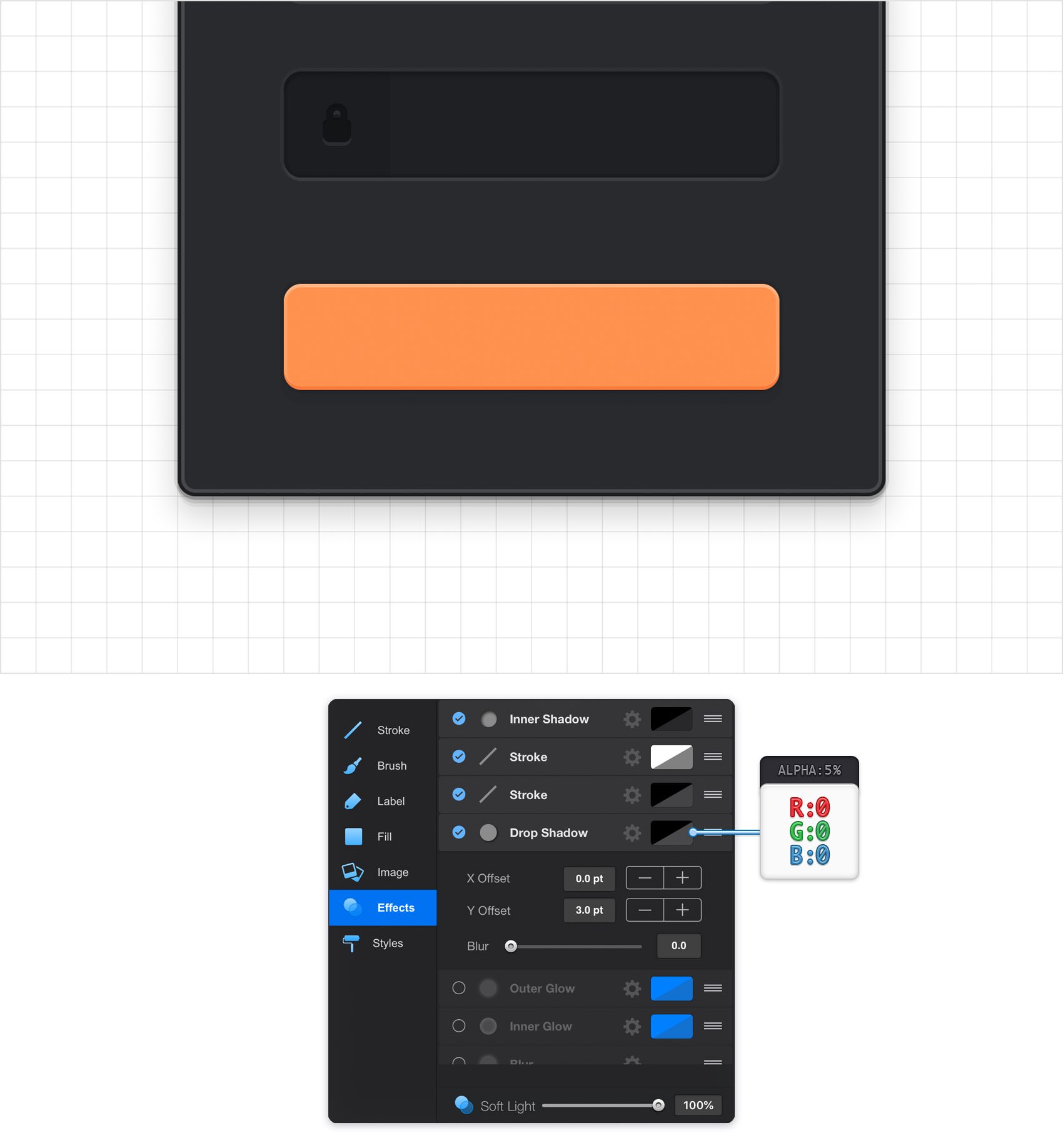

Make sure that your orange shape stays selected and focus on the Effects pane. Activate the existing Drop Shadow, drag it below the active effects and then enter the attributes shown in the following image.

Step 32

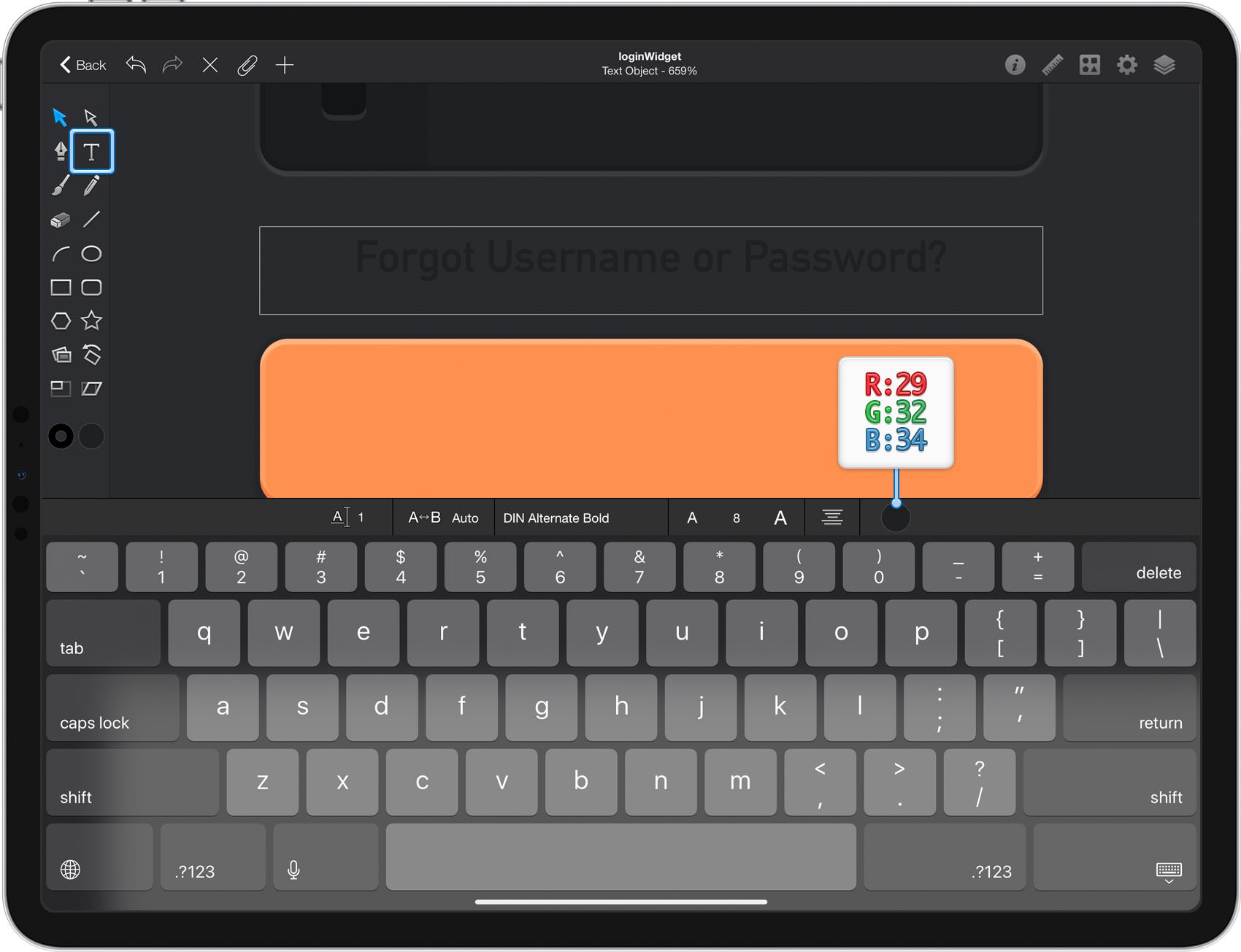

Select the Text Tool and double tap inside the newly made text field. Select the DIN Alternate Bold font, set the size to 8 and the color to R=29 G=32 B=34. Simply add the "Forgot Username or Password?" piece of text and place it about as shown in the following image using the Move Tool.

Step 33

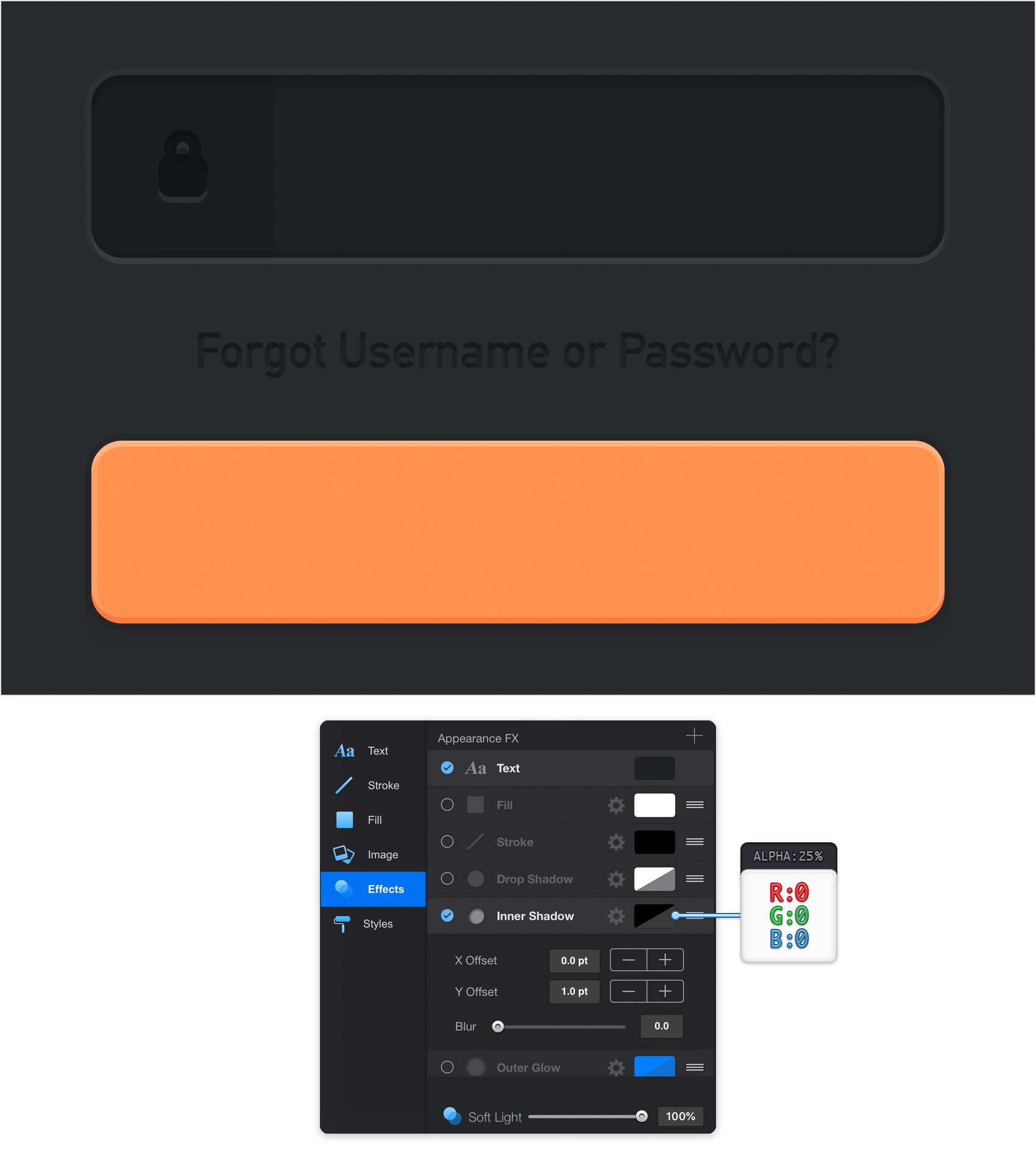

Make sure that your piece of text stays selected and focus on the Effects pane. Activate the existing Inner Shadow and enter the attributes shown in the following image.

Step 34

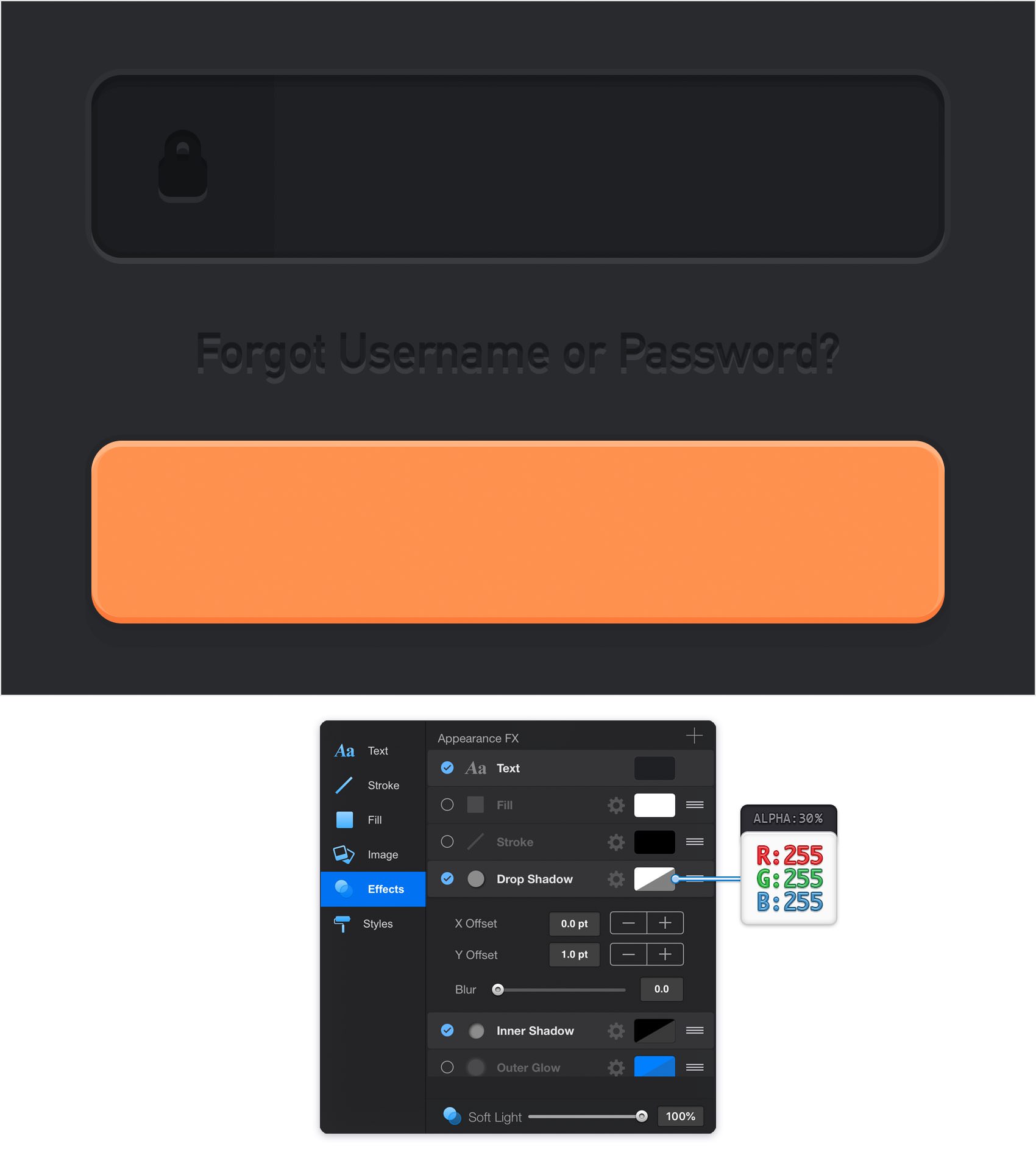

Make sure that your piece of text stays selected and focus on the Effects pane. Activate the existing Drop Shadow and enter the attributes shown in the following image.

Step 35

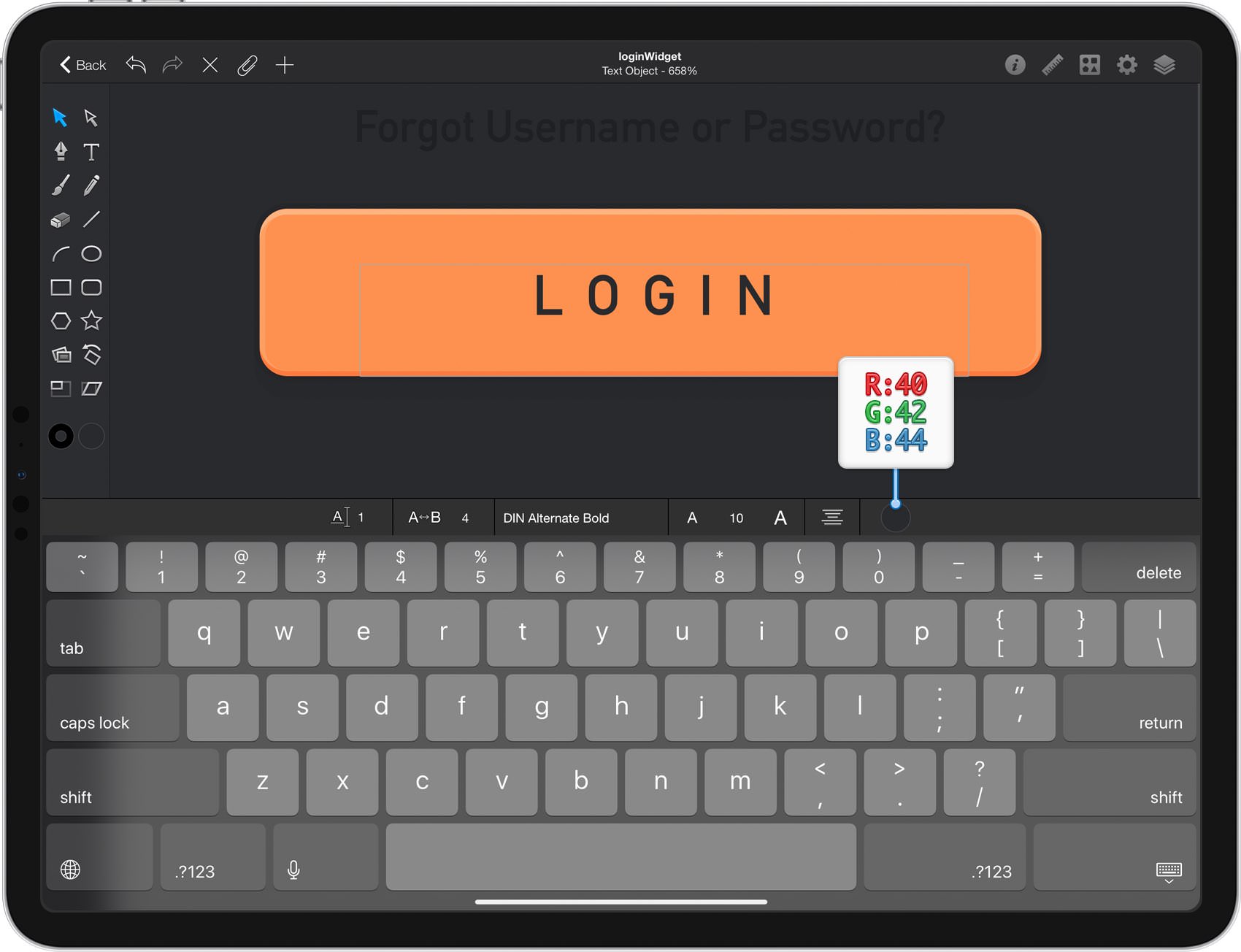

Reselect the Text Tool and double tap inside the newly made text field. Select that same font, set the size to 10 and the spacing to 4. Tap the color well and replace the existing color with R=40 G=42 B=44 and then add the "LOGIN" piece of text. Using the Move Tool, select your new piece of text and place it roughly as shown in the following image.

Step 36

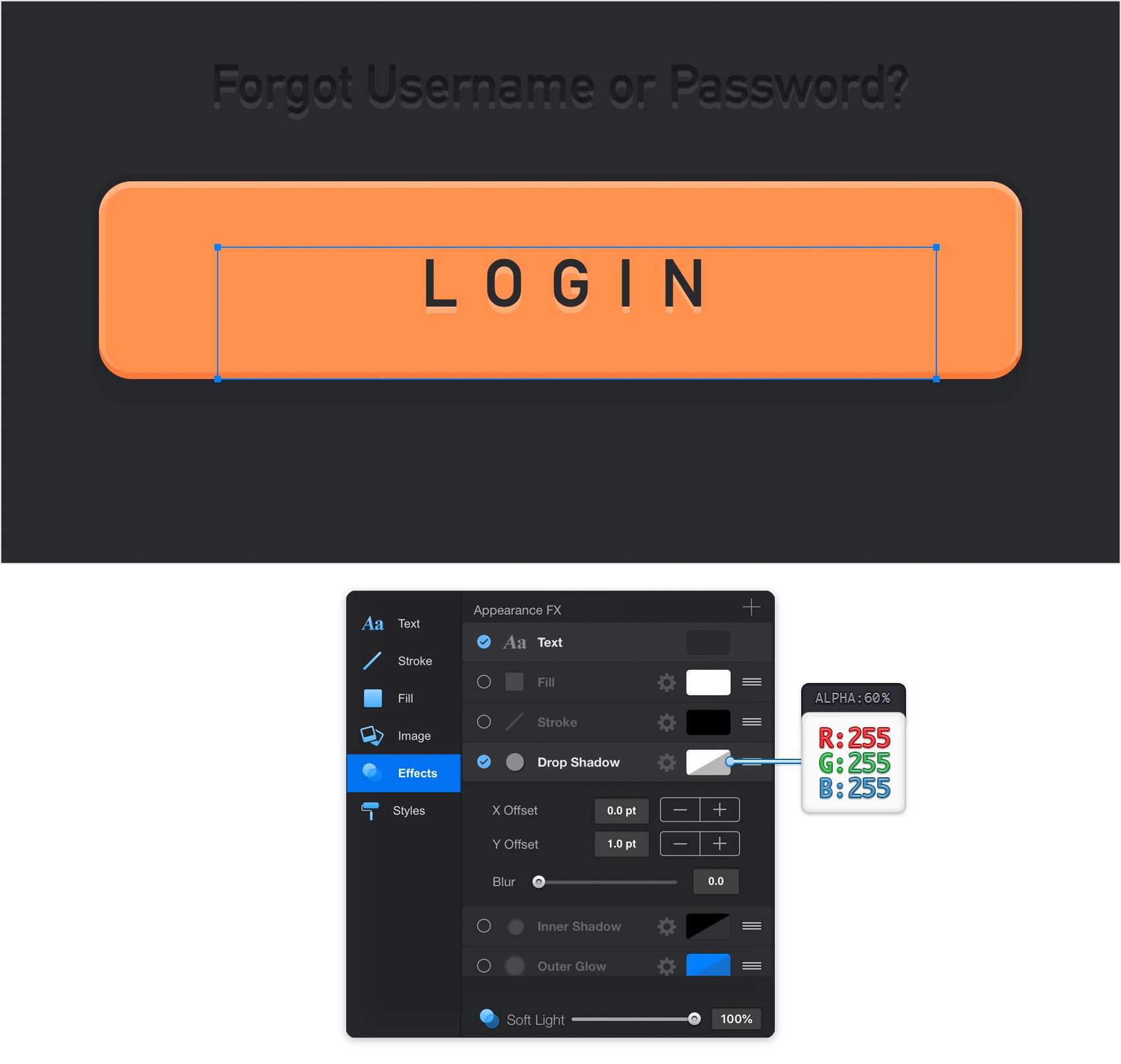

Make sure that your "LOGIN" piece of text stays selected and focus on the Effects pane. Activate the existing Drop Shadow and enter the attributes shown in the following image.

Step 37

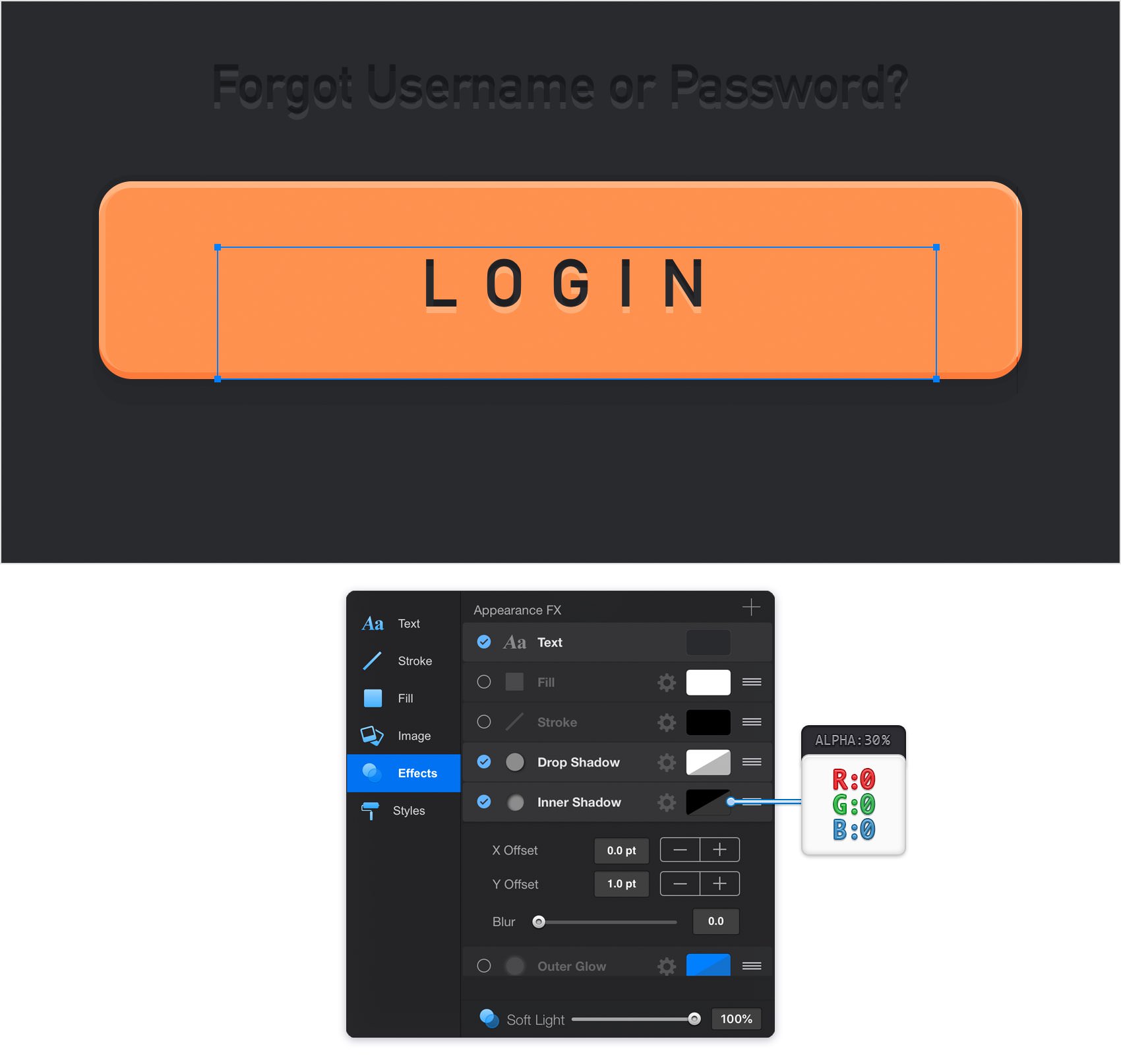

Make sure that your "LOGIN" piece of text stays selected and focus on the Effects pane. Activate the existing Inner Shadow and enter the attributes shown in the following image.

Finished Design

Congratulations, you've finished the tutorial!

Hope you've enjoyed learning some of the techniques and processes presented in these steps. As always, feel free to adjust the final design and make it your own.

Graphic File: loginwidget.idraw
